Name: Floor and Area Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 2405

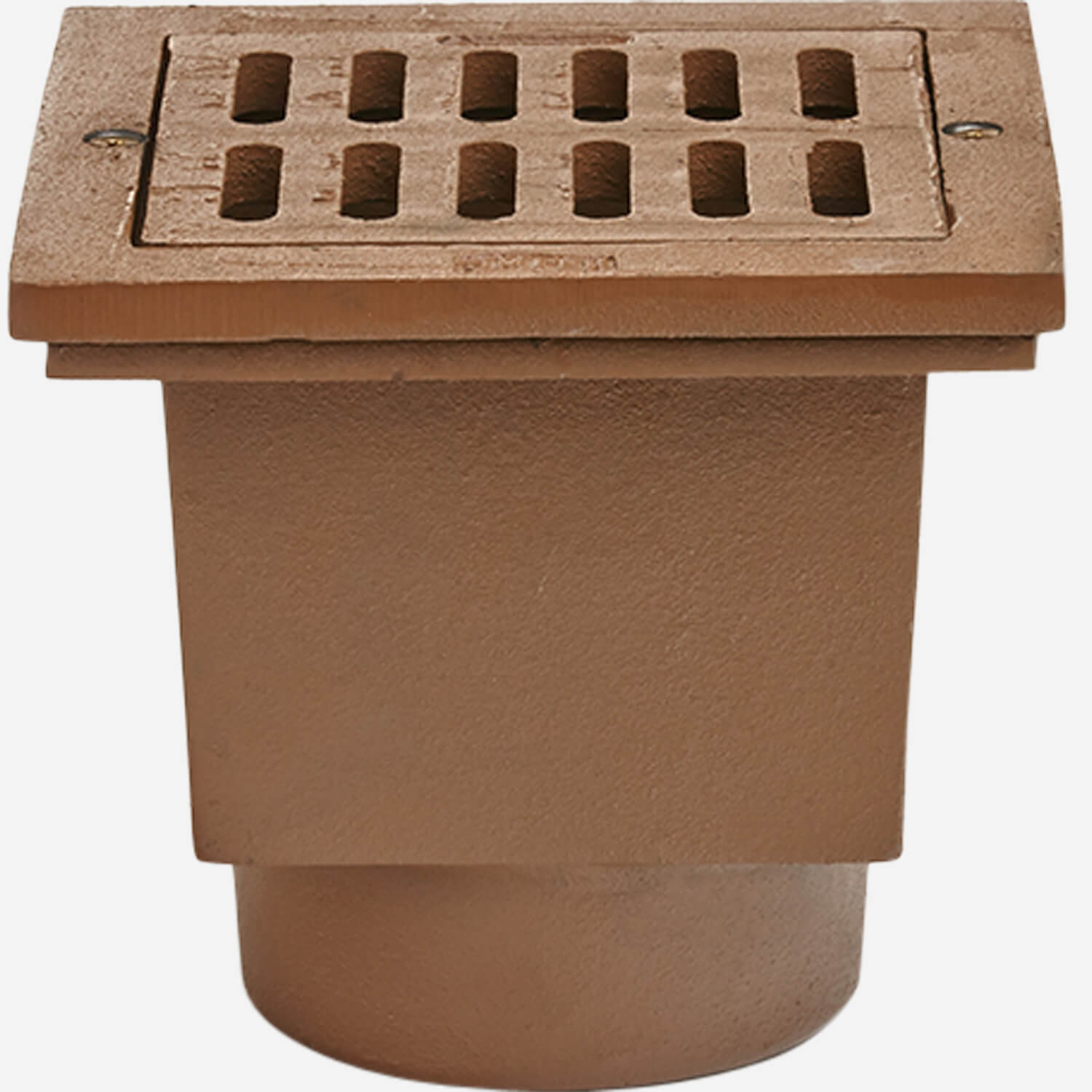

Model 2405

Floor and Area Drain

This Duco cast iron floor drain has a 7" square tilting grate for easy cleanout and is perfect for installation where small wastewater volumes are anticipated and a rectangular design is preferred. Additional options include a protective sediment bucket for areas where debris must be kept from entering the drainage systems.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
BIM/CAD/Revit	2405 Floor Drain (dwg)	DWG 2405 Floor Drain	20 KB
Submittals	Submittal 2405 Floor Drain	Submittal 2405 Floor Drain	246 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Technical Data Sheets	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Parts Manuals	Parts Order Guide for Floor Drains (pdf)	Parts Order Guide for Floor Drains	6 MB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Vandal Proof Grate - U, Sediment Bucket -B, Loose Set Grate -LSG, (2) 3/8” (10) Tappings -TAP
Optional Materials	Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
Product Type	Floor Drain
