Blood and Water Floor Drains

Name: Blood and Water Floor Drains
Brand: Jay R. Smith Mfg. Co.
SKU: 2640

Find A Representative

Figure 2640

Submittal

Submittal 2640 Floor Drain (pdf)

Model 2640

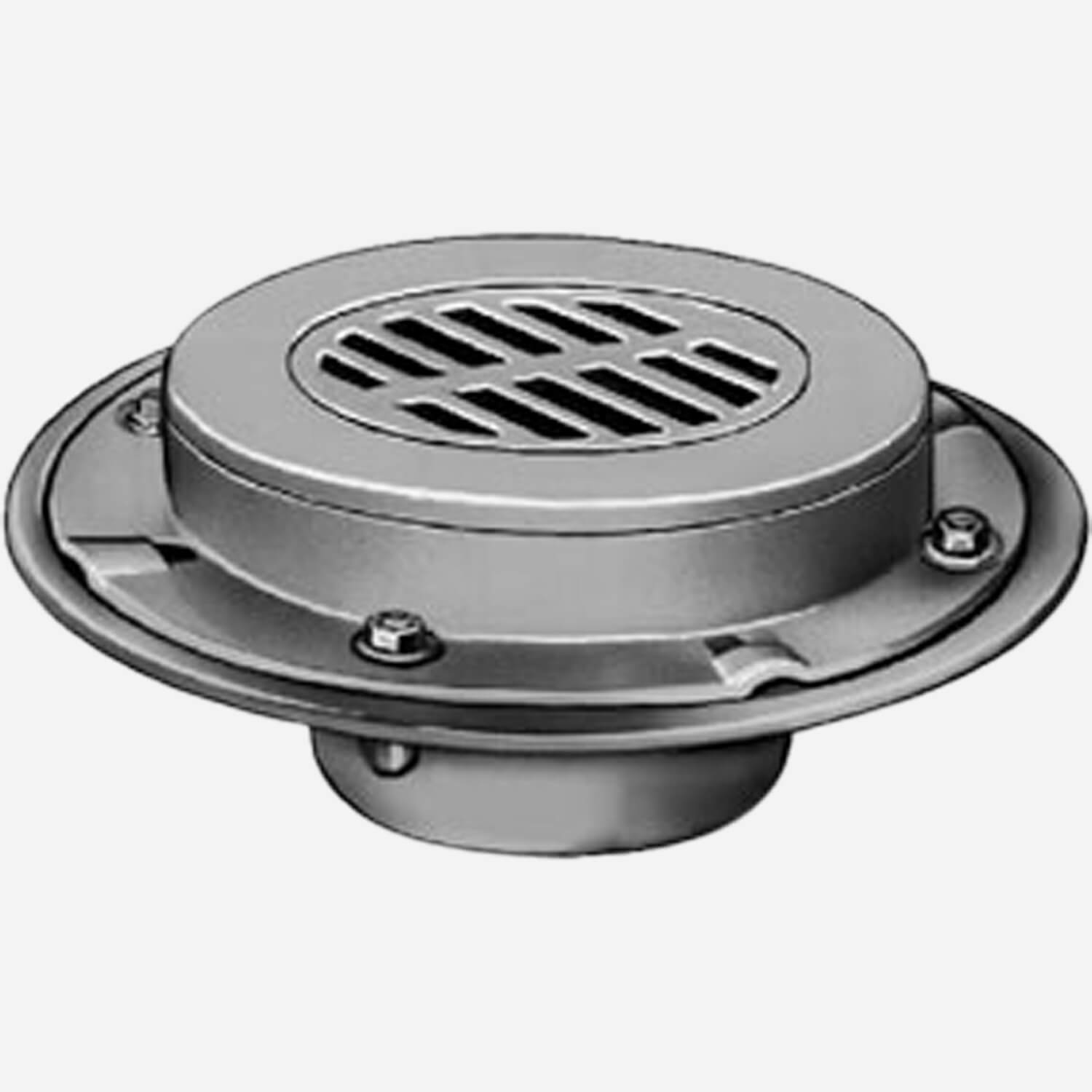

Blood and Water Floor Drains

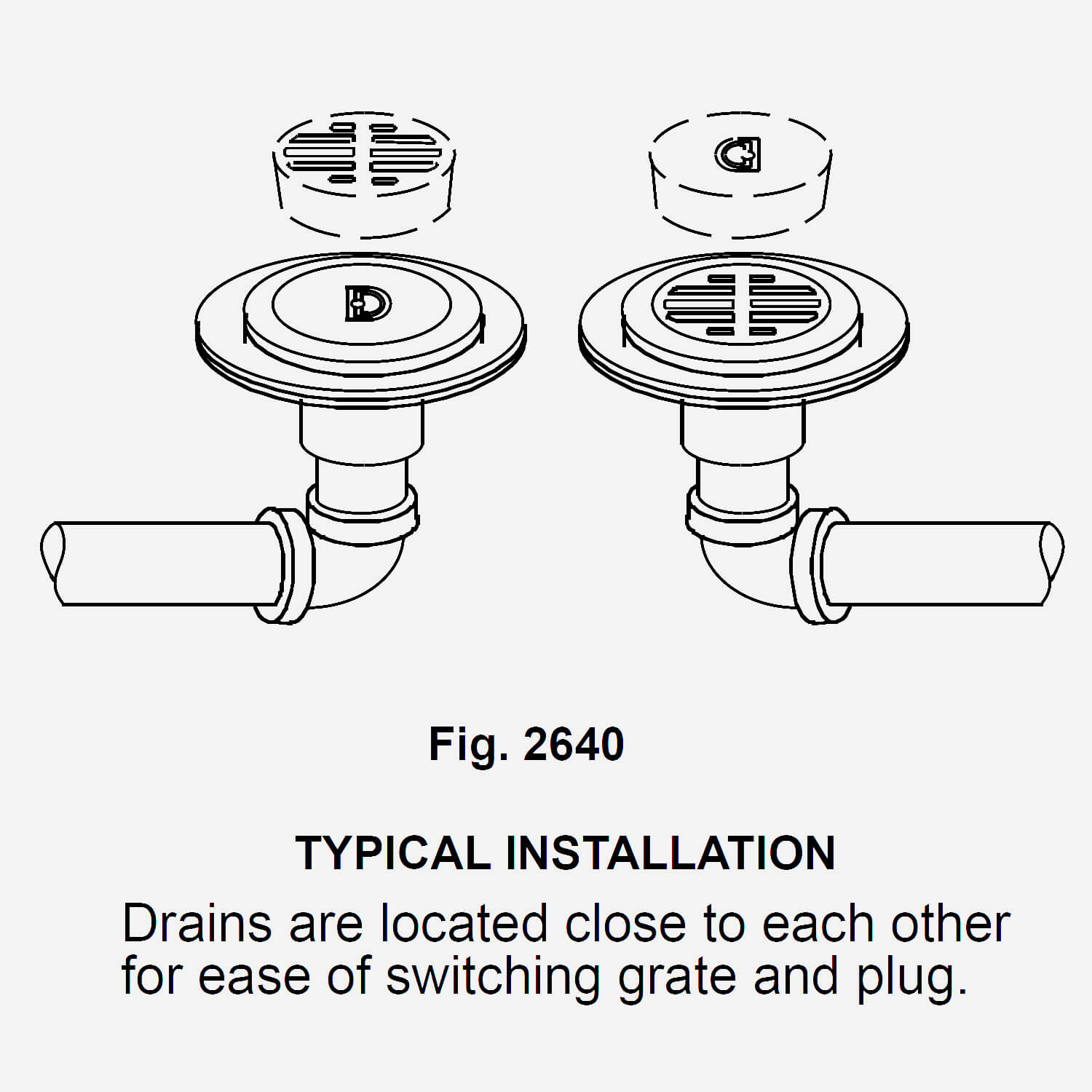

Available in pairs designed for installation in packing house slaughtering areas, these 12" diam. Duco coated cast iron drains permit separate drainage of animal blood and wastewater. They are supplied with both a drain plug and a slotted grate. During slaughtering, the grate covers the drain connected to the blood storage tank and the sewer drain is plugged. During area wash down, the grate and plug are reversed keeping water from entering blood storage tank.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 2640 Floor Drain (pdf)	Blood and Water Floor Drain [2640C \| Caulk Outlet; 2640T \| Threaded Outlet; 2640Y \| No-Hub Outlet]	518 KB
Drawings	2640 Floor Drain (dwg)	Blood and Water Floor Drain [2640C \| Caulk Outlet; 2640T \| Threaded Outlet; 2640Y \| No-Hub Outlet]	66 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB
Manuals	Technical Data for Floor Drains (pdf)	Technical Data for Floor Drains	637 KB
Ordering	Order Guidelines for Floor Drains (pdf)	Order Guidelines for Floor Drains	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
Optional Materials	Bronze Grate and Plug -RB, Galvanized Cast Iron -G
Product Type	Floor Drain

Models

Two (2) Duco Cast Iron Bodies with Flashing Collar and Bronze Rim, Cast Iron ADA Grate and Ground Joint Plug.

Bottom Outlet
2640C | Caulk Outlet
2640T | Threaded Outlet
2640Y | No-Hub Outlet

Blood and Water Floor Drains
