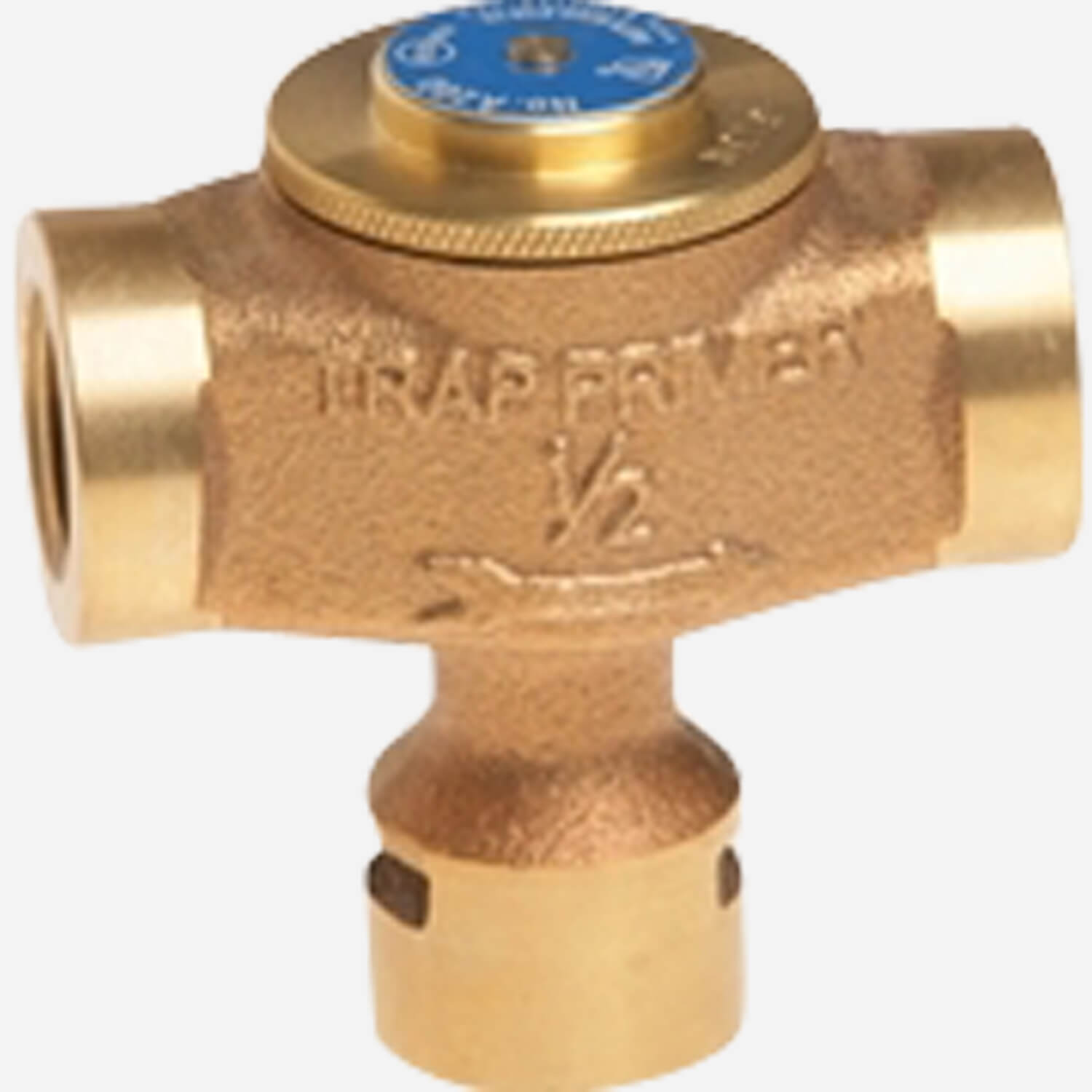

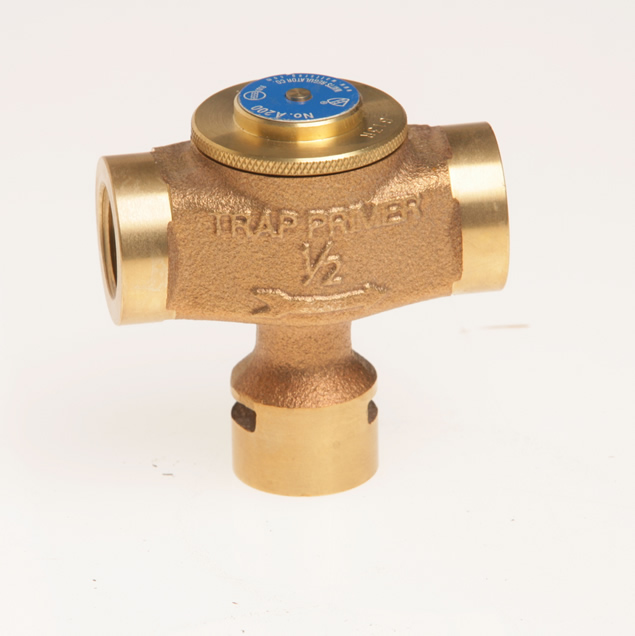

Model 2699LF
Lead-Free Automatic Trap Primer
This lead-free cast bronze trap primer automatically refills drain traps that open due to evaporation of the water seal from infrequent use of the drain or fixture. An open drain trap permits sewer gases to enter the facility. This primer is fitted with an anti siphon port to prevent trap water from back flowing in to system potable water supply.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Lead-Free Automatic Trap Primer [2699LF | 1/2" NPT Female; 2699-1LF | 1/2" Copper Sweat]; Install Instructions provided on 2nd page | 996 KB | |||
 | | Lead-Free Automatic Trap Primer | 0 | 123 KB | ||
 | | Lead-Free Automatic Trap Primer | 0 | 252 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | Automatic Trap Primer | 0 | 70 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB | ||
 | | Trap Seal Device vs the Competition HD | 0 | 132 KB |
Specifications
| Optional Materials | Satin Finish Chrome Plated -CP |
| Product Type | Floor Drain |
| Compliance/Certifications | Lead Plumbing Law certified by IAPMO R & T, NSF 372, ASSE |
Models
The figure numbers are defined with the connection provided.
Figure 2699LF
1/2" NPT Female
Figure Number 2699-1LF
1/2" Copper Sweat
Answers
How many drains can a figure2699 trap primerserve?
Anonymous
One
