Floor Drains With Adjustable Strainer Heads and Varying Trap Options
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Floor or Shower Drains with Adjustable Strainer Heads [2020, 2021 | Shallow Trap -Side Outlet; 2030, 2031 | Deep Trap - Side Outlet; 2040, 2041 | Deep Trap with Floor Cleanout - Side Outlet] | 4 MB | |||
 | | Floor or Shower Drains with Adjustable Strainer Heads [Figure 2020 | Shallow Trap -Side Outlet; 2030 | Deep Trap - Side Outlet; 2040 | Deep Trap with Floor Cleanout - Side Outlet] | 0 | 113 KB | ||
 | | Floor or Shower Drains with Adjustable Strainer Heads [2020, 2021 | Shallow Trap -Side Outlet] | 0 | 460 KB | ||
| | Floor or Shower Drains with Adjustable Strainer Heads [2030, 2031 | Deep Trap - Side Outlet] | 0 | 740 KB | ||
| | Floor or Shower Drains with Adjustable Strainer Heads [2040, 2041 | Deep Trap with Floor Cleanout - Side Outlet] | 0 | 492 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Technical Data for Floor Drains | 0 | 637 KB | ||
| | Parts Order Guide for Floor Drains | 0 | 6 MB | ||
| | Optional Strainer Heads [Suffixes -A, -AV, -B, -BS, -C, -D-E,-F, -F37, -F38, -G, -H, -J, -K, -L, -M, -N, -P,-R, -T, -V, -W, -X, -Y, -Z, -69] applicable on Figures 2005, 2010, 2020, 2038, 2095 | 0 | 451 KB | ||
| | Order Guidelines for Floor Drains | 0 | 120 KB |
Specifications
| Variations | Ball Float Backwater Valve -BFV, High Auxiliary Inlet -NH 1 1/2(38), 2"(51), Hinged Grate -H, Low Auxiliary Inlet -NL, Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Bronze Body -BB, Chrome Plated Strainer -CP, Galvanized Cast Iron Body -G, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer |
| Product Type | Floor Drain |
Models
Floor or Shower Drains with Side Outlets Adjustable Strainer Heads

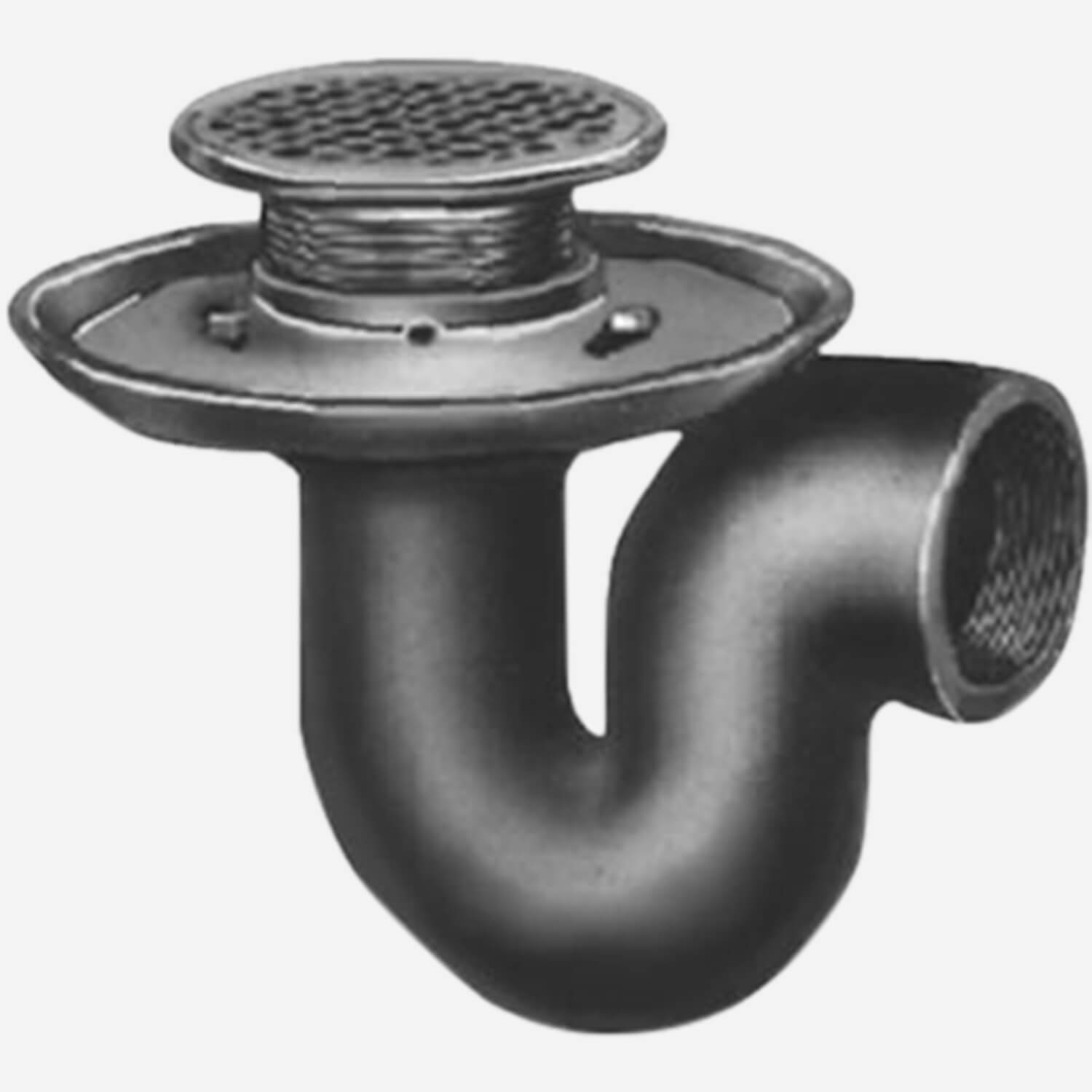

2020T | Shallow Trap - Threaded Outlet
2021S | Shallow Trap - Spigot Outlet

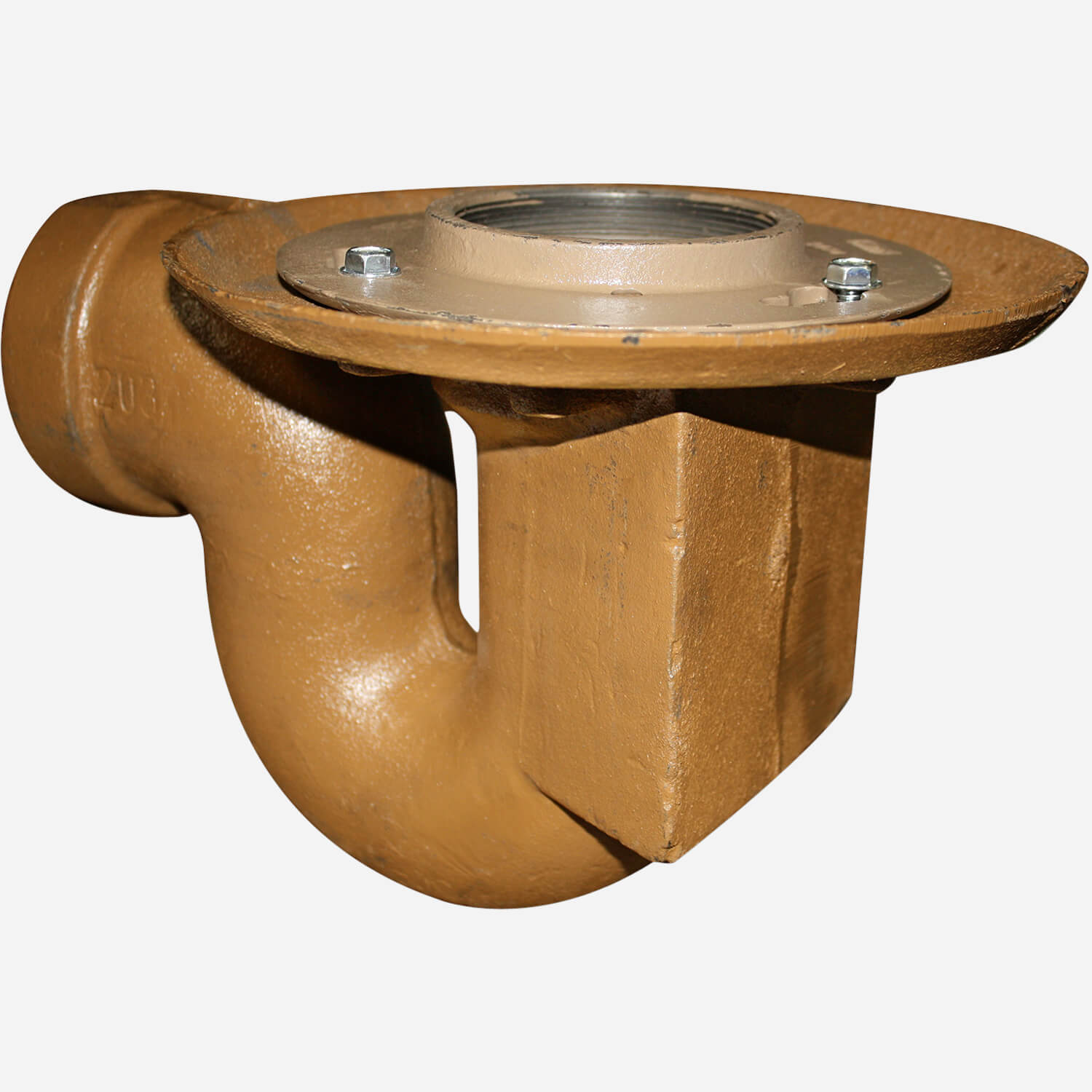

2030T | Deep Trap - Threaded Outlet
2031S | Deep Trap - Spigot Outlet

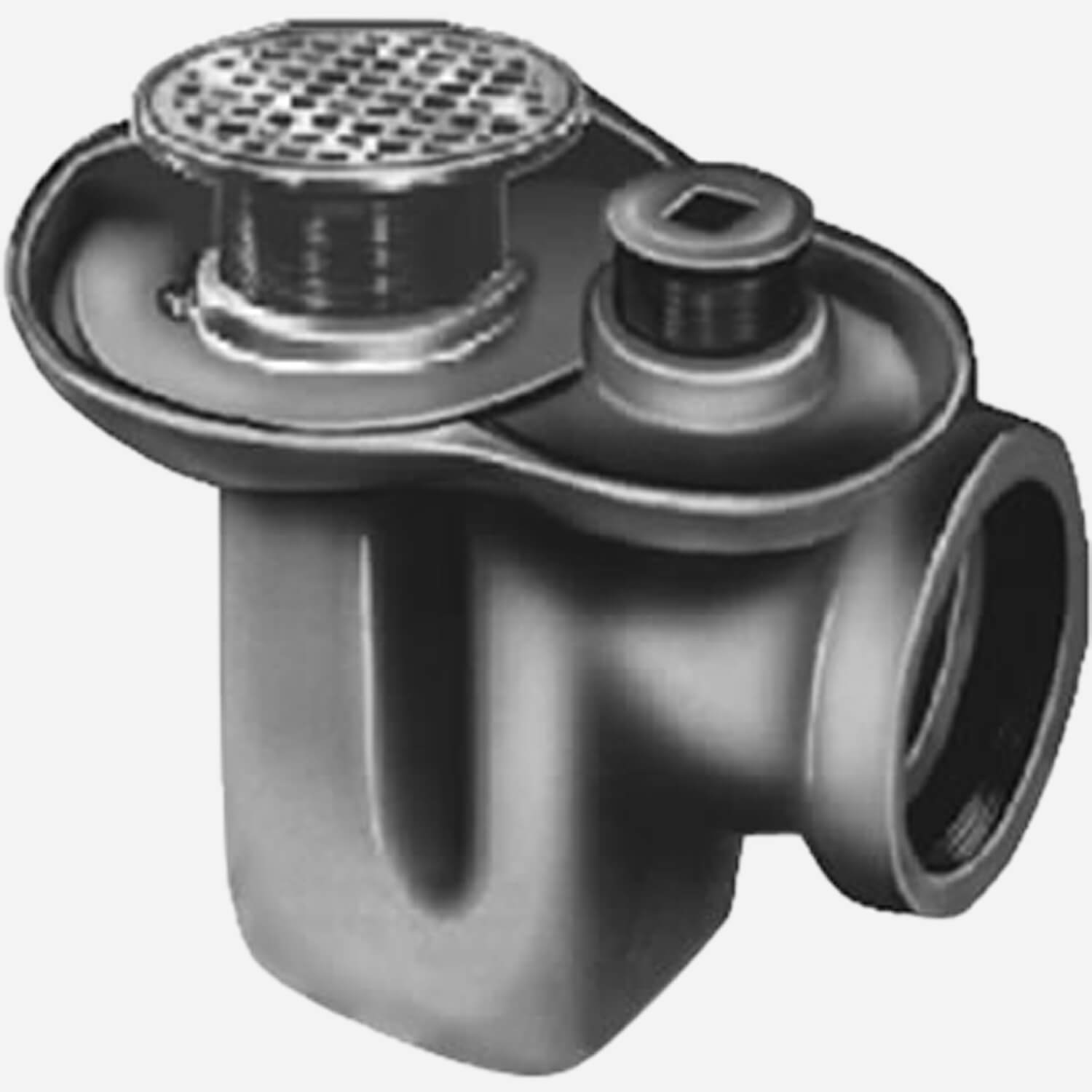

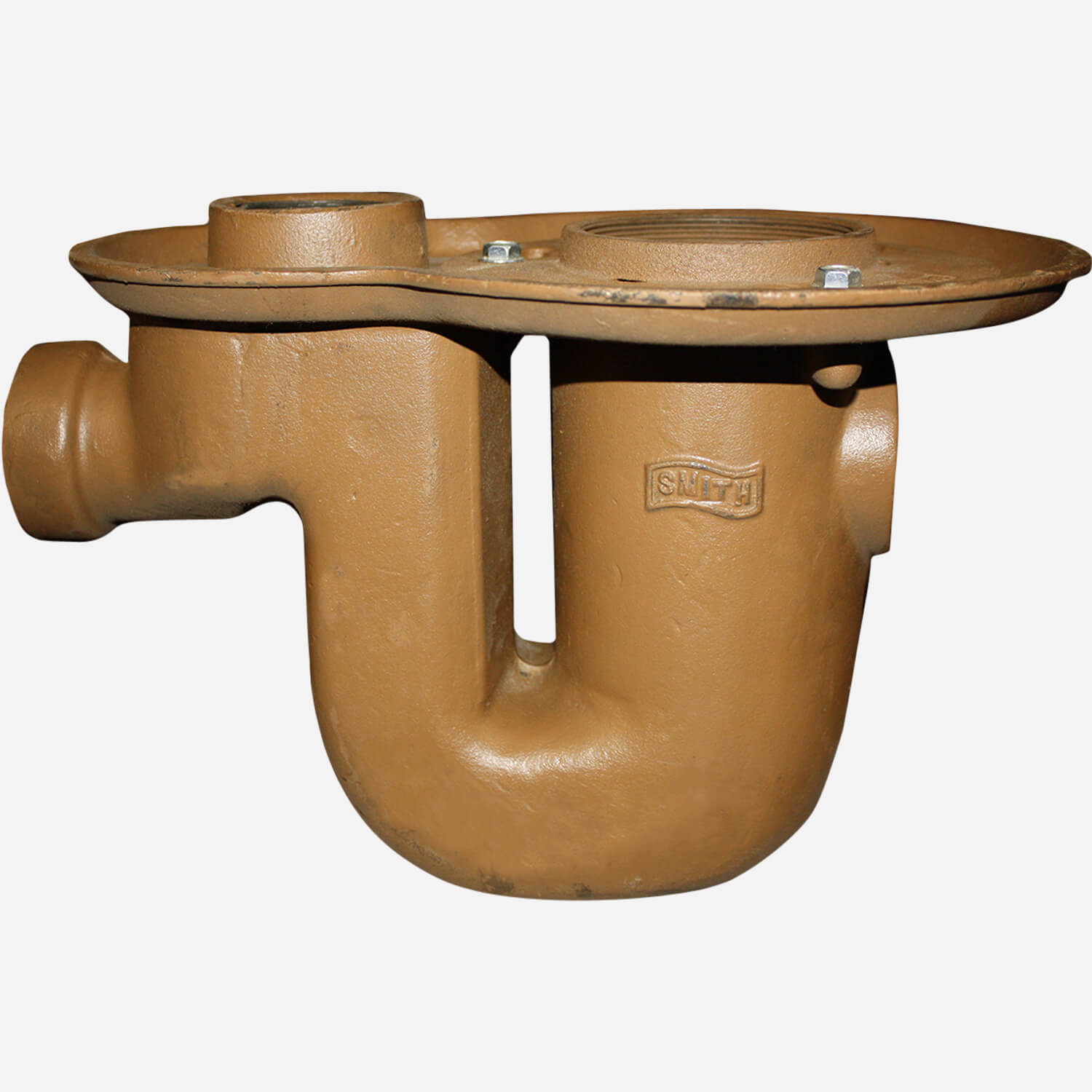

2040T | Deep Trap with Floor Cleanout - Threaded Outlet
2041S | Deep Trap with Floor Cleanout - Threaded Outlet
OPTIONAL STRAINER HEADS
Suffix A | Round Strain
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS | Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
