Name: Round Face-of-Wall Cover and Screw
Brand: Jay R. Smith Mfg. Co.
SKU: 4710

Model 4710

Round Face-of-Wall Cover and Screw

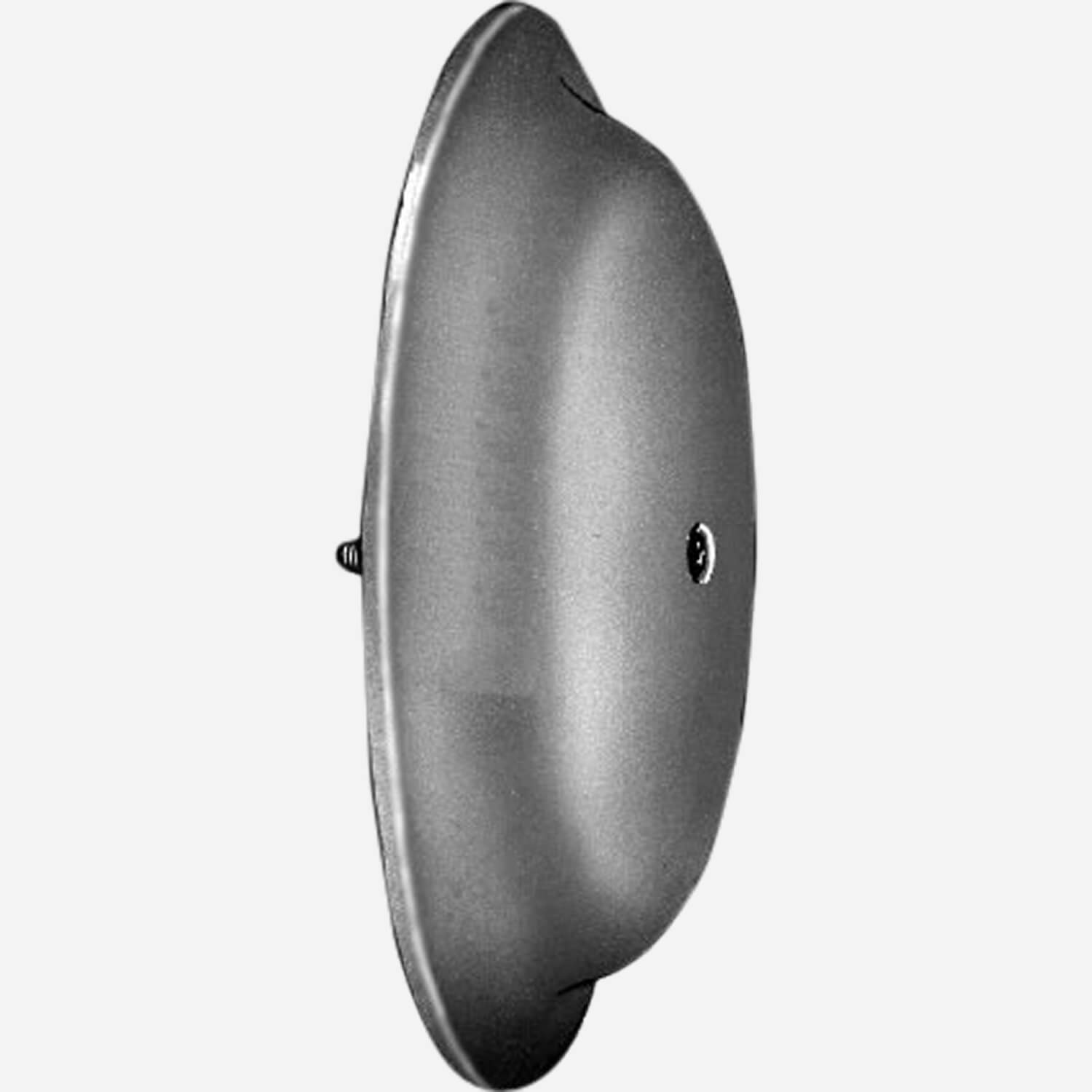

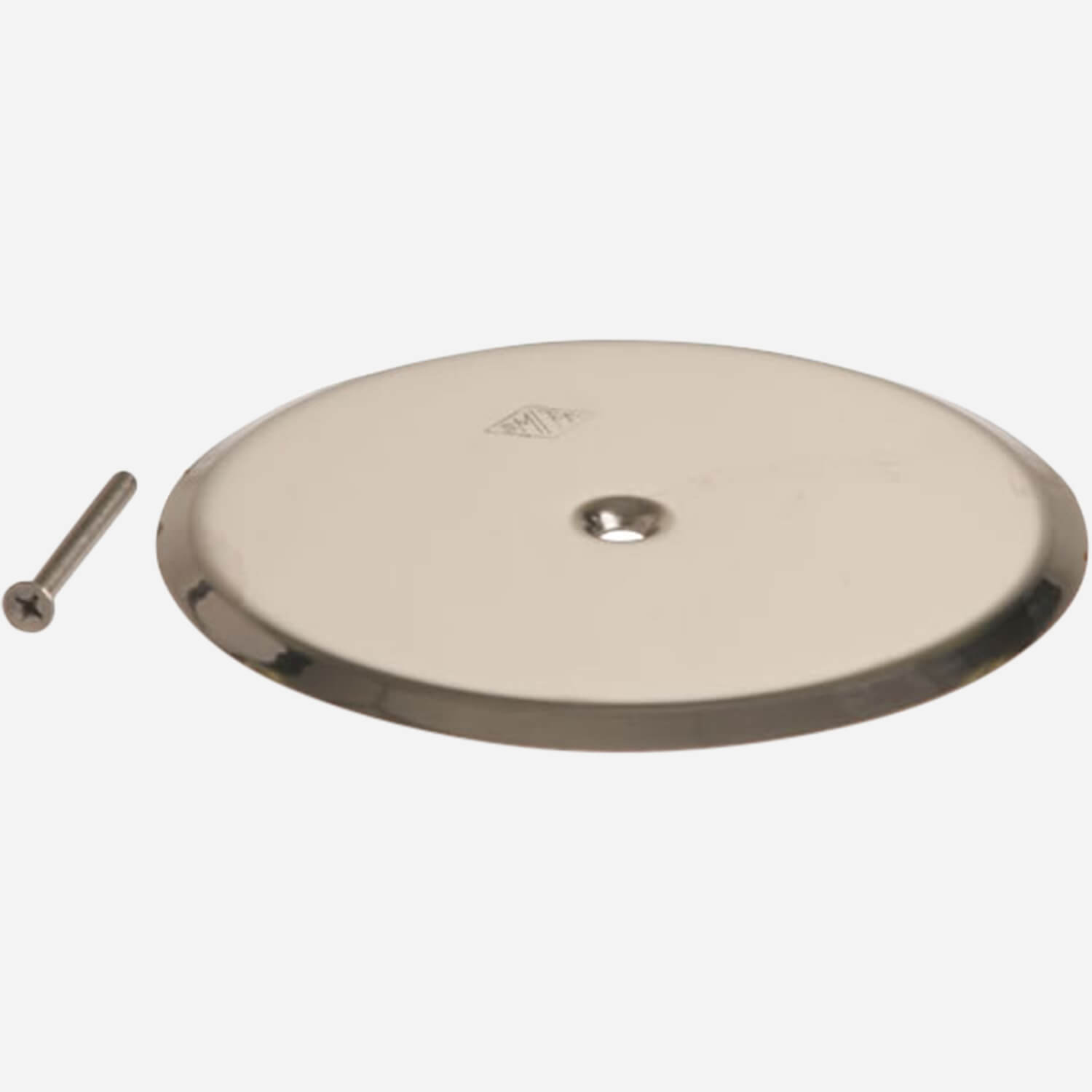

Our round stainless steel covers are used to conceal cleanout access ports in walls. Two styles are available. Both are held to the surface of finished walls by a stainless steel screw that inserts into a tapping which must be provided by the cleanout plug. The shallow plate design (Figure 4710) is stainless steel and for general use on all cleanouts not protruding from the wall. In the case of protrusion, the deep chrome-plated bronze cover (Figure 4715) is the better choice.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 4710 Cleanout (pdf)	Round Face-of-Wall Cover and Screw [4710 \| Shallow (1/4") Cover; 4715 \| Deep (1-1/4") Cover	393 KB
Drawings	4710 Cleanout CAD Drawing	Round Face-of-Wall Cover and Screw	27 KB
Revit/BIM/ITM Files	4710 Cleanout Revit Drawing	Round Face-of-Wall Cover and Screw	228 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Cleanouts	Specifications for Cleanouts	217 KB
Images	4710 Cleanout (hi res jpg)	Round Face-of-Wall Cover and Screw	9 KB
Manuals	Technical Data for Cleanouts	Technical Data for Cleanouts	906 KB
Ordering	Order Guidelines for Cleanouts	Order Guidelines for Cleanouts	120 KB
Parts Manuals	Parts Order Guide for Cleanouts	Parts Order Guide for Cleanouts	910 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Longer Center Screw - (Specify Length) -LS, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
Optional Materials	Nickel Bronze -NB - (Fig. 4715 only), Polished Bronze -PB - Cover, Prime Coated Steel Cover -PC - (Fig. 4710 only)
Product Type	Cleanout

Models

4710 (-04) | 4-1/4" (110) Diameter recommended for Plug Sizes 1-1/2 (38), 2 (51), 2-1/2 (64)
4710 (-05) | 5-1/4" (135) Diameter recommended for Plug Sizes 3 (76), 3-1/2 (89), 4 (100)
4710 (-07) | 7" (180) Diameter recommended for Plug Size 5 (125)
4710 (-09) | 9-1/4" (235) Diameter recommended for Plug Size 6 (150)
4710 (-11) | 11-1/4" (285) Diameter recommended for Plug Sizes 8 (205), 10 (255)

4715 (-07) | 7-1/4" (185) Diameter recommended for Plug Sizes 1-1/2 (38), 2 (51), 2-1/2 (64), 3 (76), 3-1/2 (89), 4 (100), 5 (125)
4715 (-09) | 9-1/4" (235) Diameter recommended for Plug Size 6 (150)
4715 (-11) | 11-1/4" (285) Diameter recommended for Plug Sizes 8 (205), 10 (255)
