Model 4237-4249

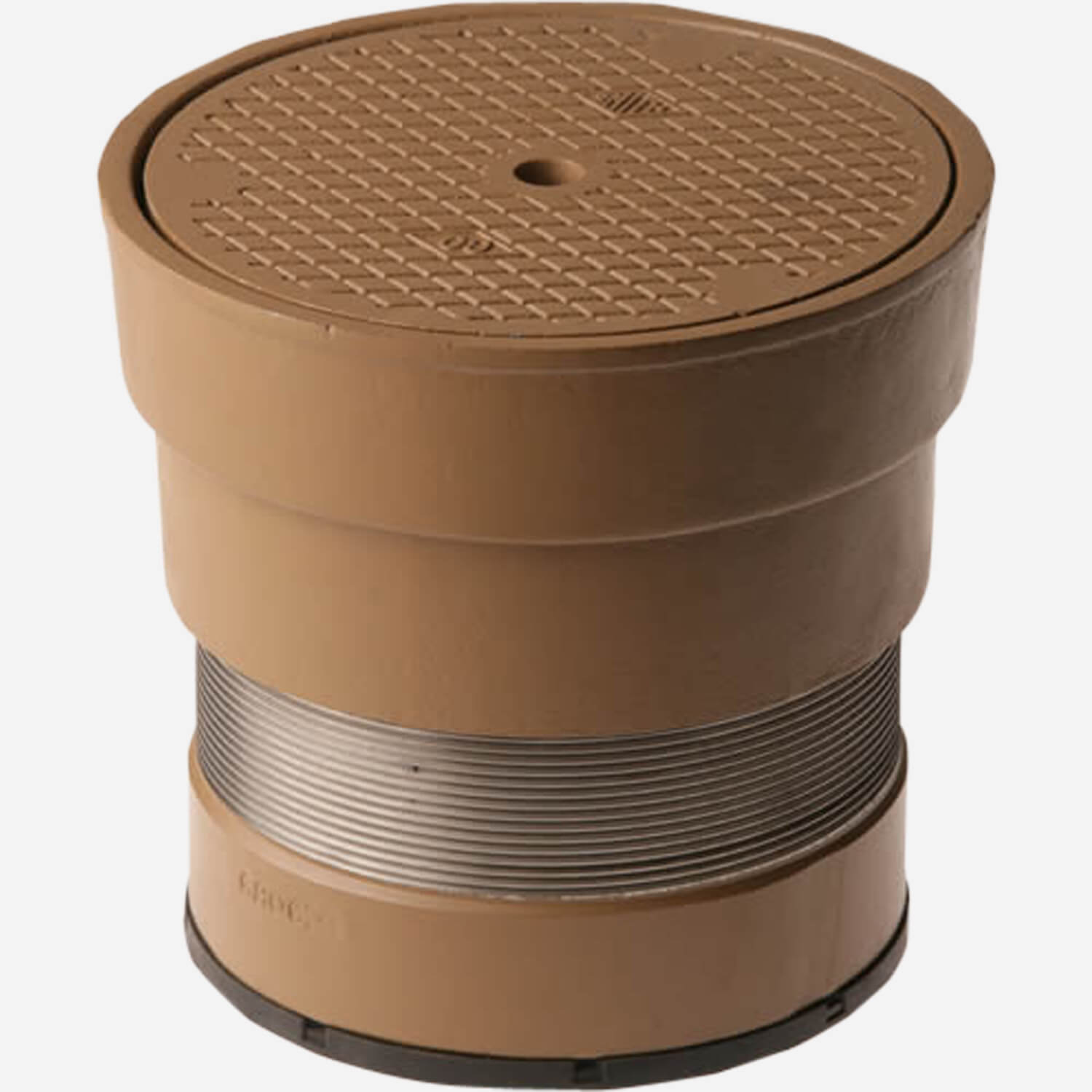

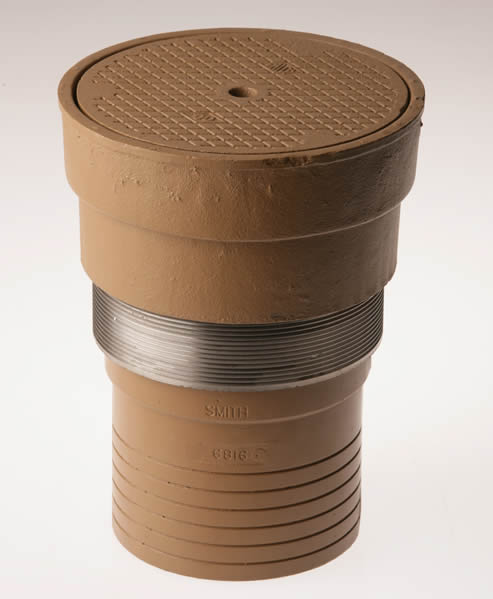

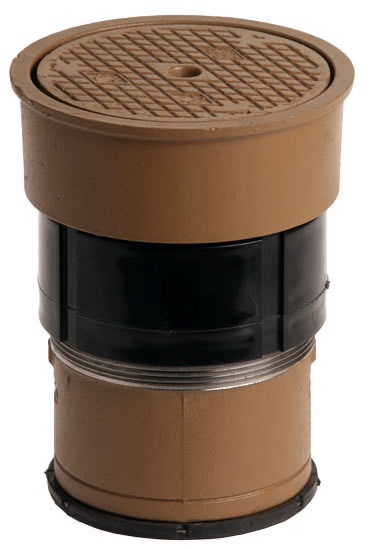

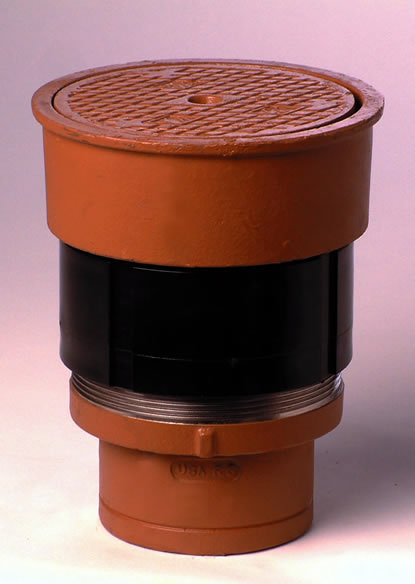

Unfinished Floor Cleanouts with Adjustable Round Cast Iron Tractor Cover Tops
This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after concrete floor is cast. They are available in 7" diam. (fig. 4237) and 9" diam. (fig. 4239) sizes. Constructed of Duco coated cast iron and topped with loose set, heavy duty, cast iron tractors cover, these cleanouts are designed to support heavy industrial traffic. Available in 2", 3" or 4" Speedi-Set® outlets.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Submittal 4237 Cleanout | 827 KB | ||
 | | DWG 4237 Cleanout | 104 KB | ||
| | DWG 4240 Cleanout | 74 KB | ||
| | DWG 4243 Cleanout | 88 KB | ||
| | Submittal 4240 Cleanout | 1 MB | ||
| | Submittal 4245 Cleanout | 948 KB | ||
| | Specifications for Cleanouts | 217 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Flyer for Cleanouts | 847 KB | ||
 | | 25 KB | |||
| | 28 KB | |||
| | 30 KB | |||
| | 26 KB | |||
| | Technical Data for Cleanouts | 906 KB | ||
| | Order Guidelines for Cleanouts | 120 KB | ||
| | Parts Order Guide for Cleanouts | 910 KB |
Specifications
| Variations | Center Securing Screw -CSS, Flashing Flange -F, Flange with Flashing Clamp -F-C, Vandal Proof -U - Top or Grates, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Ductile Iron -M - Cover, Nickel Bronze Top - NB, Polished Bronze Top - PB |
| Product Type | Cleanout |
