Model 4160-4174

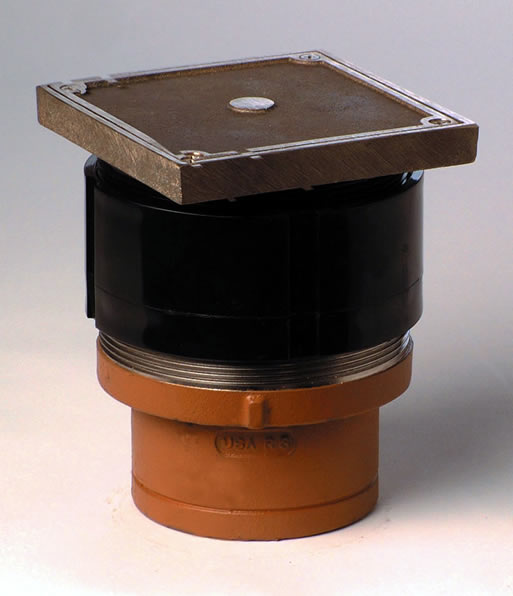

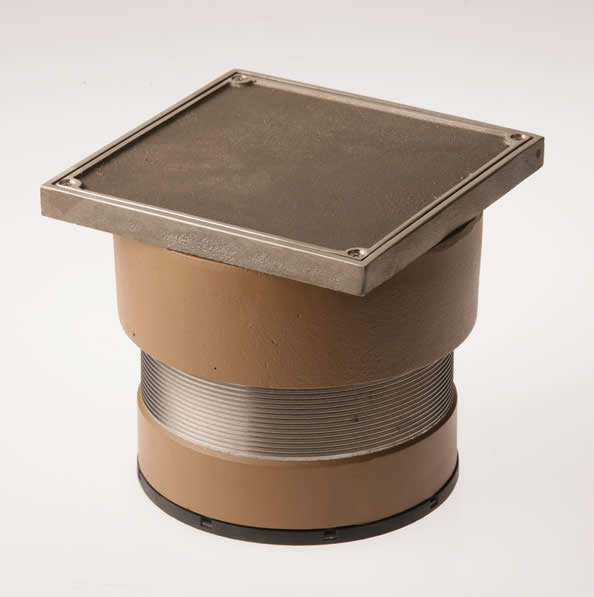

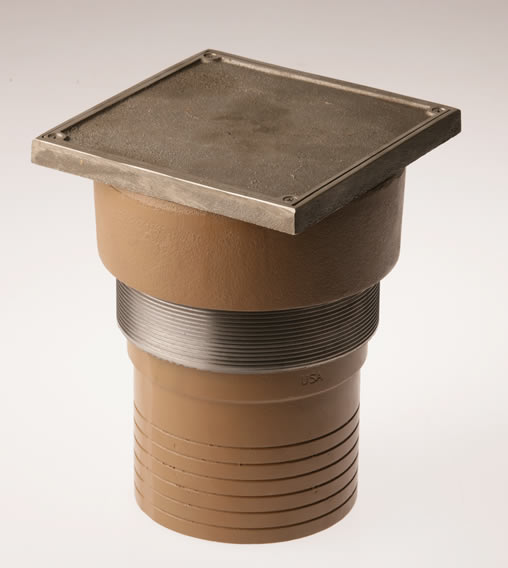

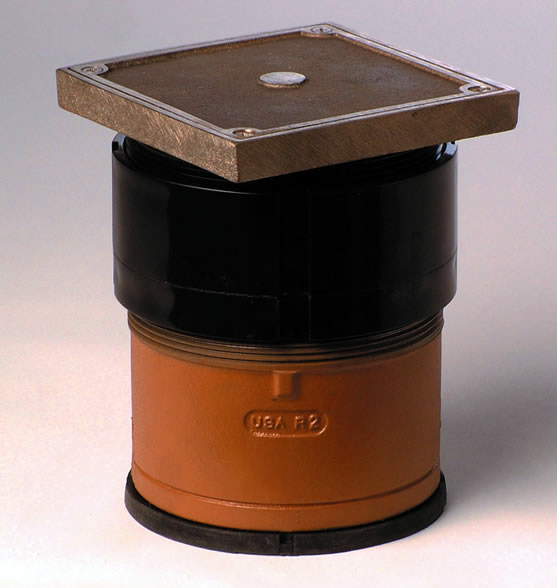

Vinyl and Similar Tile Floor Cleanouts with Square Nickel Bronze Tops and Tile Recess
This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings such as asphalt, vinyl tile or linoleum are installed. Its 6” (150) square nickel bronze top is recessed 1/8” (3) to receive an inlay of the floor material for an unobtrusive appearance. Constructed of Duco coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic. It is available with 2", 3" and 4" outlets.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 4160 Cleanout | 1 MB | |||
 | | DWG 4160 Cleanout | 0 | 77 KB | ||
| | DWG 4165 Cleanout | 0 | 92 KB | ||
| | DWG 4171 Cleanout | 0 | 110 KB | ||
 | | RFA 4160 Cleanout | 0 | 308 KB | ||
| | Submittal 4165 Cleanout | 0 | 921 KB | ||
| | Submittal 4171 Cleanout | 0 | 1 MB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Flyer for Cleanouts | 0 | 847 KB | ||
 | | 0 | 32 KB | |||
| | 0 | 26 KB | |||
| | 0 | 35 KB | |||
| | 0 | 22 KB | |||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB |
Specifications
| Variations | Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Polished Bronze Top - PB |
| Product Type | Cleanout |
