Ceiling Fire Resistant Access Doors

Name: Ceiling Fire Resistant Access Doors
Brand: Jay R. Smith Mfg. Co.
SKU: 4774

Find A Representative

Figure 4774

Submittal

Submittal 4774 Access Door

Model 4774

Ceiling Fire Resistant Access Doors

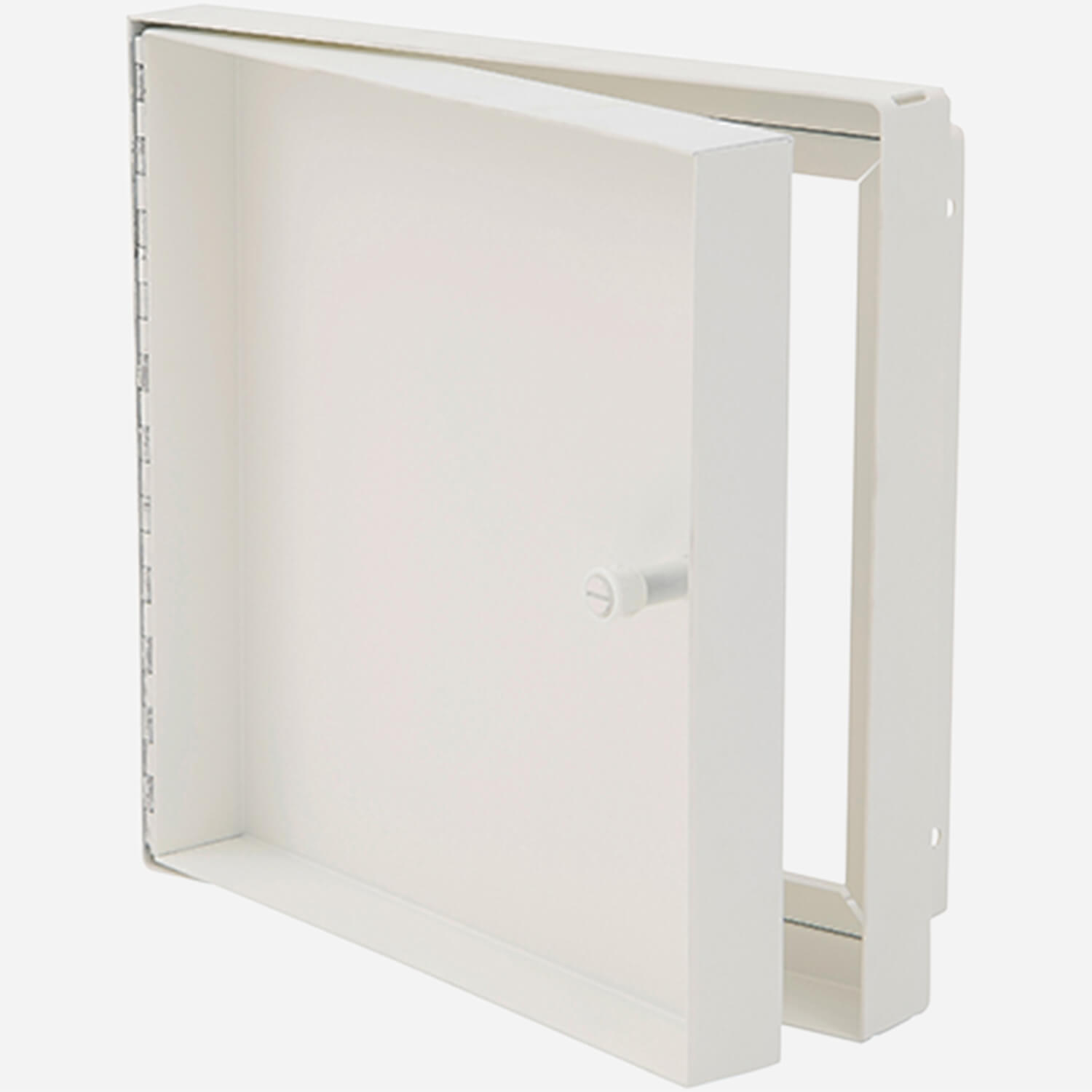

4774 series doors are designed for installation in suspended dry wall ceilings as part of a fire rated ceiling assembly but is, itself, not fire rated. To achieve its fire resistance, the 16 gauge galvannealed door panel has a 1-1/2" recess that is filled with dual layered ceiling tile. The frame/jamb is fabricated from 18 gauge galvannealed steel and fitted with a continuous piano type hinge. A screwdriver is needed to operate the latch. The entire assembly is delivered primed and ready to paint.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 4774 Access Door		297 KB
Drawings	DWG 4774 Access Door		165 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Access Door Brochure (pdf)	Access Door Product Brochure	36 MB
Manuals	Technical Data for Cleanouts	Technical Data for Cleanouts	906 KB
Parts Manuals	Parts Order Guide for Cleanouts	Parts Order Guide for Cleanouts	910 KB
Ordering	Order Guidelines for Cleanouts	Order Guidelines for Cleanouts	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Allen Key Latch -AKL, Cylinder Lock (one per door) -CL, Stainless Steel Construction -SS Type 304 No. 4 Satin Finish, (2) 3/8” (10) Tappings -TAP
