Finished Floor Cleanouts with Round Nickel Bronze Tops
Versatility in Adjustment Before and After the Pour
This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. It is constructed of Duco coated cast iron with a secured 5-3/4” (145) diam. nickel bronze top for finished floors bearing foot and medium load wheeled traffic.
Pro-Tip: Never under estimate the importance of aesthetics to your client. Our cleanouts allow you to exchange our factory covers with scoriatedtile or terrazzo covers.
Concrete pours are not a precise science. Once the surface is dry, you often find your cleanouts need adjusting—a fraction lower here, a fraction higher over there. Our Twis-to-Floor cleanouts allow you to make that adjustment with a simple twist.
Labor Saving Features:- All strainer heads and cleanout tops shipped individually are shrink wrapped in plastic before leaving the factory.
- The cover protects the drain/cleanout top during shipping, warehousing and on the job site.
- Each protective cover is clearlymarked with the product number and the Smith logo.
- The cover protects the drain/cleanout top during the pour preserving the finish.
- Thicker finished floor cover reinforced with support ribs for strength and durability
- Smooth outside surface of the top assembly and thread protector Styrofoam ring maximize adjustment during and after the finished floor concrete pour
- Top assembly offers easy attachment to ferrule
- Easy to install clamping device on ferrule
- Cast iron clamping device on ferrule providing maximum clamping force to the membrane
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet [4020S, 4021S; 4023S; 4024S] 4023S also available with Spigot Outlet | 1002 KB | |||
 | | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S | Gasket Seal - ABS Plug] | 0 | 76 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S-X | Gasket Seal - ABS Plug] | 0 | 107 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S-Y | Gasket Seal - ABS Plug] | 0 | 140 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Inside Caulk Outlet [Figure 4025C | Gasket Seal - ABS Plug ] | 0 | 90 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Inside Caulk Outlet [Figure 4025C-X | Gasket Seal - ABS Plug] | 0 | 121 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Inside Caulk Outlet [Figure 4025C-Y | Gasket Seal - ABS Plug] | 0 | 153 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L | Gasket Seal - ABS Plug] | 0 | 108 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L-X | Gasket Seal - ABS Plug] | 0 | 140 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L-Y | Gasket Seal - ABS Plug] | 0 | 172 KB | ||
 | | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L | Gasket Seal - ABS Plug] | 0 | 224 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4033L | Taper Thread - Bronze Plug] | 0 | 572 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S | Gasket Seal - ABS Plug] | 0 | 404 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet [Figure 4023S | Taper Thread - Bronze Plug] also available with Spigot Outlet Figure 4023S | Taper Thread - Bronze Plug] | 0 | 324 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - No Hub Outlet [4020S-X; 4021S-X; 4023S-X; 4024S-X] 4023S-X also available with Spigot Outlet | 0 | 1 MB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - No Hub Outlet [4020S-Y; 4021S-Y; 4023S-Y; 4024S-Y]; 4023S-Y also available with Spigot Outlet | 0 | 871 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Inside Caulk Outlet [4025C | Gasket Seal - ABS Plug; 4026C | Gasket Seal - Bronze Plug; 4028C | Taper Thread - Bronze Plug; 4029C | Taper Thread - ABS] | 0 | 492 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Inside Caulk Outlet [4025C-X; 4026C-X; 4028C-X; 4029C-X] | 0 | 362 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Inside Caulk Outlet [4025C-Y; 4026C-Y; 4028C-Y; 4029C-Y] | 0 | 367 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [4031L | Gasket Seal - ABS Plug; 4032L | Gasket Seal - Bronze Plug; 4033L | Taper Thread - Bronze Plug; 4034L |Taper Thread - ABS Plug] | 0 | 1 MB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Speedi-Set® Outlet [4031L-X; 4032L-X; 4033L-X; 4034L-X] | 0 | 924 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Speedi-Set® Outlet [4031L-Y; 4032L-Y; 4033L-Y; 4034L-Y] | 0 | 826 KB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Flyer for Cleanouts | 0 | 847 KB | ||
| | Contractor Labor Saving Products Brochure (pdf) | 0 | 5 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
 | | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet - Gasket Seal - ABS Plug | 0 | 40 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top; Taper Thread Bronze Plug - No Hub Outlet or Spigot Outlet | 0 | 143 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L | Gasket Seal - ABS Plug] | 0 | 34 KB | ||
| | Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4033L | Taper Thread - Bronze Plug] | 0 | 178 KB | ||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Quote Worksheet Smith Drainage Systems | 0 | 39 KB |
Specifications
| Variations | Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, Wide Flange (DX), (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Stainless Steel Top -NBSS, Galvanized Cast Iron -G, Polished Bronze Top - PB |
| Product Type | Cleanout |
| Benefit | Labor Saving |
Models

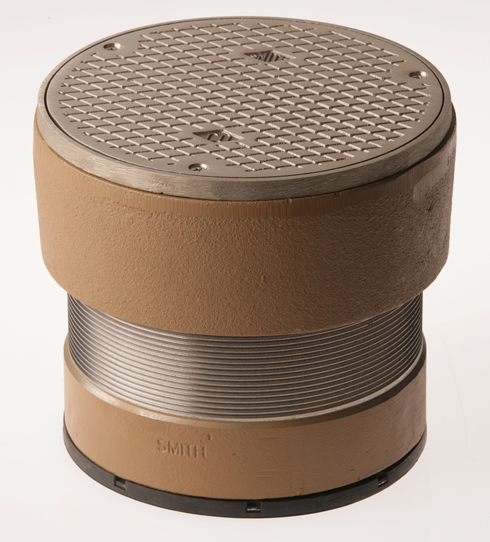

4020 SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet
[4020S | Gasket Seal - ABS Plug; 4021S | Gasket Seal - Bronze Plug; 4023S | Taper Thread - Bronze Plug;4024S | Taper Thread - ABS]
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Spigot Outlet
4023S | Taper Thread - Bronze Plug
4020-X SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - No Hub Outlet
[4020S-X | Gasket Seal - ABS Plug; 4021S-X | Gasket Seal - Bronze Plug; 4023S-X | Taper Thread - Bronze Plug; 4024S-X | Taper Thread - ABS]
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Spigot Outlet
4023S-X | Taper Thread - Bronze Plug
4020-Y SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - No Hub Outlet
[4020S-Y | Gasket Seal - ABS Plug; 4021S-Y | Gasket Seal - Bronze Plug; 4023S-Y | Taper Thread - Bronze Plug; 4024S-Y | Taper Thread - ABS]
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Spigot Outlet
4023S-Y | Taper Thread - Bronze Plug

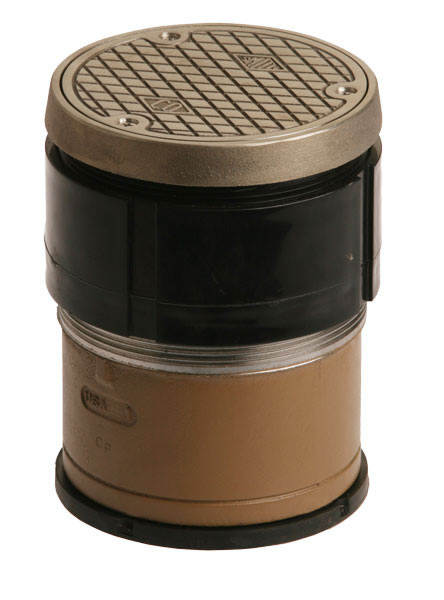

4025 SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top - Inside Caulk Outlet
[4025C | Gasket Seal - ABS Plug; 4026C | Gasket Seal - Bronze Plug; 4028C | Taper Thread - Bronze Plug; 4029C | Taper Thread - ABS]
4025-X SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Inside Caulk Outlet
[4025C-X | Gasket Seal - ABS Plug; 4026C-X | Gasket Seal - Bronze Plug; 4028C-X | Taper Thread - Bronze Plug; 4029C-X | Taper Thread - ABS]
4025-Y SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Inside Caulk Outlet
[4025C-Y | Gasket Seal - ABS Plug; 4026C-Y | Gasket Seal - Bronze Plug; 4028C-Y | Taper Thread - Bronze Plug; 4029C-Y | Taper Thread - ABS]

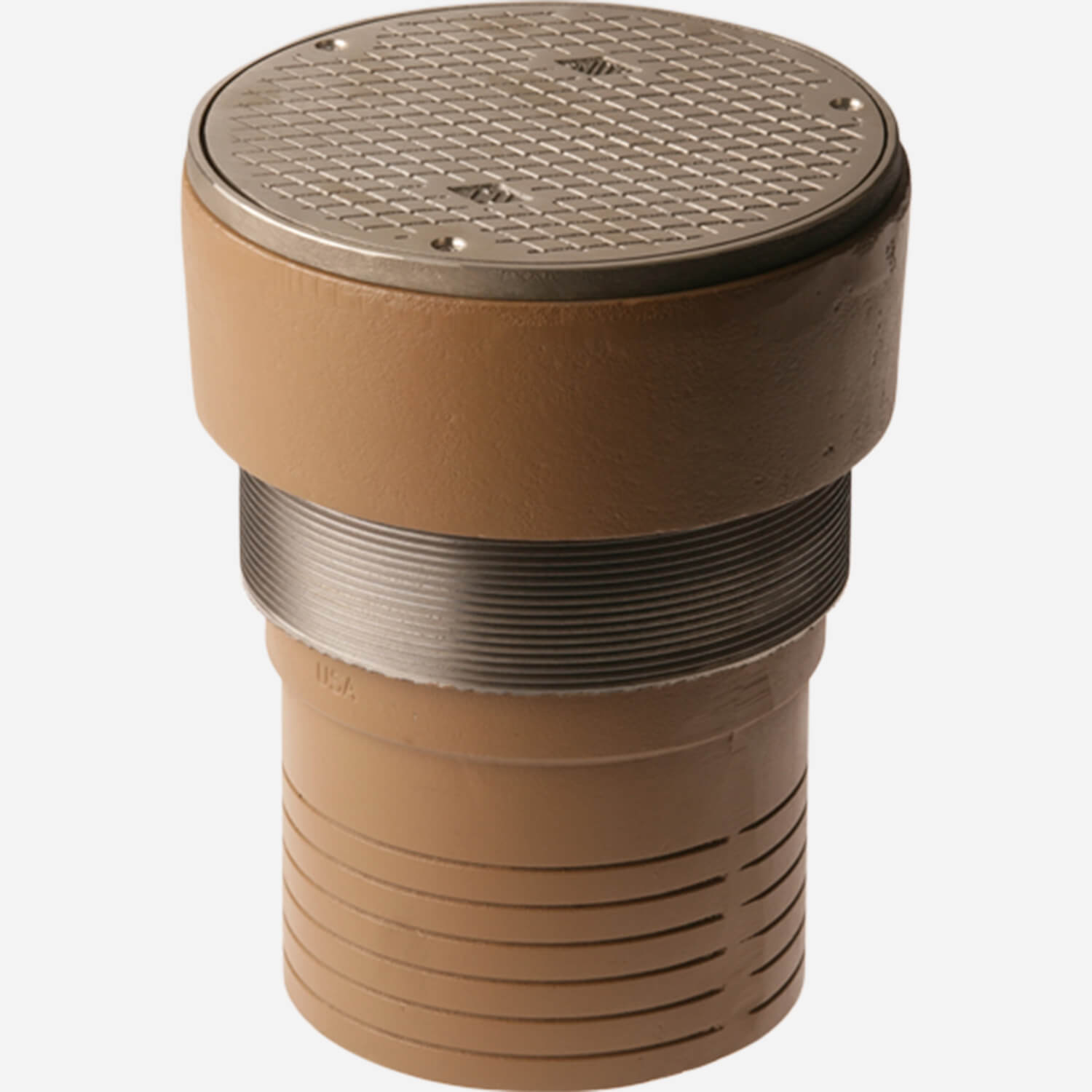

4031 SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet
[4031L | Gasket Seal - ABS Plug; 4032L | Gasket Seal - Bronze Plug; 4033L | Taper Thread - Bronze Plug; 4034L |Taper Thread - ABS Plug]
4031-X SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Speedi-Set® Outlet
[4031L-X | Gasket Seal - ABS Plug; 4032L-X | Gasket Seal - Bronze Plug; 4033L-X | Taper Thread - Bronze Plug; 4034L-X |Taper Thread - ABS Plug]
4031-Y SERIES
Finished Floor Cleanouts with Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Speedi-Set® Outlet
[4031L-Y | Gasket Seal - ABS Plug; 4032L-Y | Gasket Seal - Bronze Plug; 4033L-Y | Taper Thread - Bronze Plug; 4034L-Y |Taper Thread - ABS Plug]
