Finished Floor Cleanouts with Square Nickel Bronze Tops

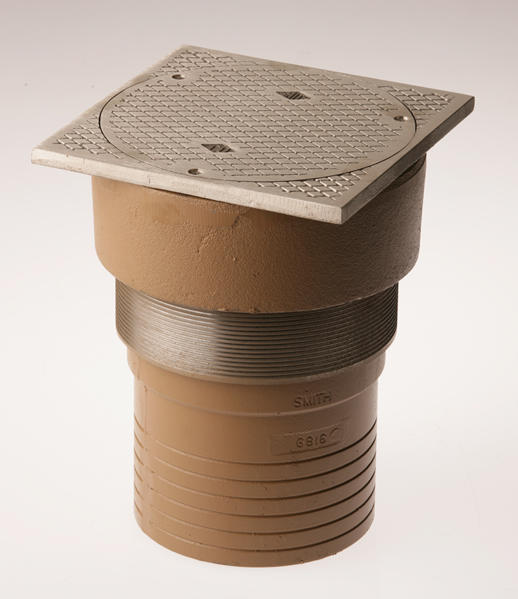

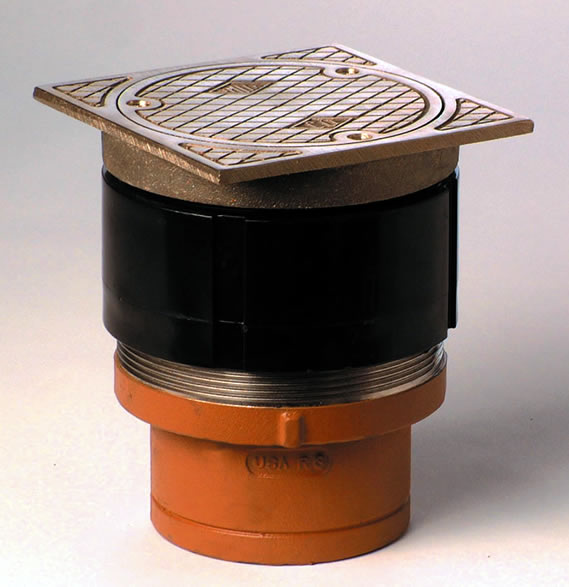

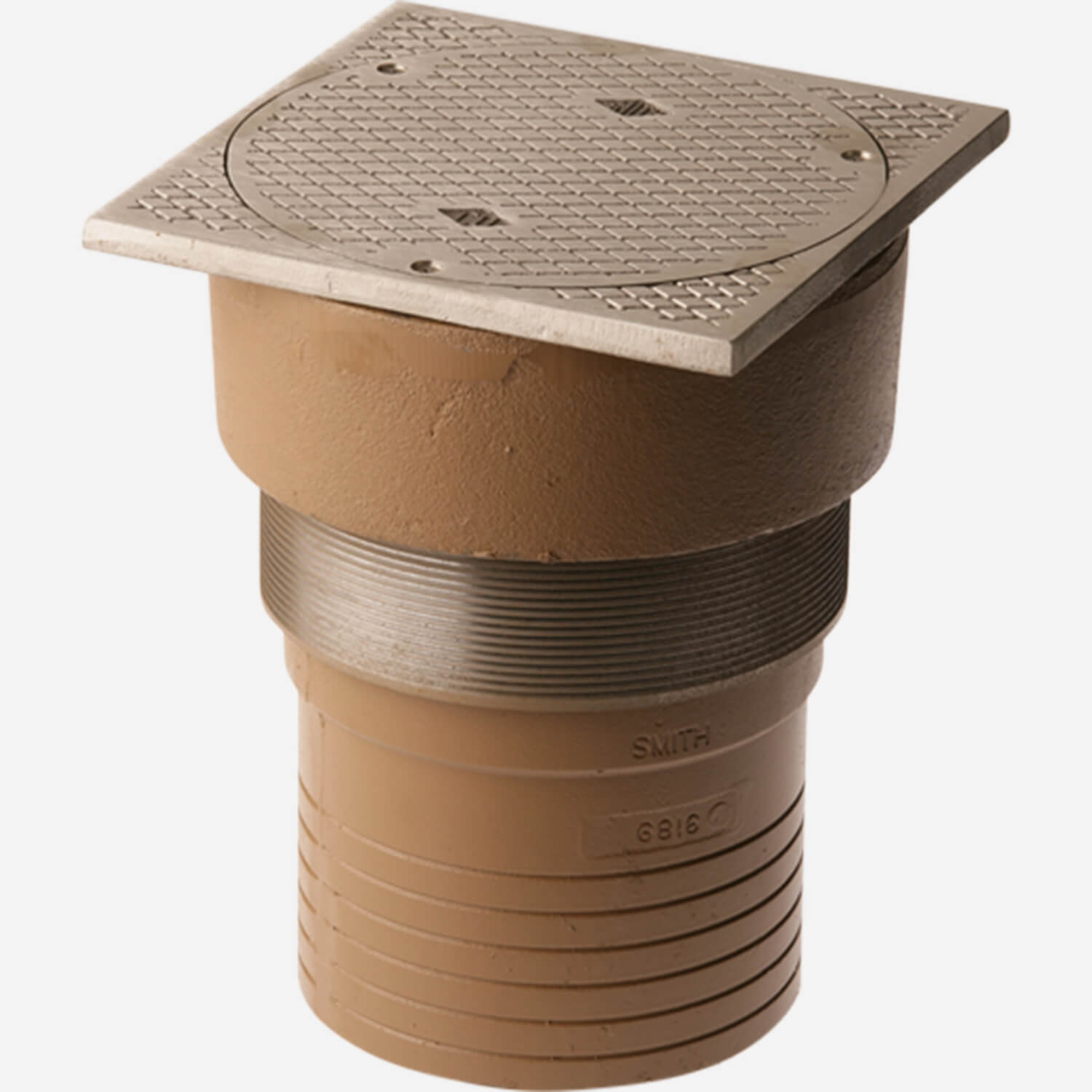

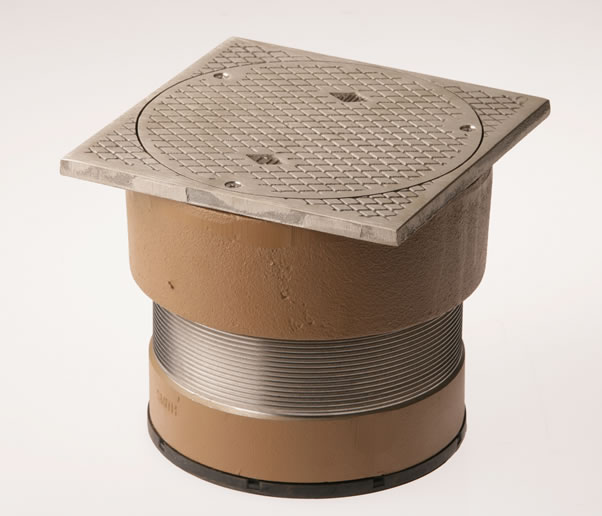

This labor-saving cleanout uses our Twis-to-Floor® adjustment technology to level the top of the floor with adjacent surfaces after the floor is poured and floor coverings are installed. Its 6” (150) square nickel bronze top is particularly suited for installation in flooring materials having straight line patterns. Constructed of Duco-coated cast iron, this cleanout is designed to support foot and medium load wheeled traffic.
Available Figure Series
4040S thru 4044S Cleanout | No-Hub Bottom Outlet
4045S thru 4049S Cleanout | Inside Caulk Bottom Outlet
4051L thru 4054L Cleanout | Push-On Speedi-Set® Bottom Outlet
Refer to the catalog page and/or "Figures" Section below for more information.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Finished Floor Cleanouts with Twis-to-Floor® Adjustable Top - Square Nickel Bronze Top, No-Hub Bottom Outlet [4040S | Gasket Seal - ABS Plug; 4041S | Gasket Seal - Bronze Plug; 4043S | Taper Thread - Bronze Plug; 4044S | Taper Thread - ABS Plug] | 779 KB | ||
 | | DWG 4040 Cleanout | 75 KB | ||
| | DWG 4045 Cleanout | 90 KB | ||
| | DWG 4051 Cleanout | 108 KB | ||
 | | RFA 4040 Cleanout | 580 KB | ||
| | RFA 4043 Cleanout | 276 KB | ||
| | Finished Floor Cleanouts with Twis-to-Floor® Adjustable Top - Square Nickel Bronze Top, Push-On Speedi-Set® Bottom Outlet [4051L | Gasket Seal - ABS Plug; 4052L | Gasket Seal - Bronze Plug; 4053L | Taper Thread - Bronze Plug; 4054L | Taper Thread - ABS Plug] | 1 MB | ||
| | Finished Floor Cleanouts with Twis-to-Floor® Adjustable Top - Square Nickel Bronze Top, Inside Caulk Bottom Outlet [4045S | Gasket Seal - ABS Plug; 4046S | Gasket Seal - Bronze Plug; 4048S | Taper Thread - Bronze Plug; 4049S | Taper Thread - ABS Plug] | 984 KB | ||
| | MGI Brands Flyer (pdf) | 718 KB | ||
| | Flyer for Cleanouts | 847 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Specifications for Cleanouts | 217 KB | ||
 | | 47 KB | |||
| | 145 KB | |||
| | 203 KB | |||
| | 40 KB | |||
| | Technical Data for Cleanouts | 906 KB | ||
| | Order Guidelines for Cleanouts | 120 KB | ||
| | Parts Order Guide for Cleanouts | 910 KB | ||
| | Quote Worksheet Smith Drainage Systems | 39 KB | ||
| | Quote Worksheet Smith Drainage Systems | 39 KB |
Specifications
| Variations | Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Galvanized Cast Iron -G, Polished Bronze Top - PB |
| Product Type | Cleanout |
Models
Finished Floor Cleanout with Twis-to-Floor® Adjustable Top
Square Nickel Bronze Top, No-Hub Bottom Outlet [ submittal ]
4040S | Gasket Seal - ABS Plug
4041S | Gasket Seal - Bronze Plug
4043S | Taper Thread - Bronze Plug
4044S | Taper Thread - ABS Plug
Finished Floor Cleanout with Twis-to-Floor® Adjustable Top
Square Nickel Bronze Top, Inside Caulk Bottom Outlet [ submittal ]
4045S | Gasket Seal - ABS Plug
4046S | Gasket Seal - Bronze Plug
4048S | Taper Thread - Bronze Plug
4049S | Taper Thread - ABS Plug]
Finished Floor Cleanouts with Twis-to-Floor® Adjustable Top
Square Nickel Bronze Top, Push-On Speedi-Set® Bottom Outlet [ submittal ]
4051L | Gasket Seal - ABS Plug
4052L | Gasket Seal - Bronze Plug
4053L | Taper Thread - Bronze Plug
4054L | Taper Thread - ABS Plug
