Duct Access Doors

Name: Duct Access Doors
Brand: Jay R. Smith Mfg. Co.
SKU: 4775

Find A Representative

Figure 4775

Submittal

Submittal 4775 Access Door (pdf)

Model 4775

Duct Access Doors

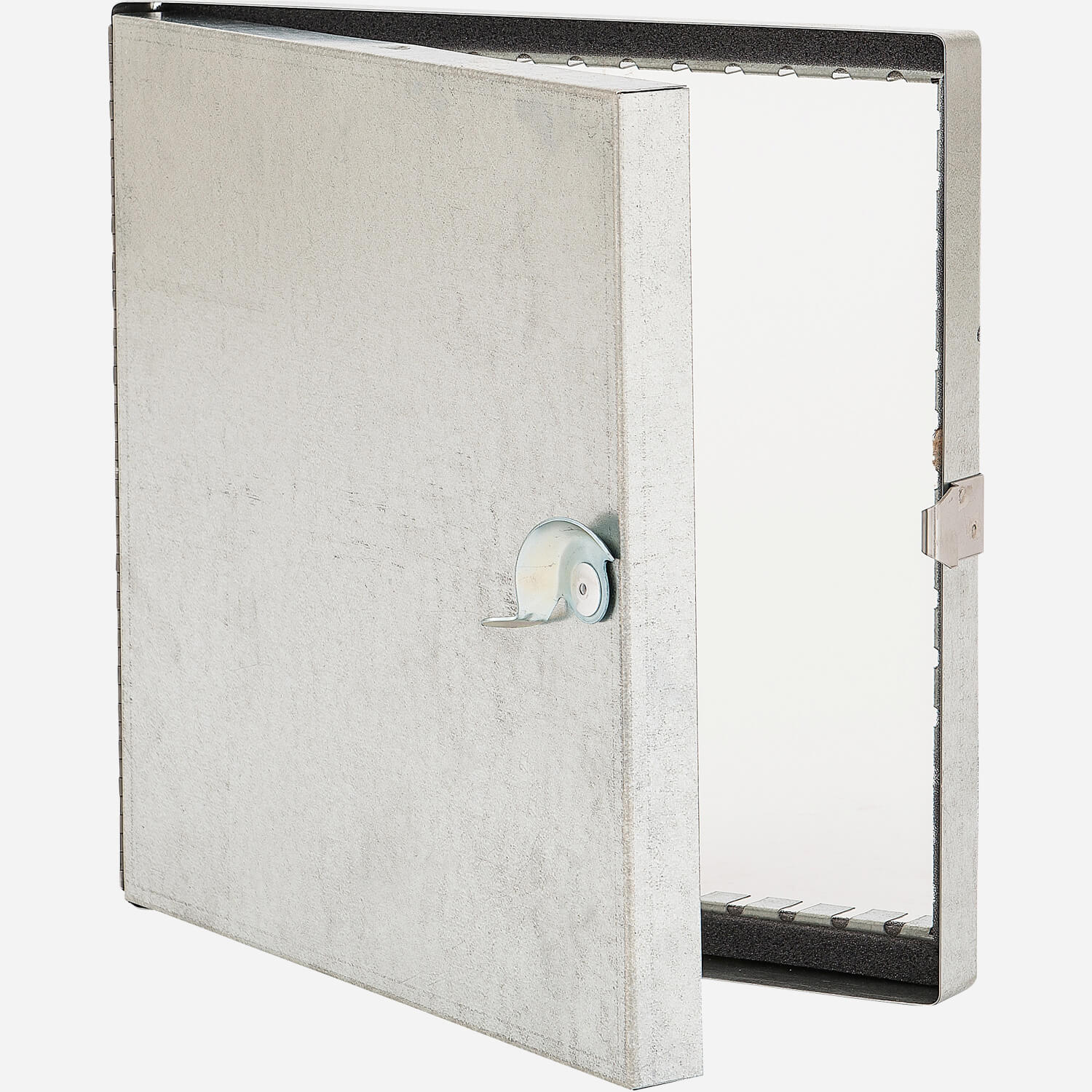

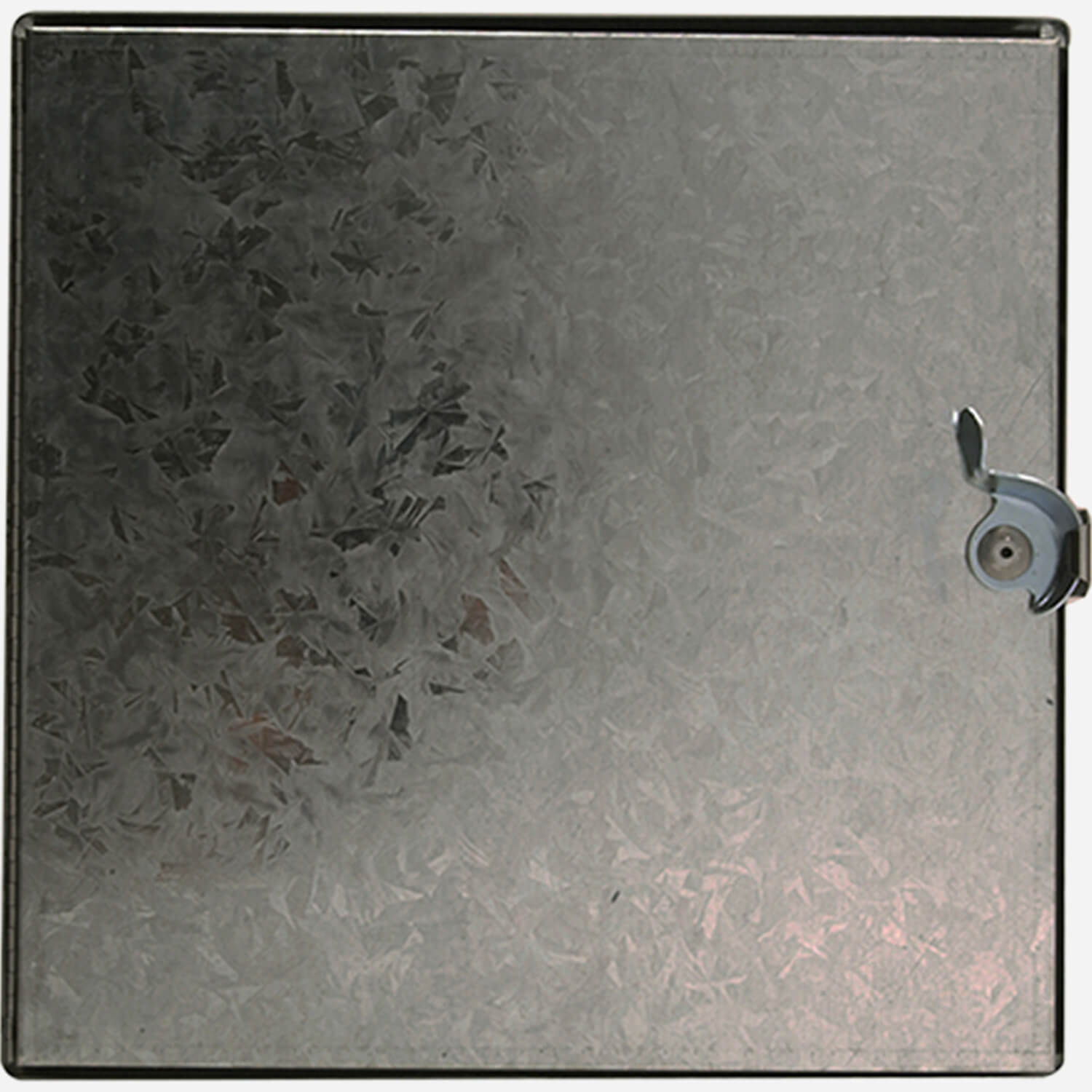

Our 24 gauge galvanized steel Duct Access Doors are 1” (25) thick, insulated, and of double wall construction. To ensure a tight seal without obstruction in the air system, gaskets are installed between the door panel and frame. The frame has knock-over tabs and easily attaches to the duct. A piano type hinge ensures easy operation. The door is secured with a self-tightening cam latch that is hand operated.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 4775 Access Door (pdf)		309 KB
Drawings	DWG 4775 Access Door		184 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Brochures/Flyers	Access Door Brochure (pdf)	Access Door Product Brochure	36 MB
Manuals	Technical Data for Cleanouts	Technical Data for Cleanouts	906 KB
Parts Manuals	Parts Order Guide for Cleanouts	Parts Order Guide for Cleanouts	910 KB
Ordering	Order Guidelines for Cleanouts	Order Guidelines for Cleanouts	120 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

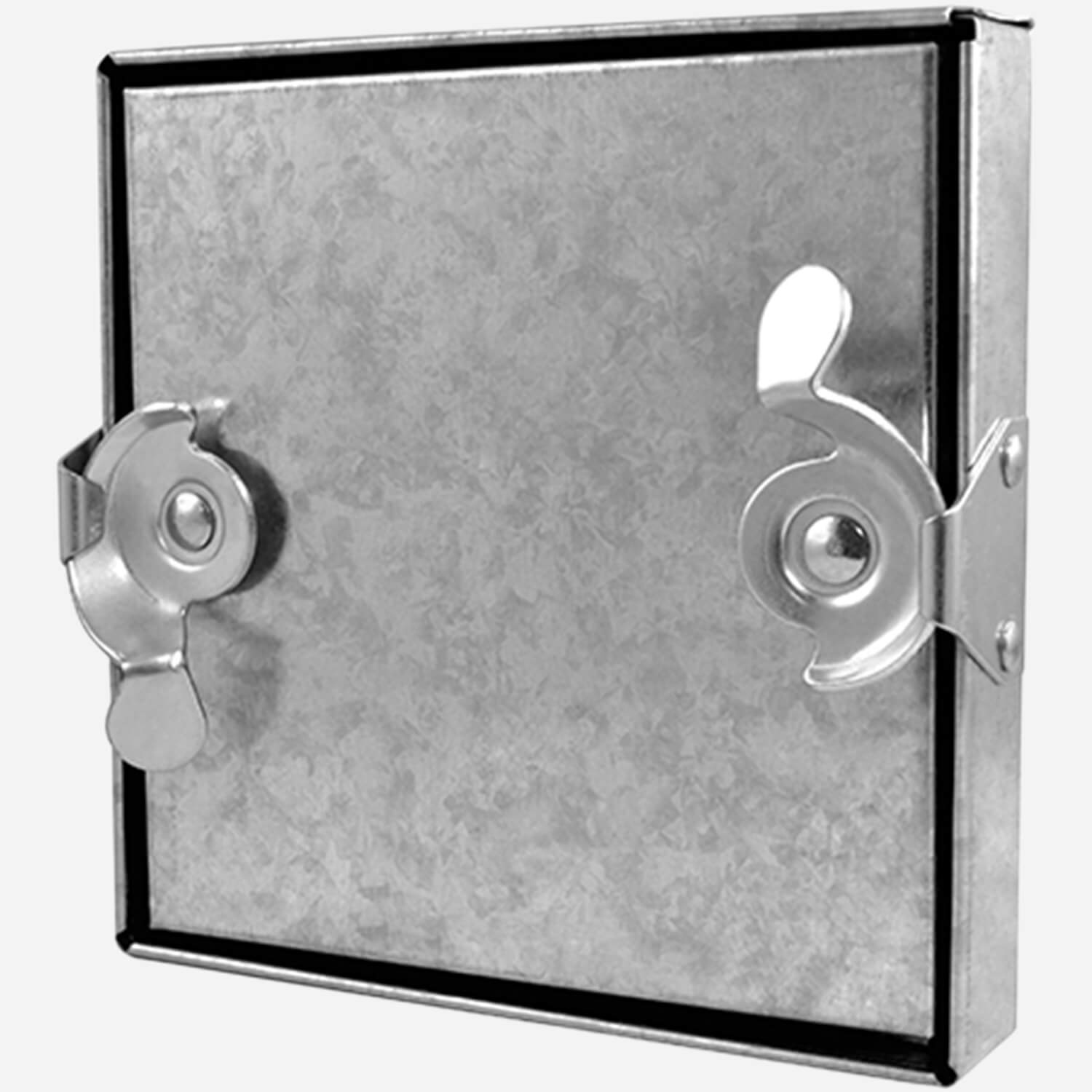

Variations	Cam Latch - Non Hinged -CNH, (2) 3/8” (10) Tappings -TAP
