Model 4313 & 4318
Round Adjustable Cast Iron Top

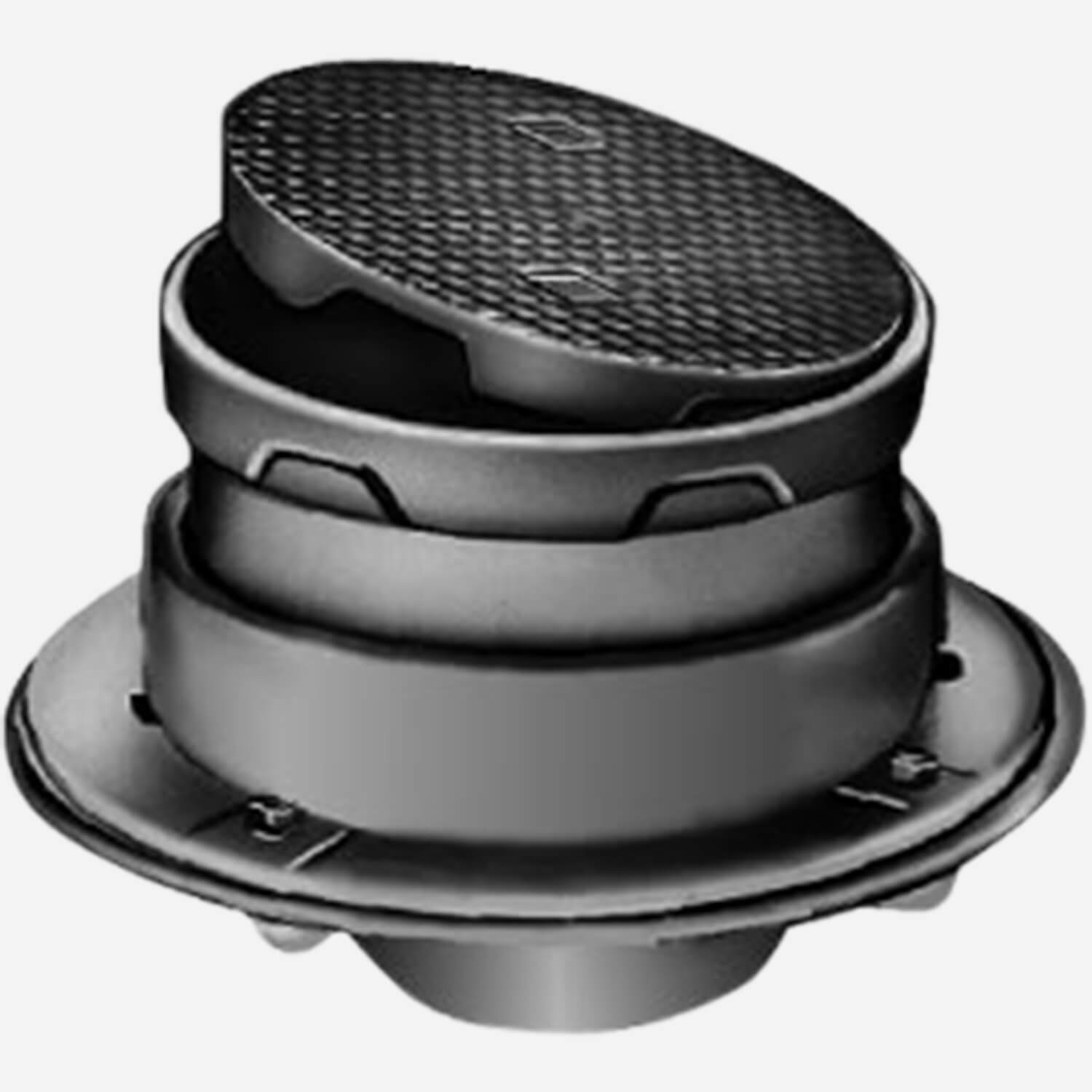

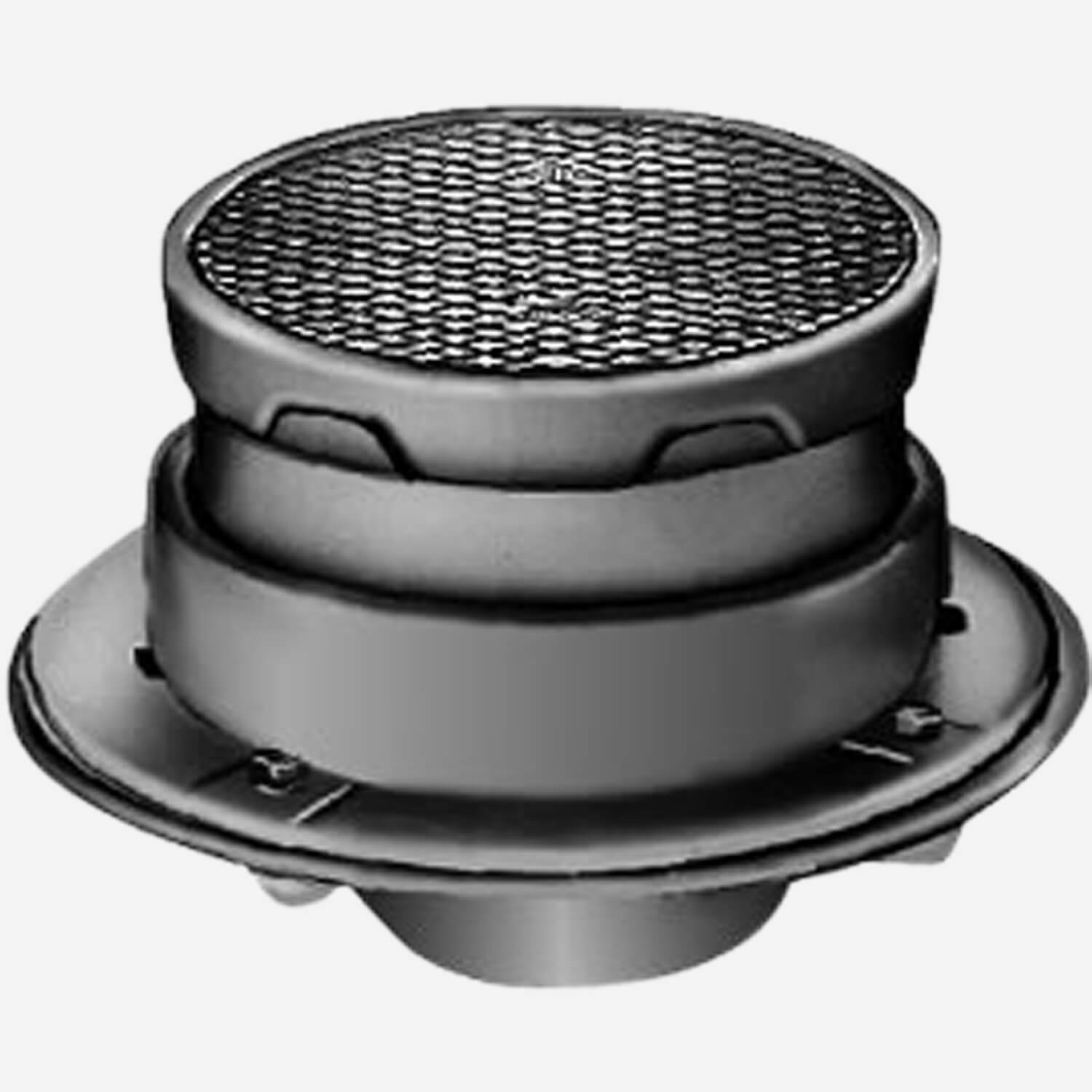

These Duco coated cast iron unfinished floor cleanouts are installed in areas where their large 8-1/2” (215) access cover is desirable and the appearance of cast iron is satisfactory. They are available with a cast iron medium duty (fig. 4313) cover or non-tilt heavy duty (fig. 4318) cover and can be adjusted to level the top with adjacent flooring. They are fitted with a bronze taper thread closure plug and flashing collar.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Submittal 4313 Cleanout | 529 KB | |||
 | | DWG 4313 Cleanout | 0 | 83 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | Specifications for Cleanouts | 0 | 217 KB | ||
| | Technical Data for Cleanouts | 0 | 906 KB | ||
| | Order Guidelines for Cleanouts | 0 | 120 KB | ||
| | Parts Order Guide for Cleanouts | 0 | 910 KB |
Specifications
| Variations | NO-HUB Adaptor - (Specify Fig. 2646Y), Recessed for Tile -RT, Secured Cover -SEC, Square Top -S, T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof Cover -U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP |
| Optional Materials | Ductile Iron Cover -M (Fig. 4318 only), Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB, Stainless Steel -SS - (Specify Fig. 9735) |
| Product Type | Cleanout |
