Name: Inline Manual Shut Off Gate Valve Drain
Brand: Jay R. Smith Mfg. Co.
SKU: 7150 - 7165

Model 7150 - 7165

Inline Manual Shut Off Gate Valve Drain

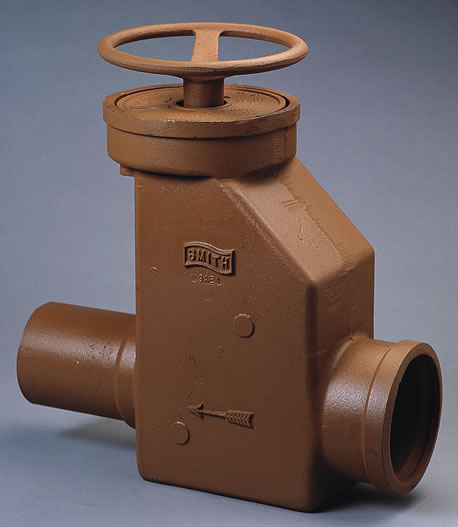

Our In-Line Manual Shut-Off Gate Valve is built to protect against sewage backflow surges. Designed for a long maintenance-free service life, the durable Duco coated cast iron shell houses a corrosion resistant spade type bronze gate and backwater flapper assembly. Complete closure of the gate requires that the operator turn the removable 8” (200) or 10” (250) diameter cast iron wheel handle when emergency backflow conditions arise.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal 7150 Valve	Backwater Valve - In-Line Manual Shut-off Gate Type [7150C, 7150Y, 7151C, 7151Y, 7152C, 7152Y, 7153C, 7153Y, 7154C, 7154Y, 7155C, 7155Y]	1 MB
Drawings	7150 Valve CAD Drawing	Backwater Valve - In-Line Manual Shut-off Gate Type [7150C, 7150Y, 7151C, 7151Y, 7152C, 7152Y, 7153C, 7153Y, 7154C, 7154Y, 7155C, 7155Y]	276 KB
Drawings	7160 Valve CAD Drawing	In-Line Manual Shut-Off Gate Valve [7160C, 7160Y, 7161C, 7161Y, 7162C, 7162Y, 7163C, 7163Y, 7164C, 7164Y, 7165C, 7165Y]	143 KB
Revit/BIM/ITM Files	7150 Valve Revit Drawing	Backwater Valve - In-Line Manual Shut-off Gate Type [7150C, 7150Y, 7151C, 7151Y, 7152C, 7152Y, 7153C, 7153Y, 7154C, 7154Y, 7155C, 7155Y]	380 KB
Submittals	Submittal 7160 Valve	In-Line Manual Shut-Off Gate Valve [7160C, 7160Y, 7161C, 7161Y, 7162C, 7162Y, 7163C, 7163Y, 7164C, 7164Y, 7165C, 7165Y]	846 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	718 KB
Specifications	Specifications for Backwater Valves	Specifications for Backwater Valves	103 KB
Images	7150 Valve (hi res jpg)	Backwater Valve - In-Line Manual Shut-off Gate Type [7150C, 7150Y, 7151C, 7151Y, 7152C, 7152Y, 7153C, 7153Y, 7154C, 7154Y, 7155C, 7155Y]	29 KB
Manuals	Technical Data for Backwater Valves	Technical Data for Backwater Valves	160 KB
Ordering	Order Guidelines for Backwater Valves	Order Guidelines for Backwater Valves	262 KB
Parts Manuals	Parts Order Guide for Backwater Valves	Parts Order Guide for Backwater Valves	550 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Variations	Outlet Sized for Service Weight -SW, (2) 3/8” (10) Tappings -TAP
Optional Materials	Galvanized Cast Iron -G
Product Type	Valve
Compliance/Certifications	ASME A112.14.1

Models

The Figure Numbers are defined With or Without Backwater Valve, Connection Style and Size.

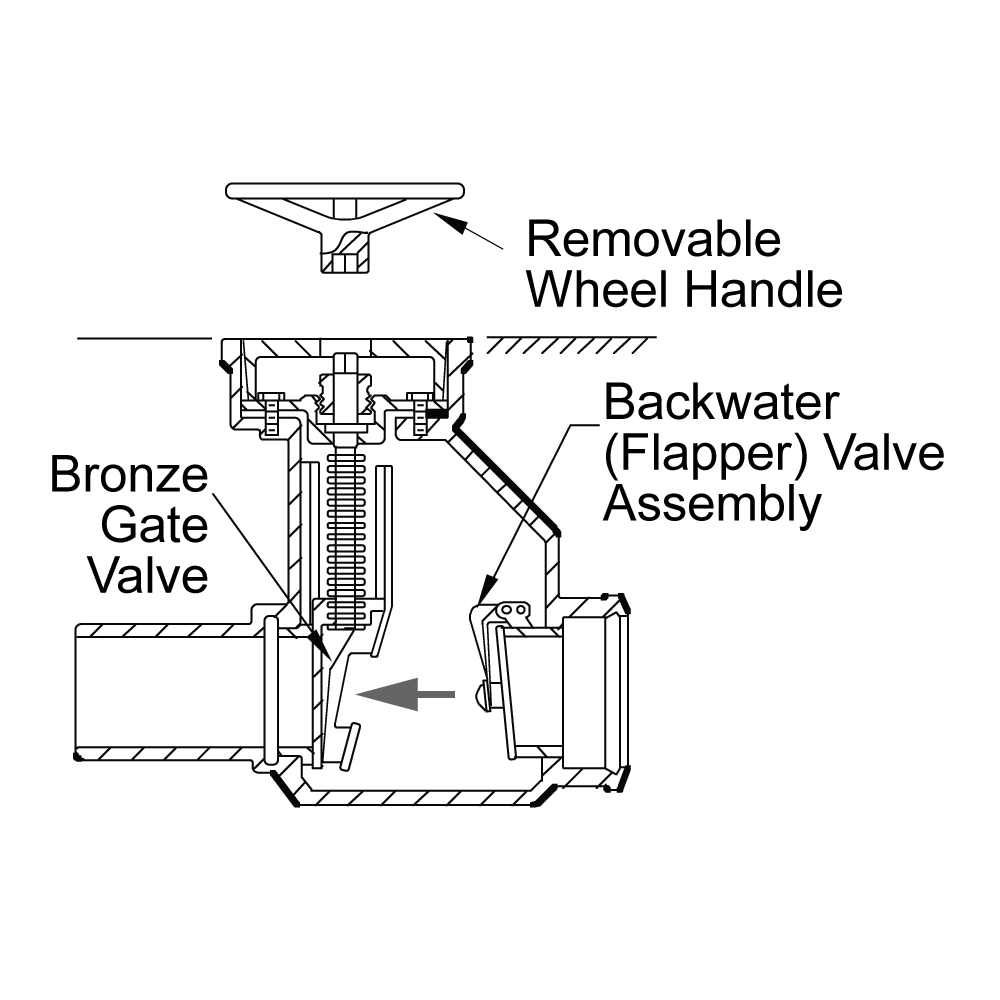

7150 Series Gate Valve with Backwater Valve

In-Line Gate Valve
with Backwater Valve Assembly

7150C | Caulk Inlet, No-Hub Outlet
7150Y | No-Hub Inlet & Outlet

7151C | 12" Extension, 4" Caulk Inlet & No-Hub Outlet
7151Y | 12" Extension, 4" No-Hub Inlet & Outlet

7152C | 24" Extension, 4" Caulk Inlet & No-Hub Outlet
7152Y | 24" Extension, 4" No-Hub Inlet & Outlet

7153C | 9-1/2" Extension, 6" Caulk Inlet & No-Hub Outlet
7153Y | 9-1/2" Extension, 6" No-Hub Inlet & Outlet

7154C | 21-1/2" Extension, 6" Caulk Inlet & No-Hub Outlet
7154Y | 21-1/2" Extension, 6" No-Hub Inlet & Outlet

7155C | With Extension Adaptor, Caulk Inlet & No-Hub Outlet
7155Y | With Extension Adaptor, No-Hub Inlet & Outlet

No Backwater Valve

In-Line Gate Valve
No Backwater Valve Assembly

7160C | Caulk Inlet, No-Hub Outlet
7160Y | No-Hub Inlet & Outlet

7161C | 12" Extension, 4" Caulk Inlet & No-Hub Outlet
7161Y | 12" Extension, 4" No-Hub Inlet & Outlet

7162C | 24" Extension, 4" Caulk Inlet & No-Hub Outlet
7162Y | 24" Extension, 4" No-Hub Inlet & Outlet

7163C | 9-1/2" Extension, 6" Caulk Inlet & No-Hub Outlet
7163Y | 9-1/2" Extension, 6" No-Hub Inlet & Outlet

7164C | 21-1/2" Extension, 6" Caulk Inlet & No-Hub Outlet
7164Y | 21-1/2" Extension, 6" No-Hub Inlet & Outlet

7165C | With Extension Adaptor, Caulk Inlet & No-Hub Outlet
7165Y | With Extension Adaptor, No-Hub Inlet & Outlet
