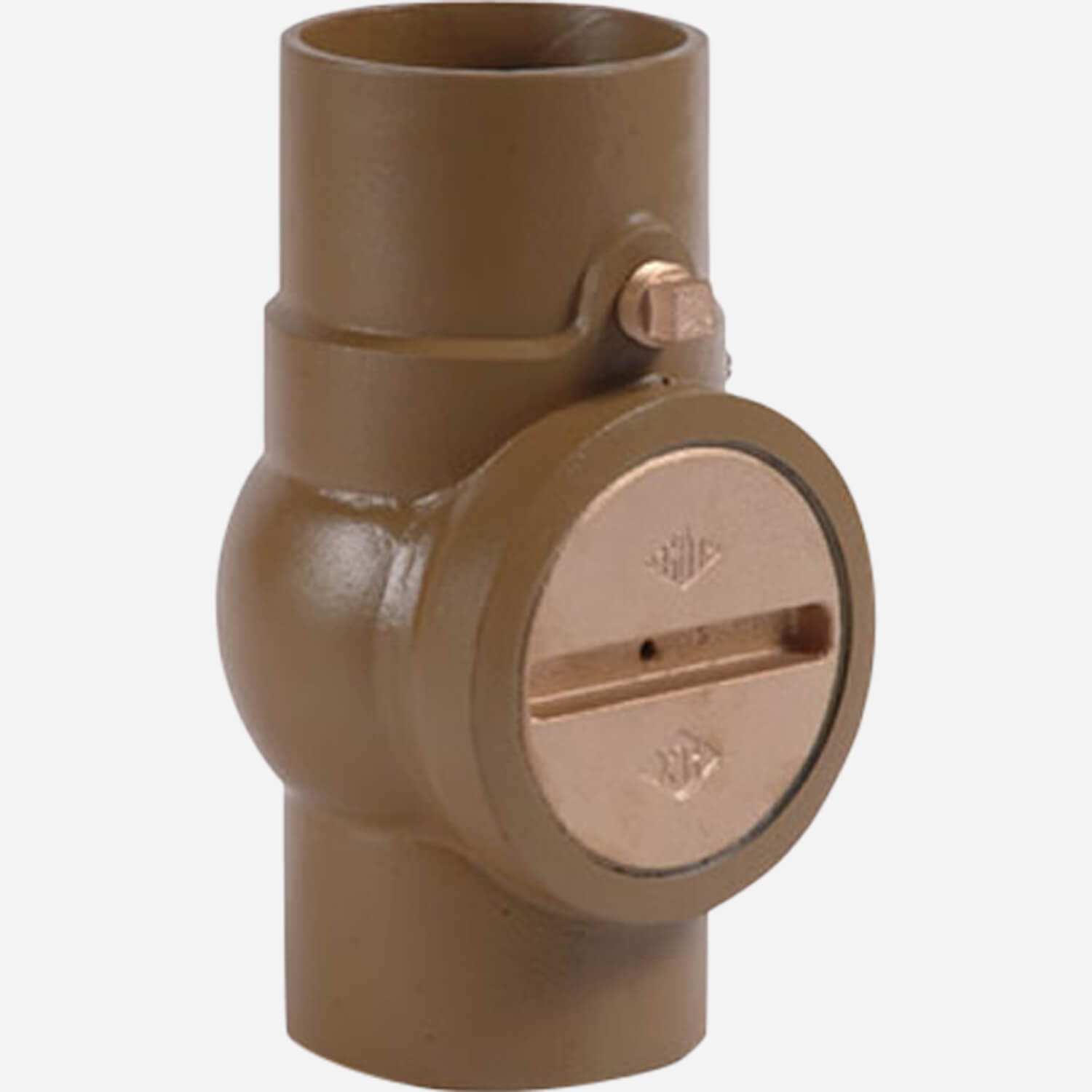

THE BOSS TEE- Cleanout and Test Tee

Figure Number:  4505

The Boss Tee works double duty in the sanitary DWV piping system. During construction, it hydrostatically tests the piping system for leaks. After testing it can be used as a standard cleanout tee.

Product Function:
Used in concealed drainage lines where a cleanout is desired that allows the testing of piping above through the use of an internal threading inside the tee

Contractor Friendly Features:
  • Sizes - 3, 4, 6”; No-hub and Hub & Spigot Outlets.
  • Safety – contractor not required to remove inflatable plug from inside of     stack with 5-15 psi pressure just upstream of the plug.
  • Reduces the chance of mold – due to water spilling inside the chase.
  • Controlled testing environment – provides contractor with effective means of controlling the filling and draining of piping system.
  • Reliability – better testing results because of reliable closure of the stack.
  • Time & Material savings – eliminates the inflatable plug in the vertical stack and the time to get it to seal properly.
  • Efficient – test up to 3 floors at a time. The inspector can use the gauge to verify pressure in the line.
  • Larger, spherical opening in the fitting allows for easy hand access for line testing/inspection/cleaning.
  • Cleanout tee remains in the stack after testing to be used for future maintenance and testing.


Regularly Furnished:
Duco Cast Iron Cleanout Tee with Internal Threading, 1/2(13) NPT Test Port with Raised Head Plug and Countersunk Taper Threaded Bronze Plug.
Product Details
  • Product Type:  Cleanout
Loading...
{{ promotion.promotionTypeName }}

{{ product.promotionCatchPhrase }}

Model Number: {{ product.modelNumber }}

{{ product.productName }}


View on {{ product.siteDisplayName }}
NameDescriptionFile Size
Specifications US Govt ComplianceItems complying with U.S. government specifications34 KBDownload
CSI Specifications for CleanoutsCSI Specifications for Cleanouts216 KB
NameDescriptionFile Size
Parts Order Guide for CleanoutsParts Order Guide for Cleanouts86 KBView

Optional Materials

  • Galvanized Cast Iron -G

Variations

  • Test Valve and Reference
  • Gauge Kit - TK
  • Test Plug - TP
