Figure Number: 0871

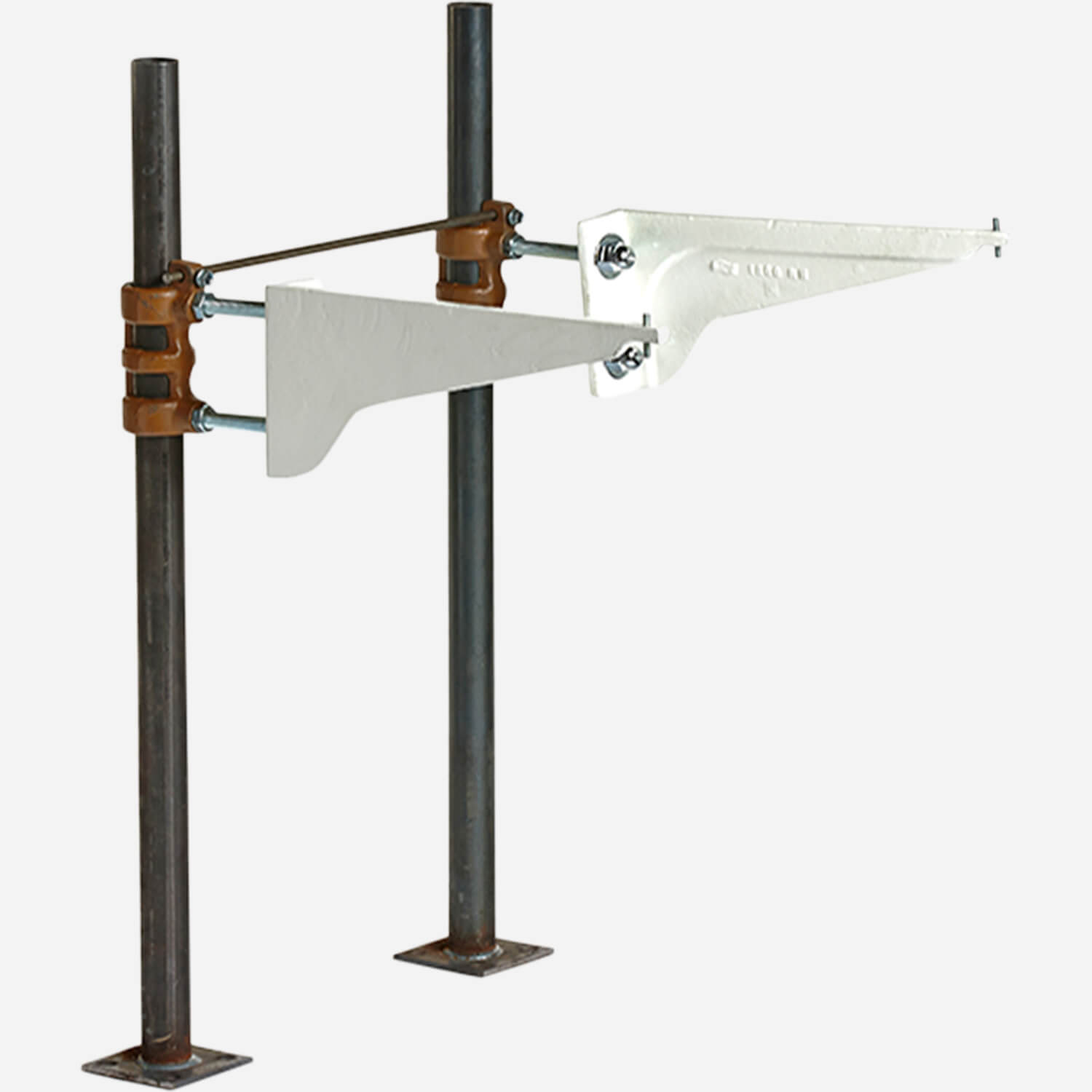

0871Pro-Set Upright with Acid Resistant Coated Exposed Arms with Offset Arms for Enameled Iron Service Sinks with Cast Iron under Basin - Floor Mounted

Our rigid floor mounted (Pro-Set) supports are fabricated of epoxy coated heavy gauge steel uprights welded to pre-drilled steel bases. Adjustable sleeves clamp onto the uprights when height specifications are met. Support arms coated for acid resistance are bolted to the sleeves and are visible under the lavatory upon installation. Leveling screws can be adjusted from underneath the arms to ensure a precise installation. Toggle bolts secure the lavatory to the arms.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
Technical Drawings
DWG 0871 SupportDWG 0871 SupportDWG37 KB
DWG 0871D SupportDWG 0871D SupportDWG55 KB
Literature / Videos
Submittal 0871D SupportSubmittal 0871D SupportPDF92 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Lavatory SupportsSpecifications for Lavatory SupportsDOC141 KB
Cross Ref Standard Fixture Support vs LaborSaver®Cross Ref Standard to Labor Saver Fixture SupportPDF241 KB
Technical Data for Lavatory SupportsTechnical Data for Lavatory SupportsPDF493 KB
Order Guidelines for Lavatory SupportsOrder Guidelines for Lavatory SupportsPDF120 KB
Parts Order Guide for Lavatory SupportsParts Order Guide for Lavatory SupportsPDF748 KB
