Figure Number: 5910
Contact a Representative

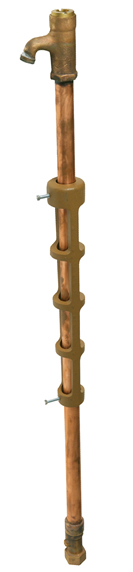

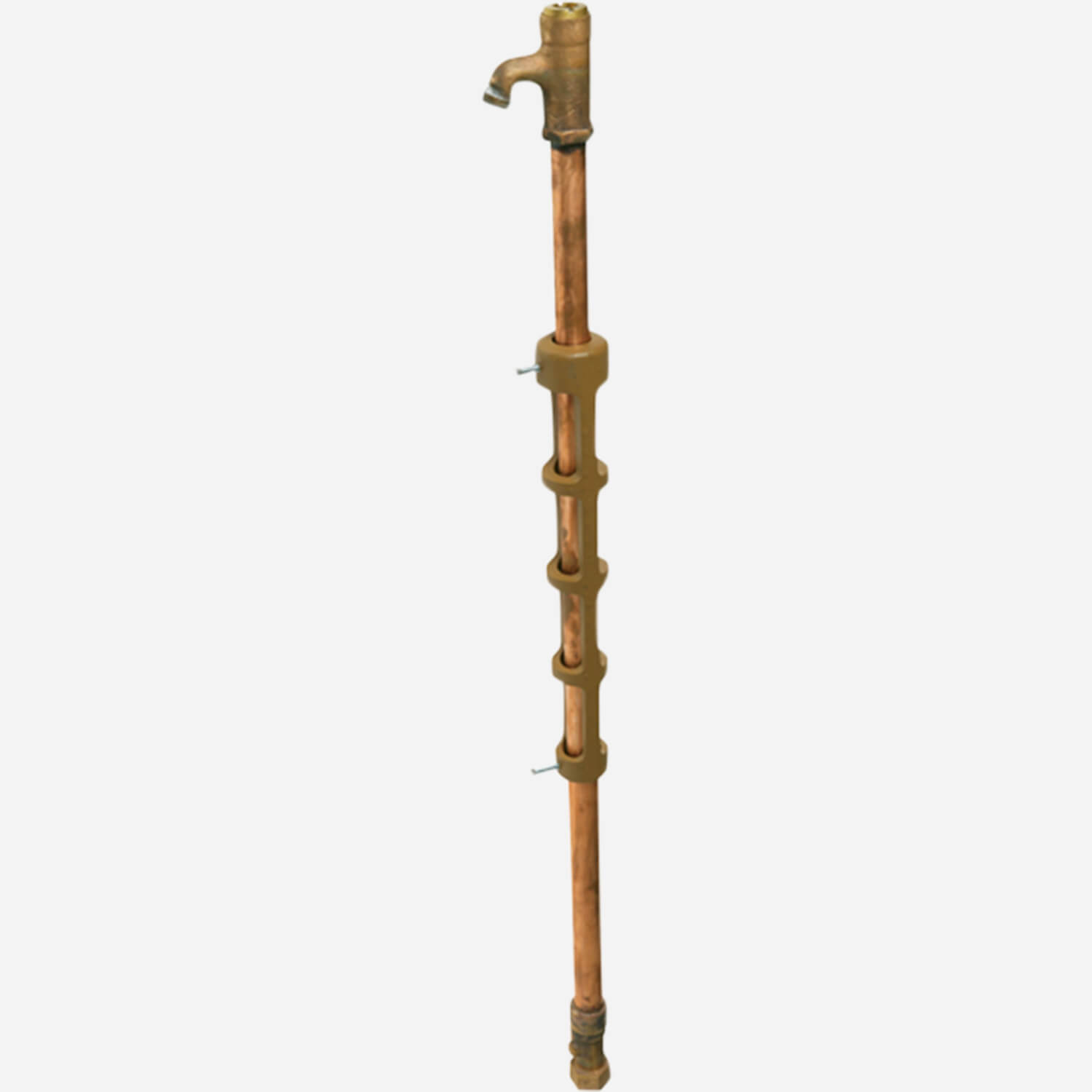

59103/4"-1" Inlet and Hose Connections Non-Freeze Post Hydrants

For freeze-resistant reliability in any climate, the valve casing and inlet of this corrosion-resistant bronze post hydrant are buried below the frost line. When the tamper-resistant valve is opened using the removable "t" handle key, water is channeled to the 3/4" hose connection above ground through the valve casing and protective casing guard. After use, water remaining in the pipe drains through a hole just above the valve protecting the pipe from bursting when temperatures drop below freezing.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    1"(25) Hose Connection -HC1 - Adaptor, 1/8"(3) NPT Drain Hole -NV, Secured Wheel Handle -WH, 3/4"(19) Vacuum Breaker -H - (Fig. 5910 Only), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Aluminum Casing Guard -AG
  • Product Type
    Hydrant
SubmittalSubmittal 5910, 5911 Hydrant
View
Technical Drawings
5910, 5911 Hydrant CAD DrawingNon-Freeze Post Hydrants [Figure 5910 | 3/4" Inlet and Hose Connection; 5911 | 1" Inlet and Hose Connection]DWG124 KB
5910 Hydrant Revit Drawing3/4" Inlet and Hose Connections Non-Freeze Post Hydrant [Figure 5910]RFA284 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5910 Hydrant (hi res jpg)3/4" Inlet and Hose Connections Non-Freeze Post Hydrants [Figure 5910]JPG23 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch
  • 5911 1" (25) Inlet and Hose Connections
