4220-4234Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops

This labor-saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. Its 7” (180) diam. the cast iron cover is designed for floors where its cast iron appearance is satisfactory. Constructed of Duco-coated cast iron, this cleanout is designed to support heavy load traffic. It is available with 2", 3", 4" and 5" outlets.

Cleanouts are available with No Hub Outlet [Figures 4220S, 4221S, 4223S, 4224S], Inside Caulk Outlet [Figures 4225C, 4226C, 4228C, 4229C] and Speed-Set Outlet [Figures 4231L, 4232L, 4233L, 4234L].

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Shows specifications for standard configuration. Configuration options may change specifications.

Variations
Flashing Flange -F, Flashing Flange and Clamp -F-C, Vandal Proof -U - Top, (2) 3/8” (10) Tappings -TAP
Optional Materials
Galvanized Cast Iron -G, Polished Bronze Top - PB
Product Type
Cleanout

SubmittalSubmittal 4220 Series Cleanout

View

Technical Drawings

4220 Cleanout CAD Drawing	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - No Hub Outlet [Fig. 4220S \| Gasket Seal - ABS Plug]	DWG88 KB
4225 Cleanout CAD Drawing	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Inside Caulk Outlet [Fig. 4225C \| Gasket Seal - ABS Plug]	DWG101 KB
4231 Cleanout CAD Drawing	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Speedi-Set Outlet [Fig. 4231L \| Gasket Seal - ABS Plug]	DWG121 KB
4220S Cleanout Revit Drawing	Floor Cleanout with "Twis-To-Floor®" Adjustable Round Cast Iron Top [4220S02-04 \| Extra-Heavy-Duty Top, Gasket Seal - ABS Plug for 2", 3", 4" pipe sizes]	RFA736 KB
4223S Cleanout Revit Drawings	Floor Cleanout [4223S02-04 \| Extra-Heavy-Duty Top, Taper Thread - Bronze Plug for 2", 3", 4" pipe sizes; 4223S06-06 \| Heavy Duty Top, Taper Thread - Bronze Plug for 6" pipe size; 4223S06-08 \| Heavy Duty Top, Taper Thread - Bronze Plug for 8" pipe size]	ZIP2 MB

Literature / Videos

Submittal 4225 Series Cleanout	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Inside Caulk Outlet [Fig. 4225C \| Gasket Seal - ABS Plug; 4226C \| Gasket Seal - Bronze Plug; 4228C \|Taper Thread - Bronze Plug; 4229C \|Taper Thread - ABS Plug]	PDF428 KB
Submittal 4231 Series Cleanout	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Speedi-Set Outlet [Fig. 4231L \| Gasket Seal - ABS Plug; 4232L \|Gasket Seal - Bronze Plug; 4234L \|Taper Thread - ABS Plug][Fig. 4233L \| Taper Thread - Bronze Plug - exclusive submittal page]	PDF847 KB
Specifications for Cleanouts	Specifications for Cleanouts	DOC216 KB
MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	PDF8 MB
MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	PDF712 KB
Cleanouts Flyer (pdf)	Flyer for Cleanouts	PDF847 KB

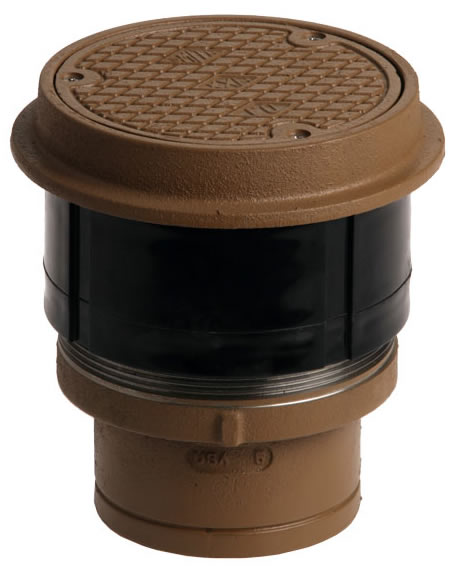

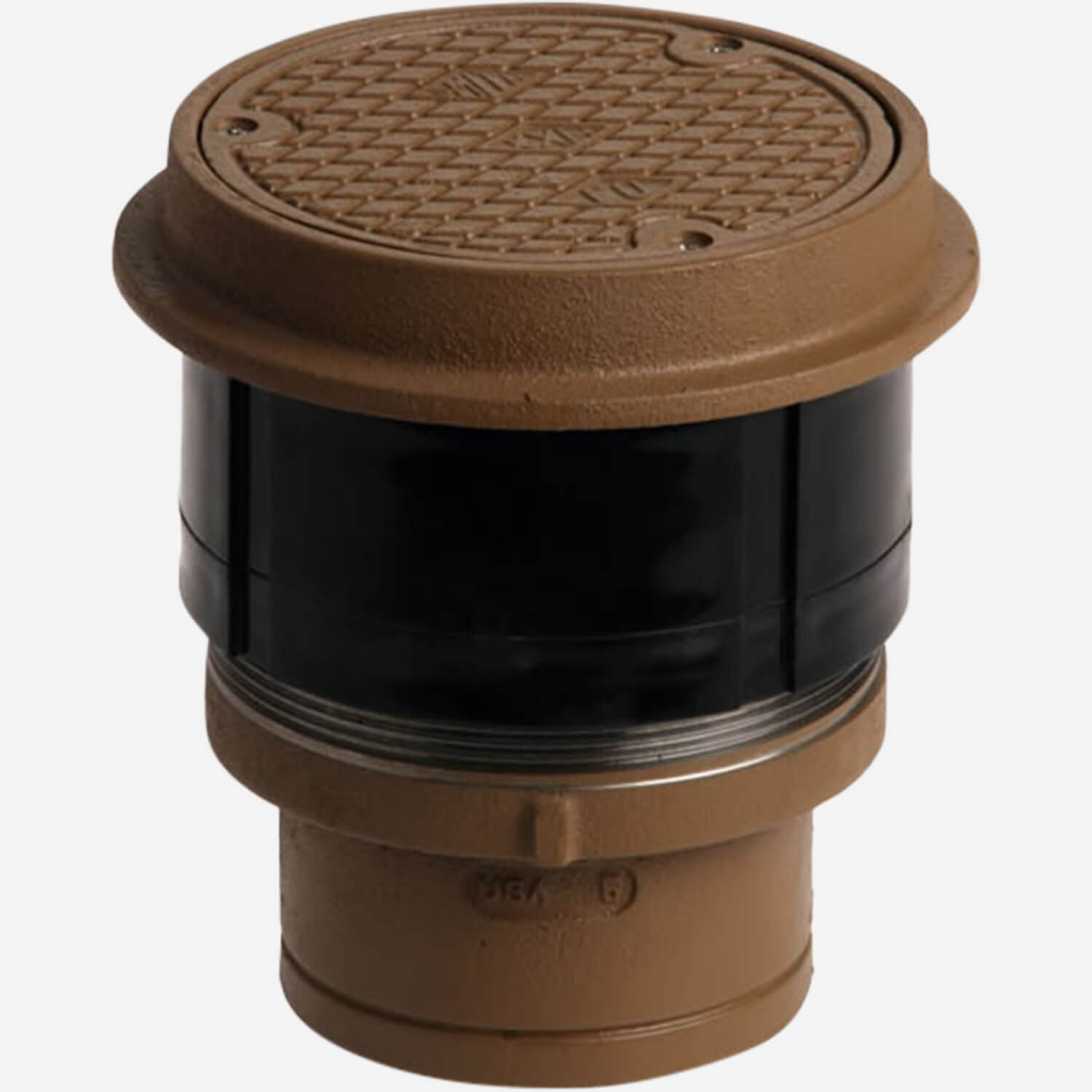

4220 or 4223 Cleanout (hi res jpg)	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - No Hub Outlet [Fig. 4220S \| Gasket Seal - ABS Plug; 4223S - Taper Thread - Bronze Plug]	JPG31 KB

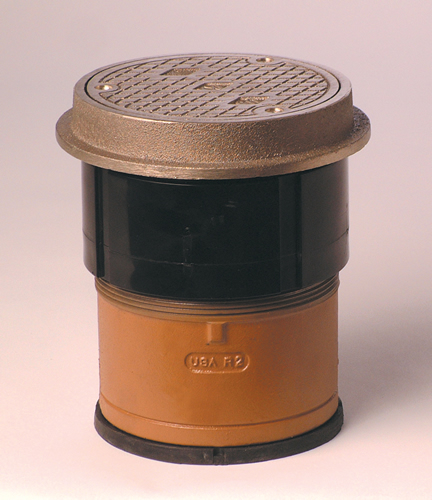

4231 Clean Out (hi res jpg)	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Speedi-Set Outlet [Fig. 4231L \| Gasket Seal - ABS Plug]	JPG152 KB

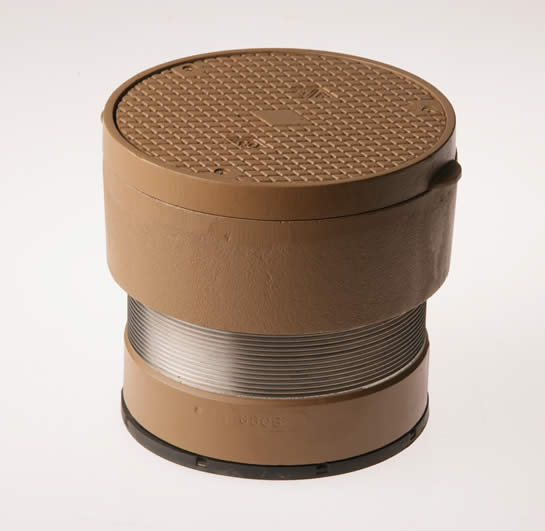

4233 Cleanout (hi res jpg)	Floor Cleanouts with Round Extra Heavy Duty Cast Iron Tops - Speedi-Set Outlet [Fig. 4233L \| Taper Thread - Bronze Plug]	JPG23 KB
Technical Data for Cleanouts	Technical Data for Cleanouts	PDF906 KB
Order Guidelines for Cleanouts	Order Guidelines for Cleanouts	PDF120 KB
Parts Order Guide for Cleanouts	Parts Order Guide for Cleanouts	PDF910 KB

Can't find what you are looking for? Get in touch

Speedi-Set Outlet
4231L | Gasket Seal - ABS Plug
4232L |Gasket Seal - Bronze Plug
4233L | Taper Thread - Bronze Plug
4234L |Taper Thread - ABS Plug
