Figure Number: 0230Y-M54NW Series
Contact a Representative

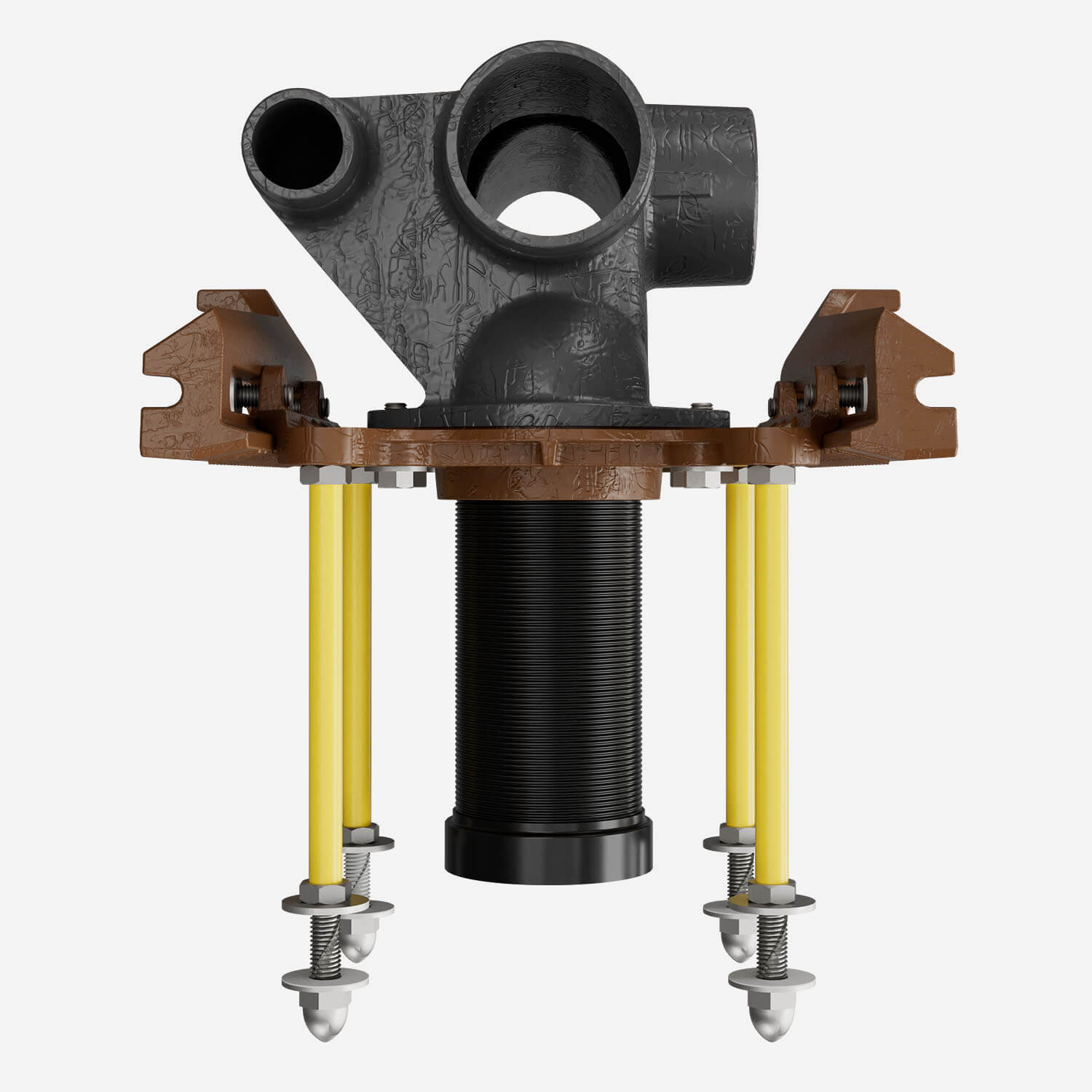

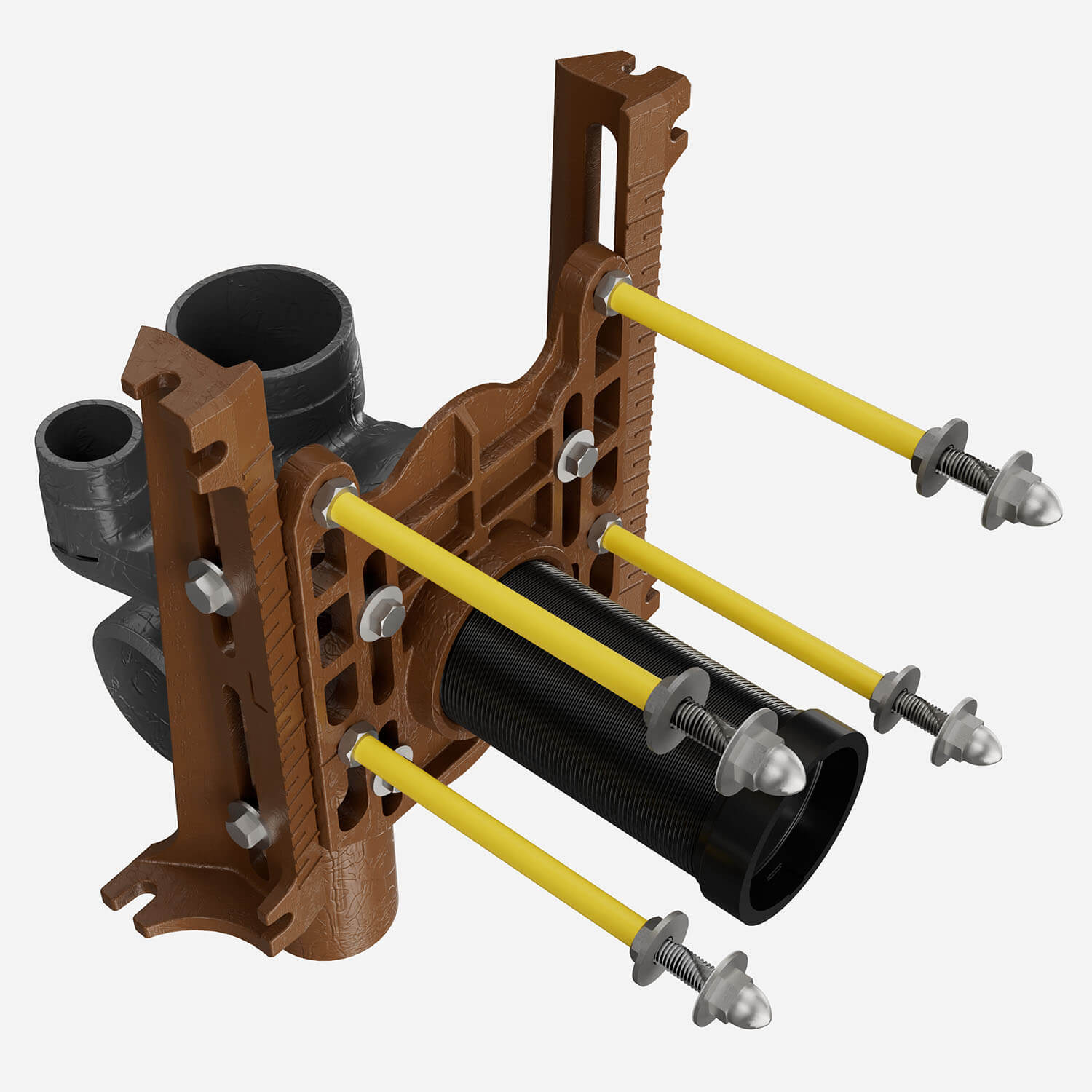

0230Y-M54NW SeriesAdjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting

Labor Saving Narrow Wall Closet Water Closet Supports - Vertical Fittings

  • Fits into narrow chase spaces, minimum of 9"  (228.6 mm) from the front of the faceplate to the back of the fitting
  • No rear anchor required
  • Creates more billable space for the architect
  • Two anchors for install versus 3 anchors on traditional carriers
  • 500 lbs (226.796 kg) load rating
  • Prefab compatible with the ability to anchor angle iron or strut at top or base of leg
  • Features Face Plate, Side Mounted Base Support Assembly
  • Additionally available with Adjustable Nipple, O-Ring
  • Available with single (left or right) or dual side inlets
  • Available as single sided or double-sided (back-to-back) installations

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Benefit
    Labor Saving
SubmittalSubmittal 0230Y-M54NW WC Support (pdf)
View
Technical Drawings
0230Y-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fittings with Face Plate, Side Mounted Base Support Assembly [0230Y-M54NW, 0230Y-M58-M54NW,0230DY-M58-M54NW] ZIP4 MB
0250Y-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets, Face Plate, Side Mounted Base Support Assembly [0250Y-M54NW, 0250Y-M58-M54NW, 0250DY-M54NW, 0250DY-M58-M54NW]ZIP5 MB
0240Y-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly [0240LY-M54NW, 0240RY-M54NW, 0240DY-M54NW]ZIP7 MB
0240Y-M58-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0240LY-M58-M54NW, 0240RY-M58-M54NW, 0240DY-M58-M54NW]ZIP8 MB
Literature / Videos
Submittal 0230Y-M58-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0230Y-M58-M54NW | Single; 0230DY-M58-M54NW | Double (back-to back)]PDF996 KB
Submittal 0240Y-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Side Inlet with Face Plate, Side Mounted Base Support Assembly [0240LY-M54NW, 0240RY-M54NW, 0240DY-M54NW]PDF898 KB
Submittal 0240Y-M58-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0240LY-M58-M54NW, 0240RY-M58-M54NW, 0240DY-M58-M54NW]PDF2 MB
Submittal 0250Y-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets with Face Plate, Side Mounted Base Support Assembly [0250Y-M54NW | Single; 0250DY-M54NW | Double (back-to-back)]PDF889 KB
Submittal 0250Y-M58-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting with Two Side Inlets with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0250Y-M58-M54NW | Single, 0250DY-M58-M54NW | Double] PDF995 KB
Narrow Wall Carrier Flyer (pdf)Narrow Wall Carrier Flyer (pdf)PDF575 KB
Can't find what you are looking for? Get in touch

0230Y-NW SERIES

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting (No Side Inlets) with Face Plate, Side Mounted Base Support Assembly [submittal]

0230Y-M54NW
Single-Sided

0230DY-M54MW
Double-Sided (back-to-back)

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting (No Side Inlets) with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]

0230Y-M58-M54NW
Single-Sided

0230DY-M58-M54MW
Double-Sided (back-to-back)

0240Y-NW SERIES

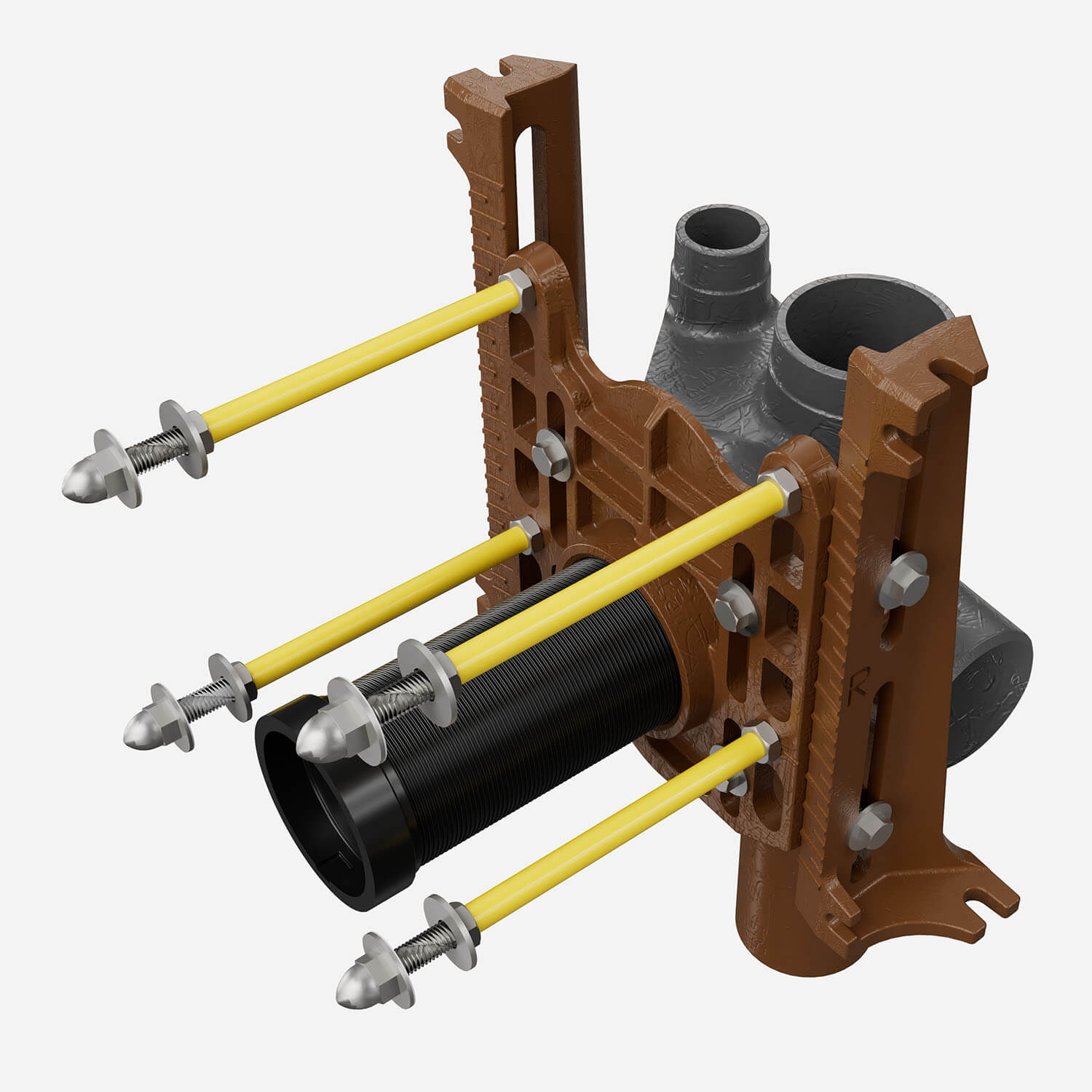

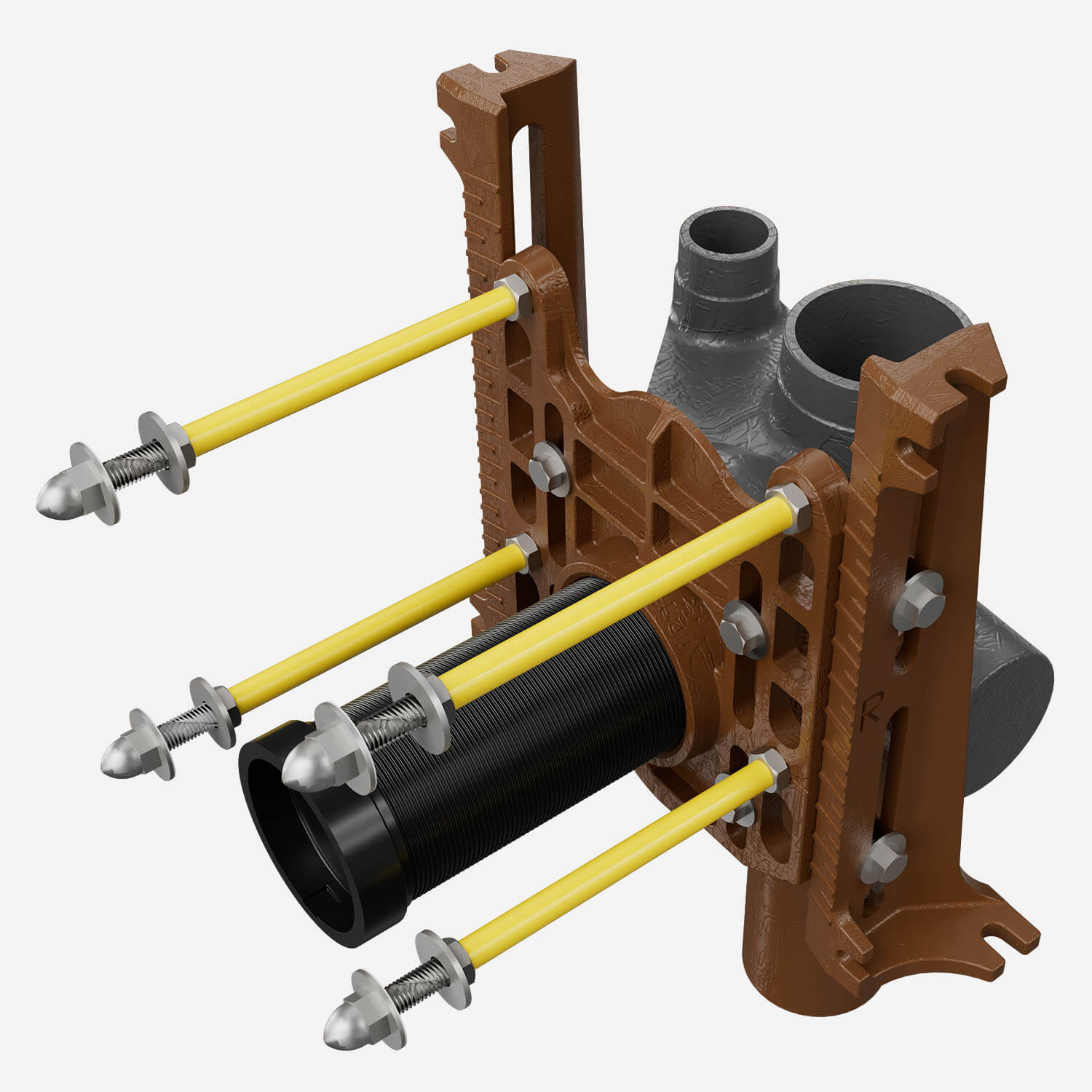

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly [submittal]

0240LY-M54NW
Single-Sided, Left Hand Inlet
0240RY-M54NW also available

0240DY-M54MW
Double-Sided (back-to-back)

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Single Side Inlet with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]

0240LY-M58-M54NW
Single-Sided, Left Hand Inlet
0240RY-M58-M54NW also available

0240DY-M58-M54NW
Double-Sided (back-to-back)

0250Y-NW SERIES

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Two Side Inlets with Face Plate, Side Mounted Base Support Assembly [submittal]

0250Y-M54NW
Single-Sided

0250DY-M54MW
Double-Sided (back-to-back)

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Vertical Fitting - Two Side Inlets with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]

0250Y-M58-M54NW
Single-Sided

0250DY-M58-M54MW
Double-Sided (back-to-back)
