Figure Number: 0211Y-M54NW Series

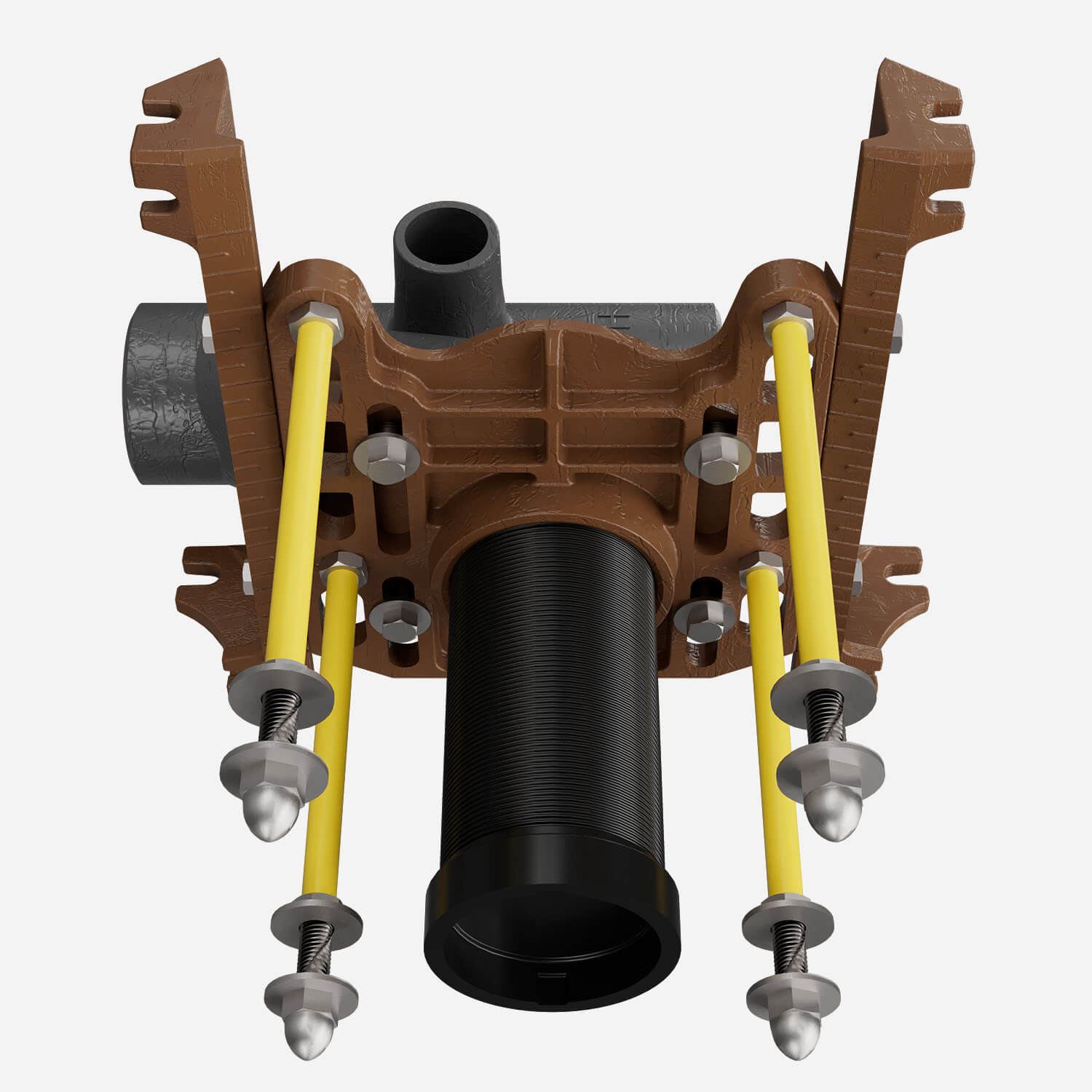

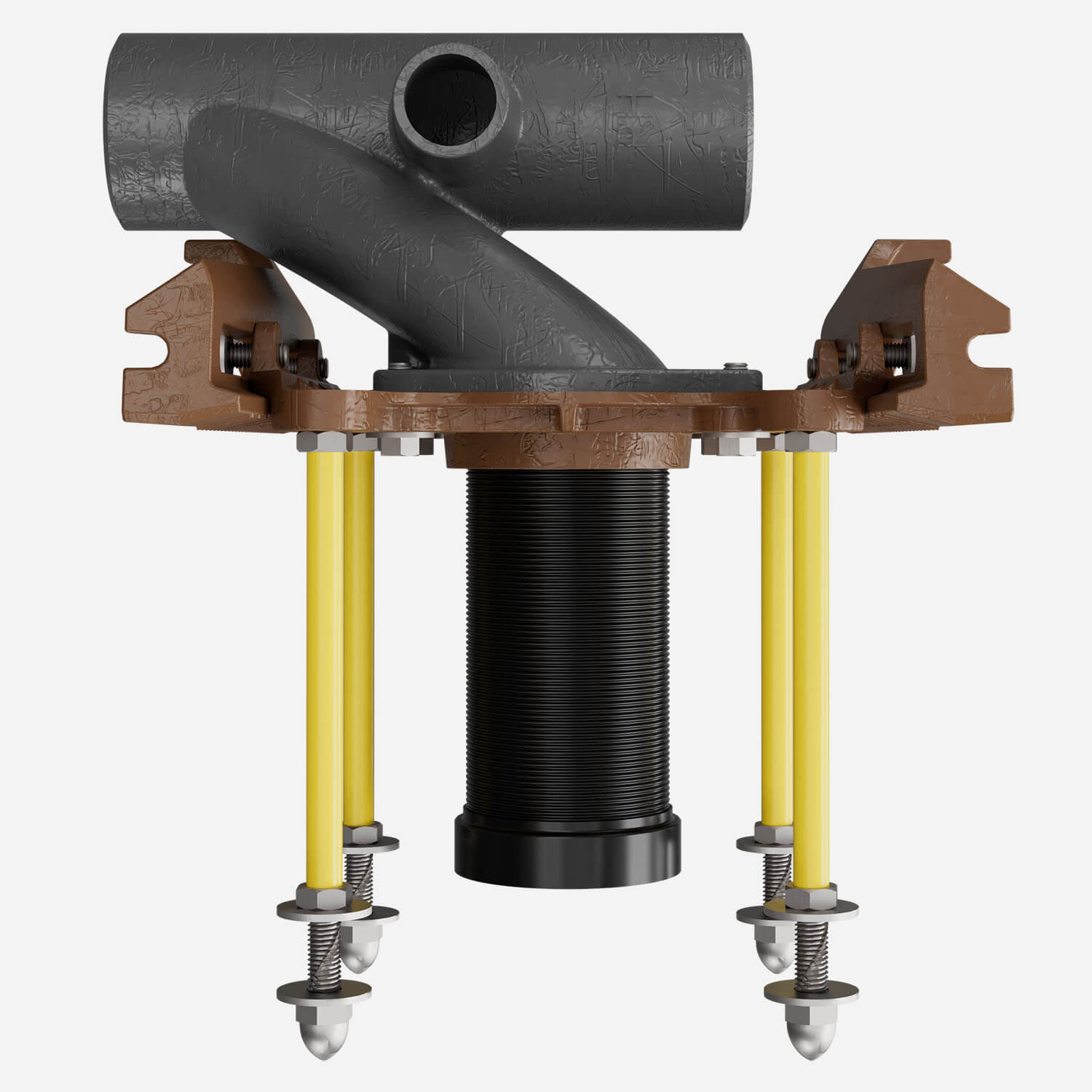

0211Y-M54NW SeriesAdjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fittings

Labor Saving Narrow Wall Closet Water Closet Supports - Horizontal Fittings

  • Fits into narrow chase spaces, minimum of 9"  (228.6 mm) from the front of the faceplate to the back of the fitting
  • No rear anchor required
  • Creates more billable space for the architect
  • Two anchors for install versus 3 anchors on traditional carriers
  • 500 lbs (226.796 kg) load rating
  • Prefab compatible with the ability to anchor angle iron or strut at top or base of leg

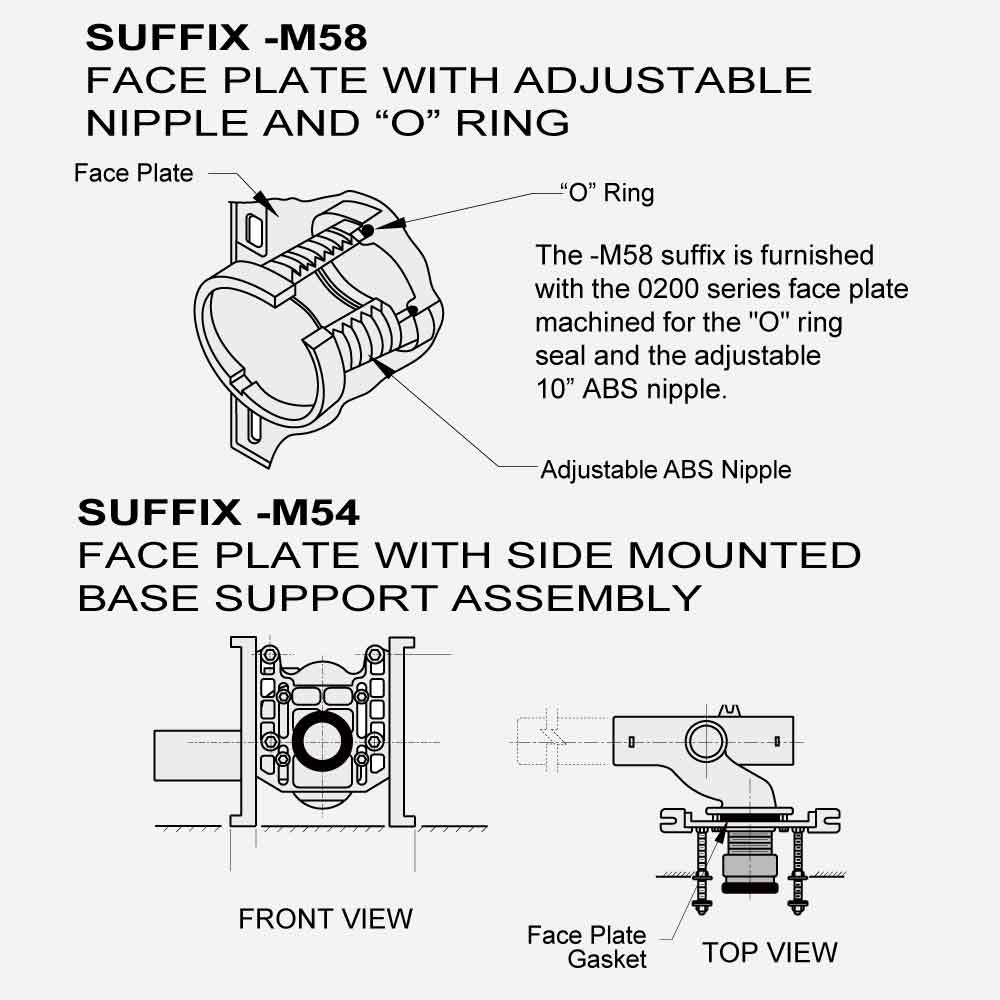

  • Available with Face Plate, Side Mounted Base Support Assembly
  • Additionally available with Adjustable Nipple, O-Ring
  • Available as single-sided or double-sided (back-to-back) installations

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Benefit
    Labor Saving
Technical Drawings
0211Y-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly [0211LY-M54NW, 0211RY-M54NW, 0211DY-M54NW]ZIP6 MB
0211Y-M58-M54NW WC Support (rfa/zip)Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [0211LY-M58-M54NW, 0211RY-M58-M54NW, 0211DY-M58-M54NW]ZIP6 MB
Literature / Videos
Submittal 0211Y-M58-M54NW WC Support (pdf)Adjustable Fixture Supports for Siphon Jet Water Closet - No-Hub Narrow Wall Horizontal Fitting with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [ 0211LY-M58-M54NW, 0211RY-M58-M54NW, 0211DY-M58-M54NW] PDF2 MB
Narrow Wall Carrier Flyer (pdf)Narrow Wall Carrier Flyer (pdf)PDF575 KB
Can't find what you are looking for? Get in touch

0211Y-NW SERIES

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting
with Face Plate, Side Mounted Base Support Assembly [submittal]

0211LY-M54NW
Single-Sided, Left Hand
0211RY-M54NW also available

0211DY-M54MW
Double-Sided (back-to-back)

Adjustable Fixture Supports for Siphon Jet Water Closet - Narrow Wall No-Hub Horizontal Fitting
with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring [submittal]

0211LY-M58-M54NW
Single-Sided, Left Hand
0211RY-M58-M54NW also available

0211DY-M58-M54NW
Double-Sided (back-to-back)
