Figure Number: 9833
Contact a Representative

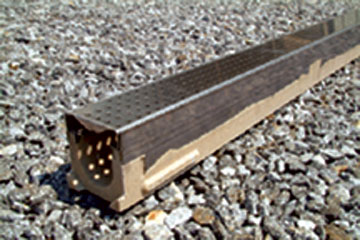

98333" Wide 'No Grade' 'Narrow' Polymer Concrete Channel Drain

These 3" wide channels are ideal for surface drainage applications where installation depth is restricted. Channel drains may be assembled in any length utilizing interlocking tongue and groove ends. This reduces installation time and cost. Four drain grate variations available: galvanized, stainless steel, ductile iron and gray plastic.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Closing End Cap (Stainless Steel or Galvanized), Galv. Steel Slotted Grate Load Class "A", Stainless Steel Slotted Grate Load Class "A", Galv. Steel Perforated Grate Load Class "A", Stainless Steel Perforated Grate Load Class "A", Decorative Plastic Gray Grate Load Class "A", Ductile Iron ADA Grate Load Class "C", (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Vinylester Resin, Stainless Steel Rail Edge
  • Product Type
    Drainage System
SubmittalSubmittal 9833 Drainage System
