Figure Number: 2470

2470Medium Duty Drains with Outlet, Hinged Grate and Free Standing Sediment Bucket

This 12" by 14" rectangular floor drain has a removable cast iron sediment bucket topped by medium duty hinged grate for fast and frequent cleaning. Engineered to withstand loads up 4,999 lbs. (2,250kg.), it is designed for industrial use where debris must be cleared from wastewater before draining. It is available with bottom and side outlets.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Flashing Clamp -C, NO-HUB Adaptor, Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Aluminum Bucket -AB, Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
Technical Drawings
2470, 2473 Floor Drain (dwg)Medium Duty Traffic Floor Drain with Offset Bottom Outlet, Hinged Grate, Free-Standing Sediment Bucket [2470C | Caulk Outlet; 2470T | Threaded Outlet; 2473C | With Flange, Caulk Outlet; 2473T | With Flange, Threaded Outlet]DWG163 KB
2475, 2478 Floor Drain (dwg)Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket [No Flange 2475C | Caulk Outlet; 2475T | Threaded Outlet; 2475Y | No-Hub Outlet; With Flashing Flange 2478C | Caulked; 2478T | Threaded; 2478Y | No-Hub]DWG105 KB
Literature / Videos
Submittal 2475, 2478 Floor Drain (pdf)Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket [No Flange 2475C | Caulk Outlet; 2475T | Threaded Outlet; 2475Y | No-Hub Outlet; With Flashing Flange 2478C | Caulked; 2478T | Threaded; 2478Y | No-Hub]PDF675 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

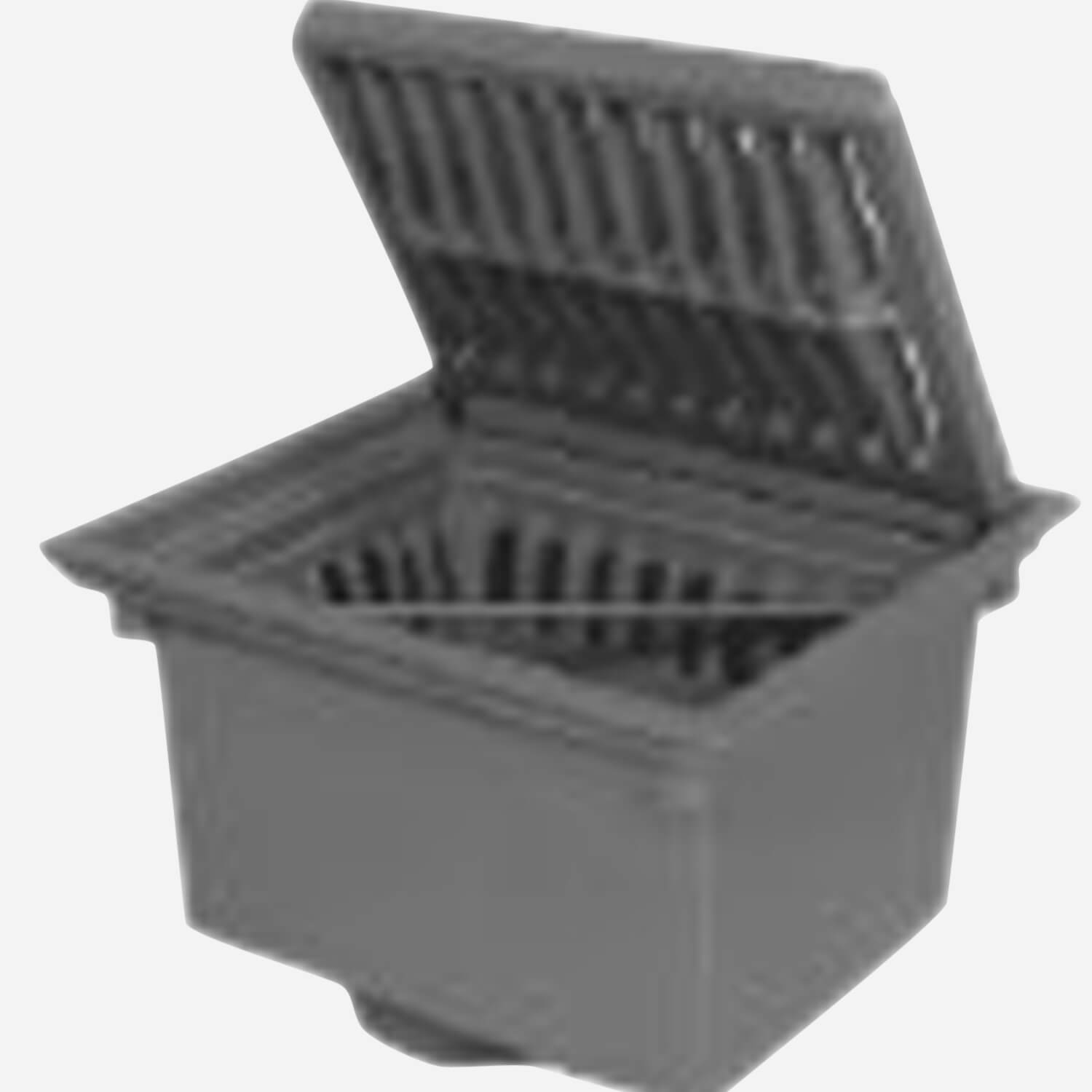

Medium Duty Traffic Floor Drain with Offset Bottom Outlet, Hinged Grate, Free-Standing Sediment Bucket
2470C | No Flange, Caulk Outlet
2470T | No Flange, Threaded Outlet
2473C | With Flashing Flange, Caulk Outlet
2473T | With Flashing Flange, Threaded Outlet

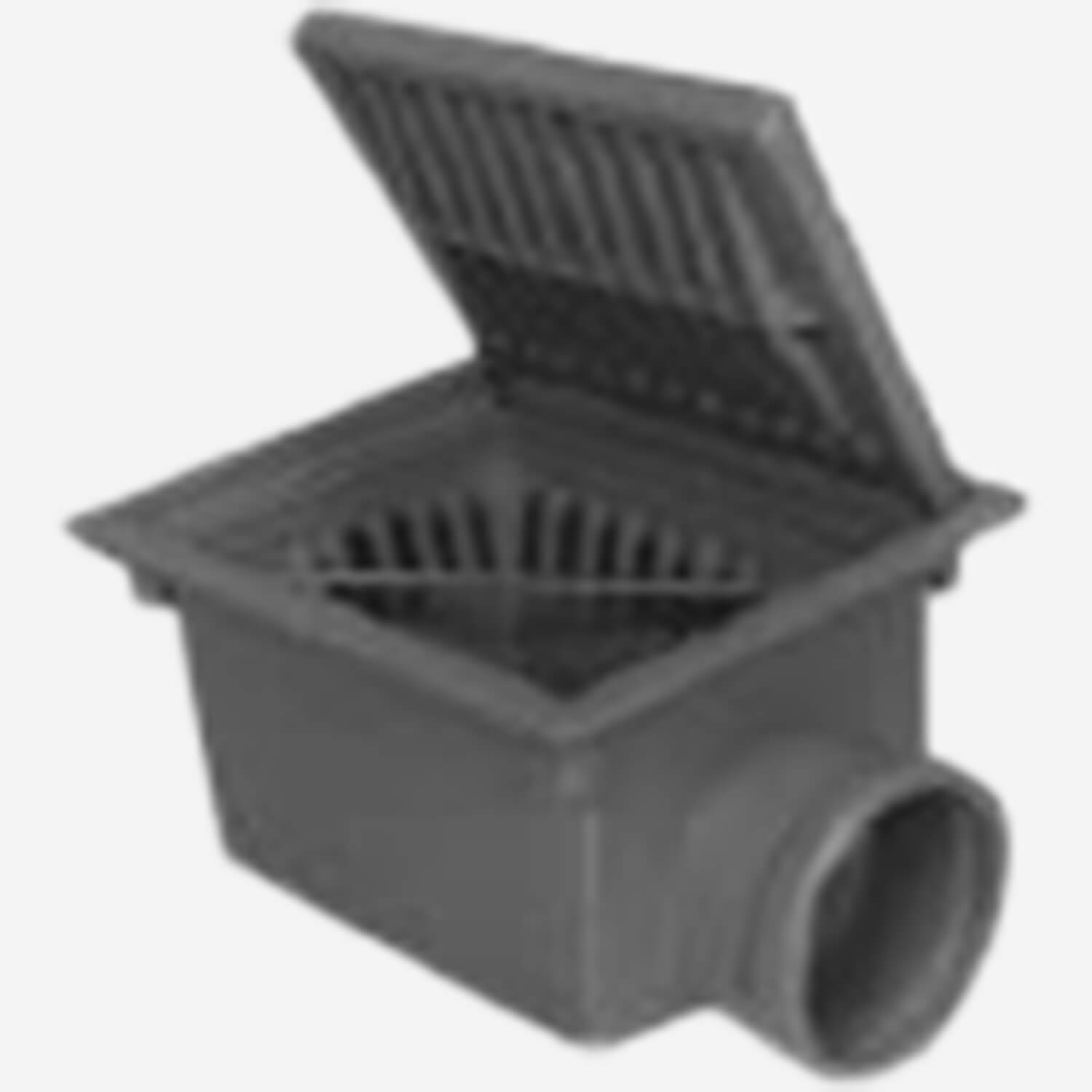

Medium Duty Traffic Floor Drain with Side Outlet, Hinged Grate, Free-Standing Sediment Bucket
2475C | No Flange, Caulk Outlet
2475T | No Flange, Threaded Outlet
2475Y | No Flange, No-Hub Outlet
2478C | With Flashing Flange, Caulk Outlet
2478T | With Flashing Flange, Threaded Outlet
2478Y | With Flashing Flange, No-Hub Outlet
