Figure Number: 2280 and 2285
Contact a Representative

2280 and 2285Light Duty Floor Drain

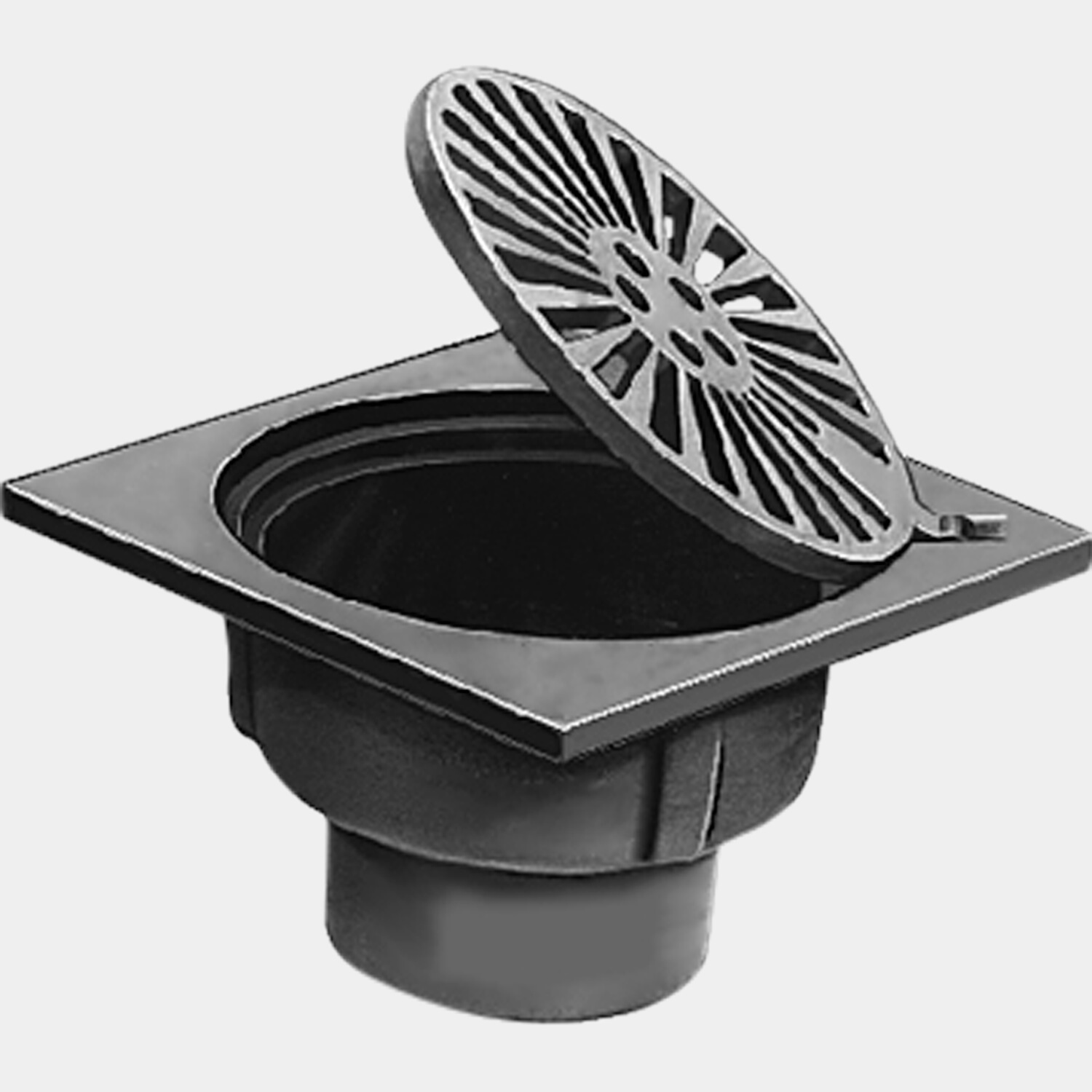

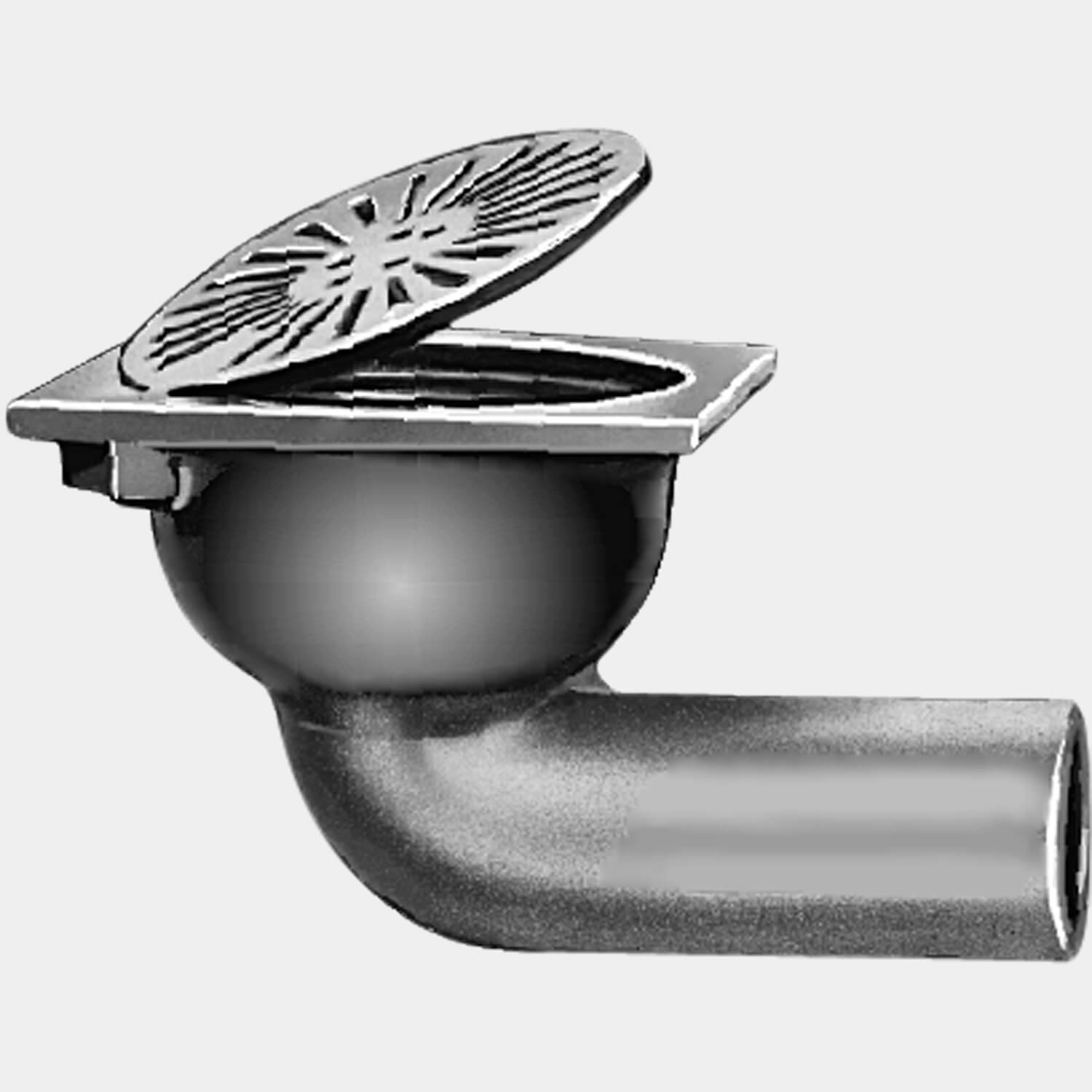

This light duty, Duco cast iron floor drain is engineered for installation on-grade and can support loads of less than 2,000 lbs. (900kg.). It is fitted with a 7.5" diam. slotted cast iron grate that is hinged to a 10"square top plate eliminating potential loss of the grate and preventing tripping and other hazards.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2280 only), Vandal Proof Top -U, T Threaded Outlet (Fig. 2280 only), (2) 3/8” (10) Tappings -TAP, Sediment Bucket -B
  • Optional Materials
    Galvanized Cast Iron -G
SubmittalSubmittal 2280 Floor Drain
View
Technical Drawings
2280 Floor Drain (dwg)Light Duty Drains - Hinged Grate (dwg)DWG43 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Can't find what you are looking for? Get in touch
  • 2280C Caulk Outlet
  • 2280T Threaded Outlet
  • 2285S Spigot Outlet Sized for No-Hub and/or Service Weight
