Figure Number: 4432 & 4433
Contact a Representative

4432 & 4433Lead Seal Plug with Round Frame and Cover

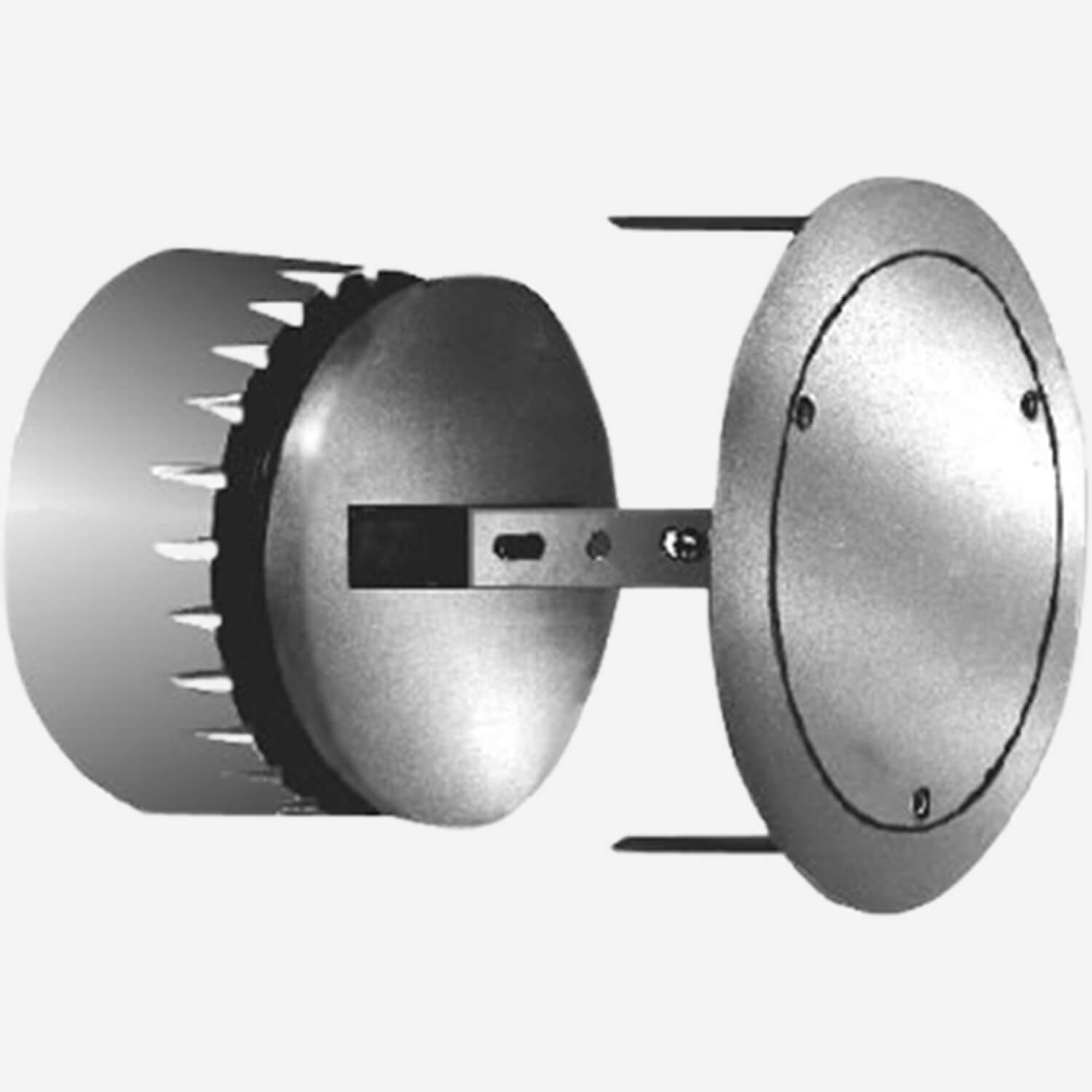

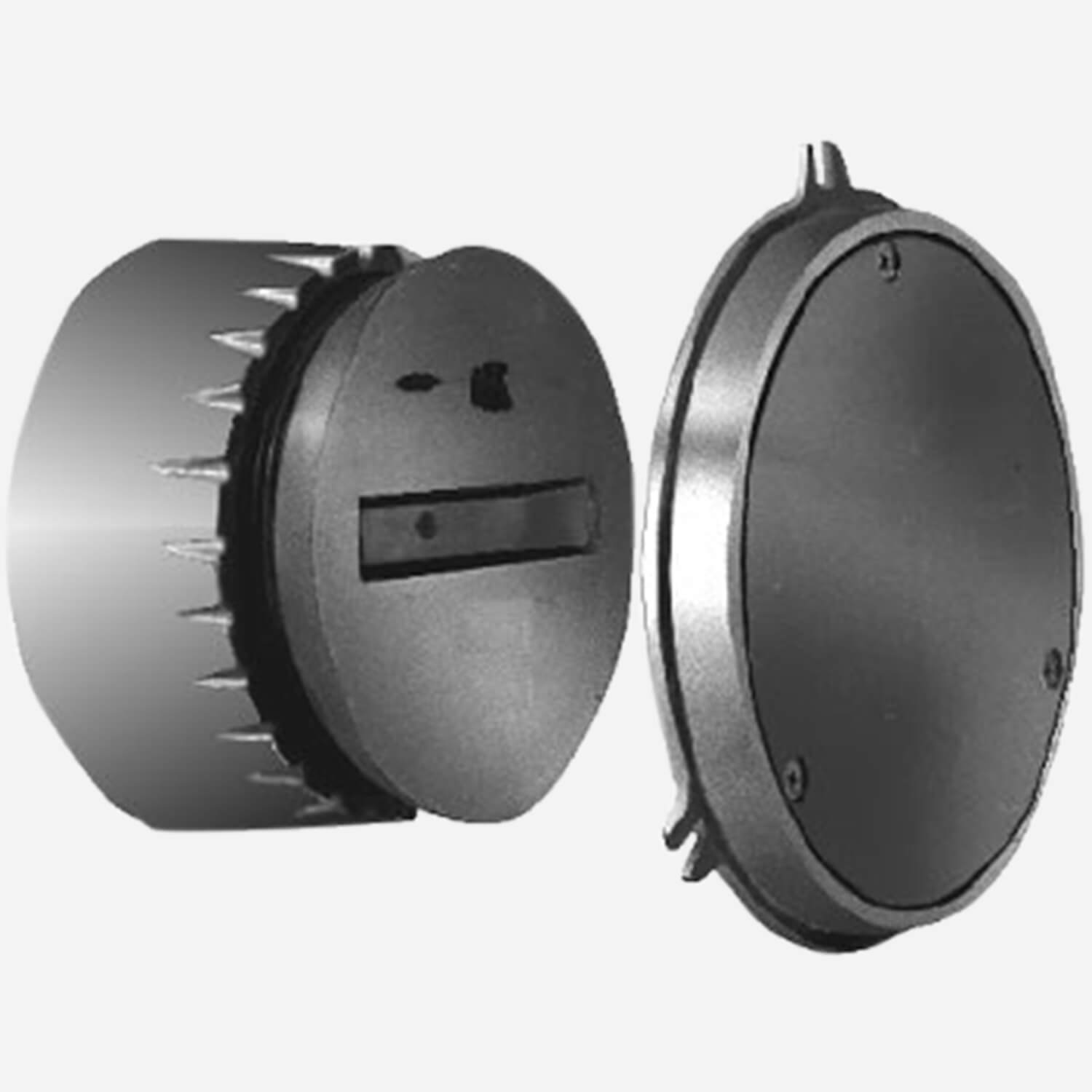

These Duco coated cast iron ferrule cleanouts are installed in hub openings in drainage piping where a cleanout is required. The cast iron, straight thread lead seal plug can be quickly and easily removed. The ferrule is grooved on the outside to prevent turning. Two circular chrome plated bronze frames are available. They are fitted with anchoring lugs that secure the frame to the wall. Fig. 4432 is designed for face-of-wall installation in tile, masonry, or dry wall construction. It is usually installed on an opening in the finished wall. Fig. 4433 is intended for flush-with-wall installation in plaster or wet wall construction and is installed during the wall construction.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof -U - Screws, T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Cast Bronze Plug -BP, Nickel Bronze -NB - Frame and Cover, Polished Bronze -PB - Frame and Cover
  • Product Type
    Cleanout
SubmittalSubmittal 4432, 4433 Cleanout (pdf)
View
Technical Drawings
4432, 4433 Cleanout (dwg)Caulk Ferrule Cleanouts with Frame and Cover - Cast Iron Lead Seal Plug - Chrome Plated Bronze Round Frame and Cover [4432 | Face-of-Wall Cover; 4433 | Flush-with-Wall Cover]DWG66 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Can't find what you are looking for? Get in touch

Caulk Ferrule Cleanouts with Frame and Cover
Cast Iron Lead Seal Plug - Chrome Plated Bronze Round Frame and Cover

Face-of Wall Round Frame-Cover
4432C02 | 2" Pipe Size, 6" Round Frame Size
4432C03 | 3" Pipe Size, 7" Round Frame Size
4432C04 | 4" Pipe Size, 7-1/2" Round Frame Size
4432C05 | 5" Pipe Size, 7-1/2" Round Frame Size
4432C06 | 6" Pipe Size, 10" Round Frame Size

Flush-with-Wall Round Cover
4433C02 | 2" Pipe Size, 4-1/2" Round Cover Size
4433C03 | 3" Pipe Size, 5-3/4" Round Cover Size
4433C04 | 4" Pipe Size, 6-1/2" Round Cover Size
4433C05 | 5" Pipe Size, 6-1/2" Round Cover Size
4433C06 | 6" Pipe Size, 8-1/2" Round Cover Size
