Figure Number: 4400 & 4402
Contact a Representative

4400 & 4402Lead Seal Plug with Round Access Cover

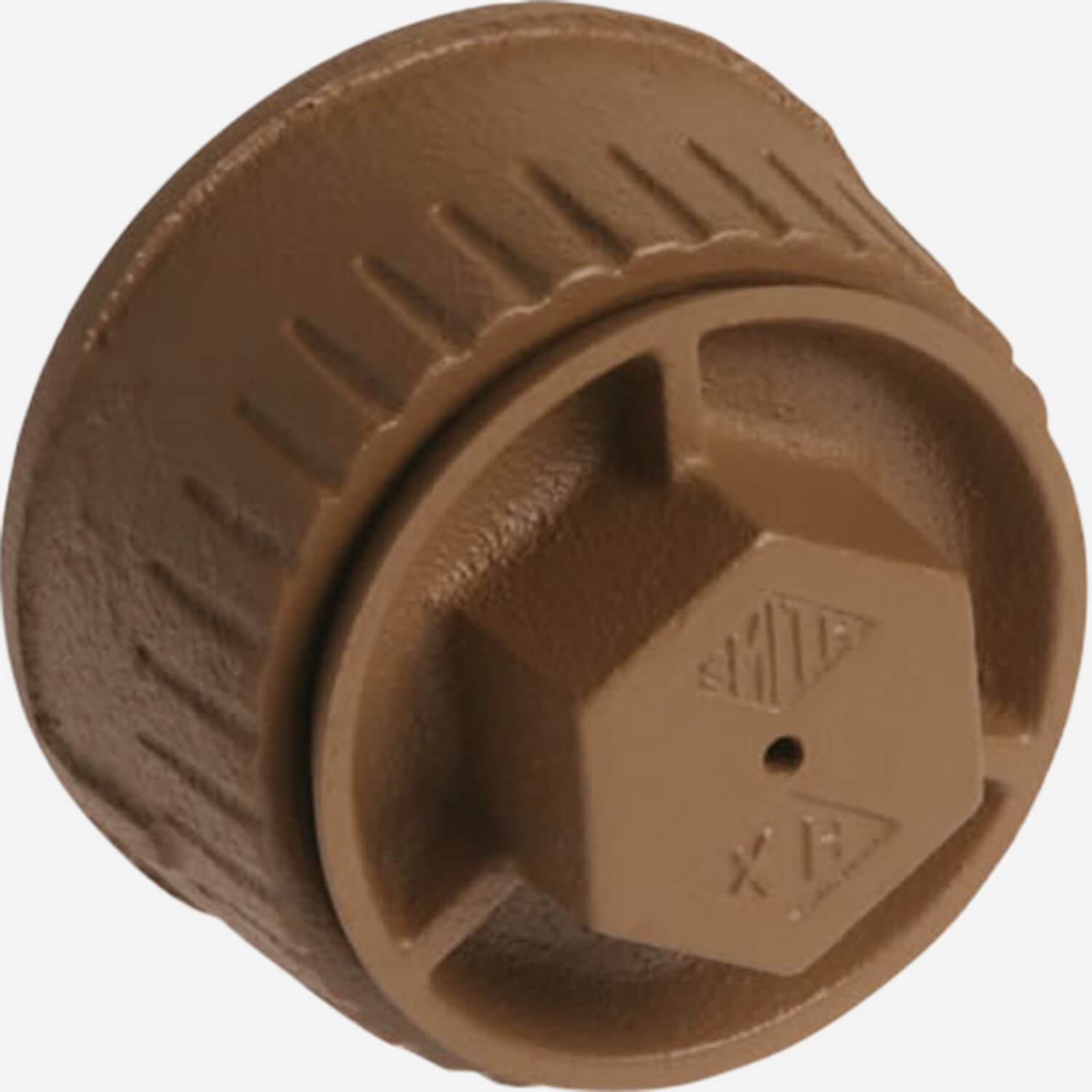

These Duco coated cast iron ferrule cleanouts are installed in hub openings on drainage piping where a cleanout is required. The cast iron straight thread lead seal plug can be quickly and easily removed for cleaning. The ferrule is ribbed on the outside to prevent turning. A stainless steel cover is available if desired for finished walls when the ferrule is installed in vertical piping.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Longer Center Screw -LS - 6"(150) Length, T-Handle Plug -TP Plug Tapped 1/4"(6)-20 Thread, Vandal Proof -U - Screws, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Cast Bronze Plug -BP, Polished Bronze -PB - Cover, Prime Coated Steel Cover -PC
  • Product Type
    Cleanout
SubmittalSubmittal 4400, 4402 Cleanout (pdf)
View
Technical Drawings
4400, 4402 Cleanout (dwg)Caulk Ferrule Cleanout - Cast Iron Lead Countersunk Seal Plug [4400C | Plug only 4402C | Plug with Round Stainless Steel Cover and 1/4-20 x 2-1/2" Flat Head Machine Screw]DWG35 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for CleanoutsSpecifications for CleanoutsDOC216 KB
Technical Data for CleanoutsTechnical Data for CleanoutsPDF906 KB
Order Guidelines for CleanoutsOrder Guidelines for CleanoutsPDF120 KB
Parts Order Guide for CleanoutsParts Order Guide for CleanoutsPDF910 KB
Can't find what you are looking for? Get in touch

Caulk Ferrule Cleanout - Cast Iron Lead Countersunk Seal Plug

Plug Only
4400C02 | 2" Pipe Size
4400C03 | 3" Pipe Size
4400C04 | 4" Pipe Size
4400C05 | 5" Pipe Size
4400C06 | 6" Pipe Size

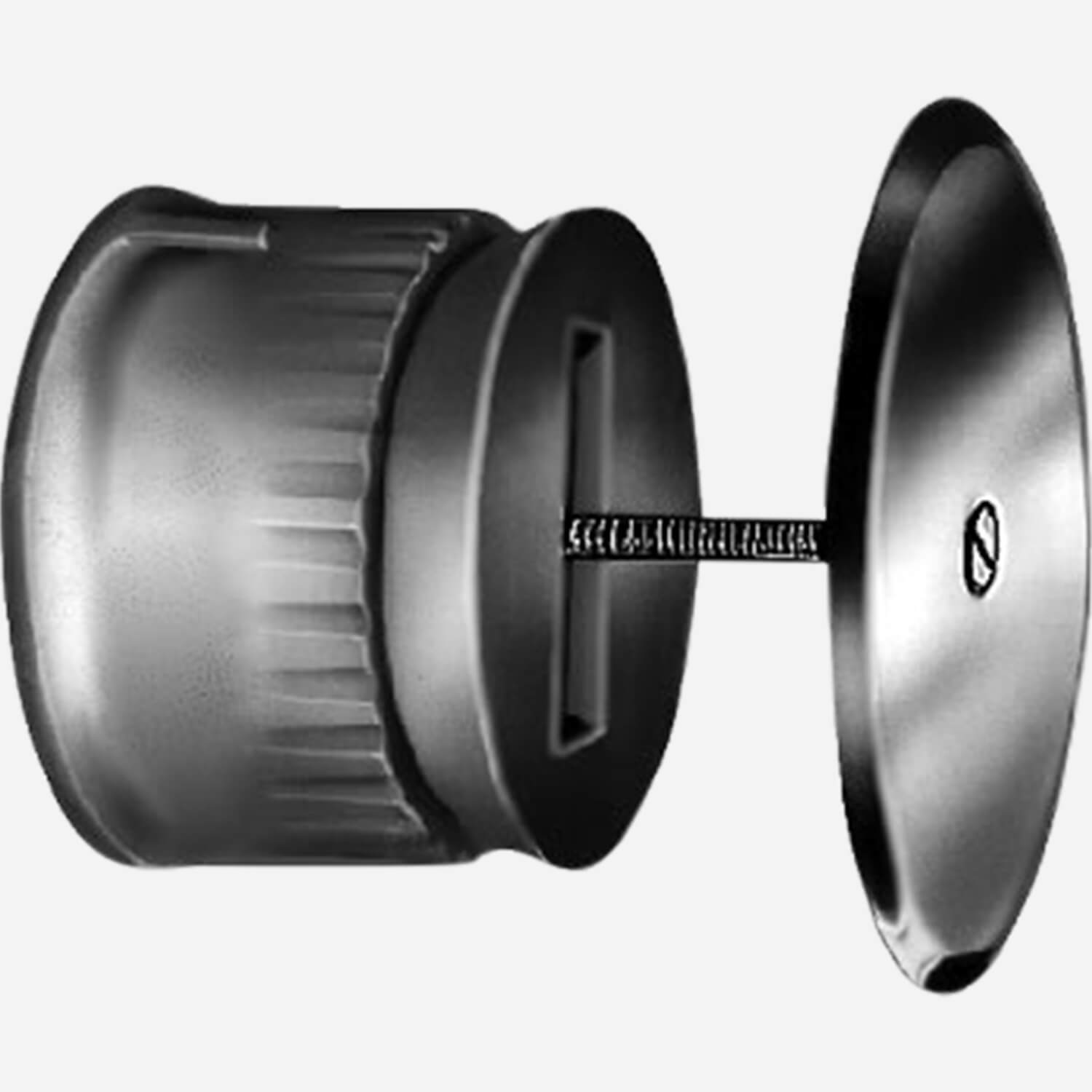

Plug with Stainless Steel Round Cover
and 1/4-20 x 2-1/2" Flat Head Machine Screw
4402C02 | 2" Pipe Size, Plug with 4-1/4" Cover
4402C03 | 3" Pipe Size, Plug with 5-1/2" Cover
4402C04 | 4" Pipe Size, Plug with 5-1/2" Cover
4402C05 | 5" Pipe Size, Plug with 7" Cover
4402C06 | 6" Pipe Size, Plug with 9-1/4" Cover
