Figure Number: 0617
Contact a Representative

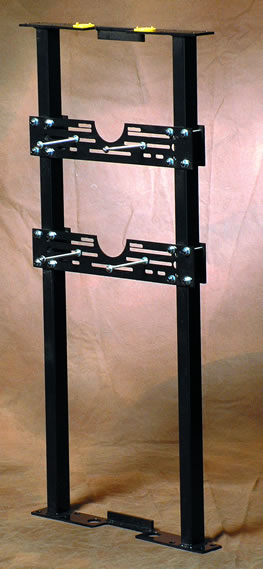

0617Labor Saver® Support for Off-Floor Urinals with Upper and Lower Bearing Plates

Figure 0617 is an fixture support for blowout or washout urinal which feature wall hangers. An upper and lower bearing plate provide ample support. The support installed behind the finished wall providing additional support for wall mounted urinal.

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations

This contractor labor saving support with hanger plate for blowout and washout urinals has been designed to speed up the installation process by using a one-piece, pre-assembled rigid steel frame construction. This innovative support is easy to adjust and allows for installation in narrow wall and metal stud configurations. Meets or exceeds the applicable requirement of ASME A112.6.1 M 1997 and is IAPMO Listed.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

If a single upper bearing plate is sufficient, see 0616.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Urinal Mounting Support
  • Benefit
    Labor Saving
  • Compliance/Certifications
    ASME A112.6.1M, UPC
SubmittalSubmittal 0617 Urinal Support (pdf)
View
Technical Drawings
0617 Urinal Support (3D, dwg)Labor Saver® Support with Hanger Plate for Blowout and Washout Urinals – Upper and Lower Bearing PlatesDWG152 KB
0617 Urinal Support (dwg)Labor Saver® Support with Hanger Plate for Blowout and Washout Urinals – Upper and Lower Bearing PlatesDWG94 KB
0617 Urinal Support (rfa)Labor Saver® Support with Hanger Plate for Blowout and Washout Urinals – Upper and Lower Bearing PlatesRFA480 KB
