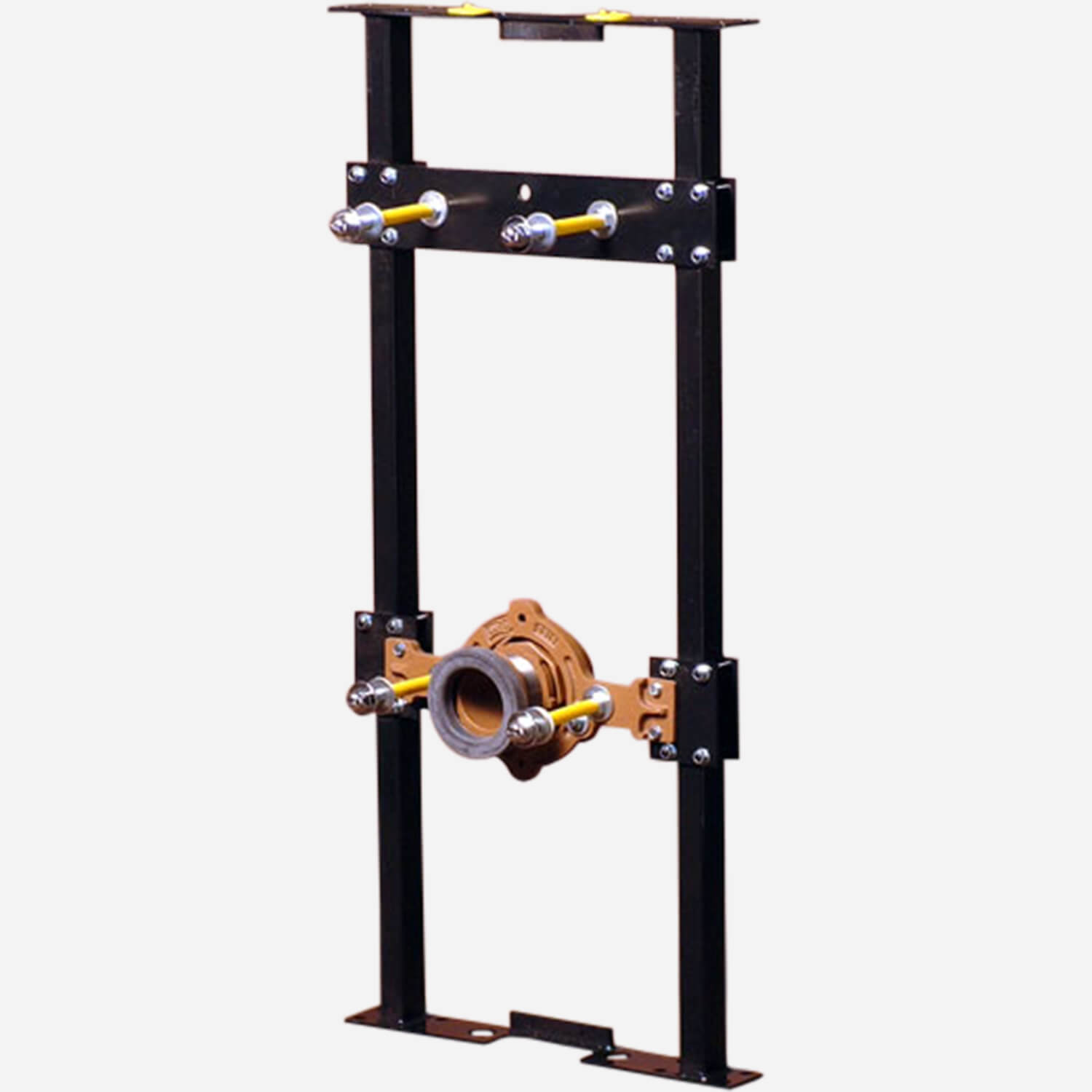

0923Wall Mounted Labor Saver® Upright with Supporting Stud and Adjustable Coupling for Surgical Scrub Up and Flushing Rim Sink

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

The welded, unitized frame of our Labor Saver® floor mounted sink support drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. Two sets of carriers are clamped to the uprights where height specifications dictate. The upper carrier supports the stubs for the surgical scrub up sink. The lower carrier supports the adjustable Duco coated cast iron water closet outlet, and additional sink supports stubs.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
  • Patent
    6,360,381
  • Benefit
    Labor Saving
SubmittalSubmittal 0923 or 0924 Support
View
Technical Drawings
0923 and 0924 Fixture Support CAD DrawingFloor Mounted Fixture Support for Surgical Scrub Up and Flushing Rim Sink [0923 | 3" (80 mm) Outlet Connection; 0924 | 4" (100 mm) Outlet Connection]DWG210 KB
0923 and 0924 Fixture Support Revit DrawingSurgical Scrub Up and Flushing Rim Sink [0923 | 3" (80 mm) Outlet Connection; 0924 | 4" (100 mm) Outlet Connection]ZIP3 MB
Literature / Videos
Submittal 0923-KW or 0924-KW SupportFloor Mounted Fixture Support for Surgical Scrub Up and Flushing Rim Sink with Supporting Plate for Wall-Mounted Knee-Action Valve [0923-KW | 3" Outlet Connection; 0924-KW | 4" Outlet ConnectionPDF221 KB
Lavatory Support Flyer (pdf)Flyer Lavatory SupportPDF3 MB
Specifications for Lavatory SupportsSpecifications for Lavatory SupportsDOC141 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Cross Ref Standard Fixture Support vs LaborSaver®Cross Ref Standard to Labor Saver Fixture SupportPDF241 KB

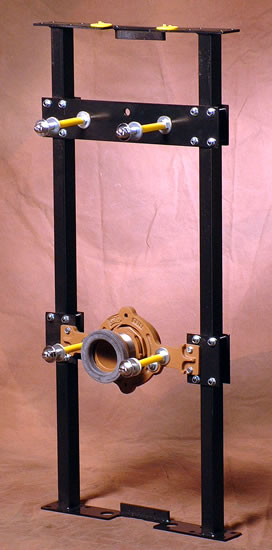

0924 Fixture Support (hi res jpg)Floor Mounted with Labor Saver Uprights for Surgical Scrub Up and Flushing Rim SinkJPG29 KB
Technical Data for Lavatory SupportsTechnical Data for Lavatory SupportsPDF493 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Order Guidelines for Lavatory SupportsOrder Guidelines for Lavatory SupportsPDF120 KB
Parts Order Guide for Lavatory SupportsParts Order Guide for Lavatory SupportsPDF748 KB
Can't find what you are looking for? Get in touch

Floor Mounted Fixture Support for Surgical Scrub Up and Flushing Rim Sink
Figure 0923 | 3" (80 mm) Outlet Connection
Figure 0924 | 4" (100 mm) Outlet Connection
Figures 0923 and 0924 | With Supporting Stud and Adjustable Coupling for Back Outlet Flushing Rim Service Sink

Floor Mounted Fixture Support for Surgical Scrub Up and Flushing Rim Sink with Supporting Plate for Wall-Mounted Knee-Action Valve
Figure 0923-KW | 3" (80 mm) Outlet Connection
Figure 0924-KW | 4" (100 mm) Outlet Connection
Figures 0923-KW and 0924-KW | With Supporting Stud and Adjustable Coupling for Back Outlet Flushing Rim Service Sink

  • 0923-KW With Supporting Plate for Knee-Action Valve - 3" Outlet Connection
  • 0924-KW With Supporting Plate for Knee-Action Valve -4" Outlet Connection
  • 0924 4" Outlet Connection
  • 0923 3" Outlet Connection
