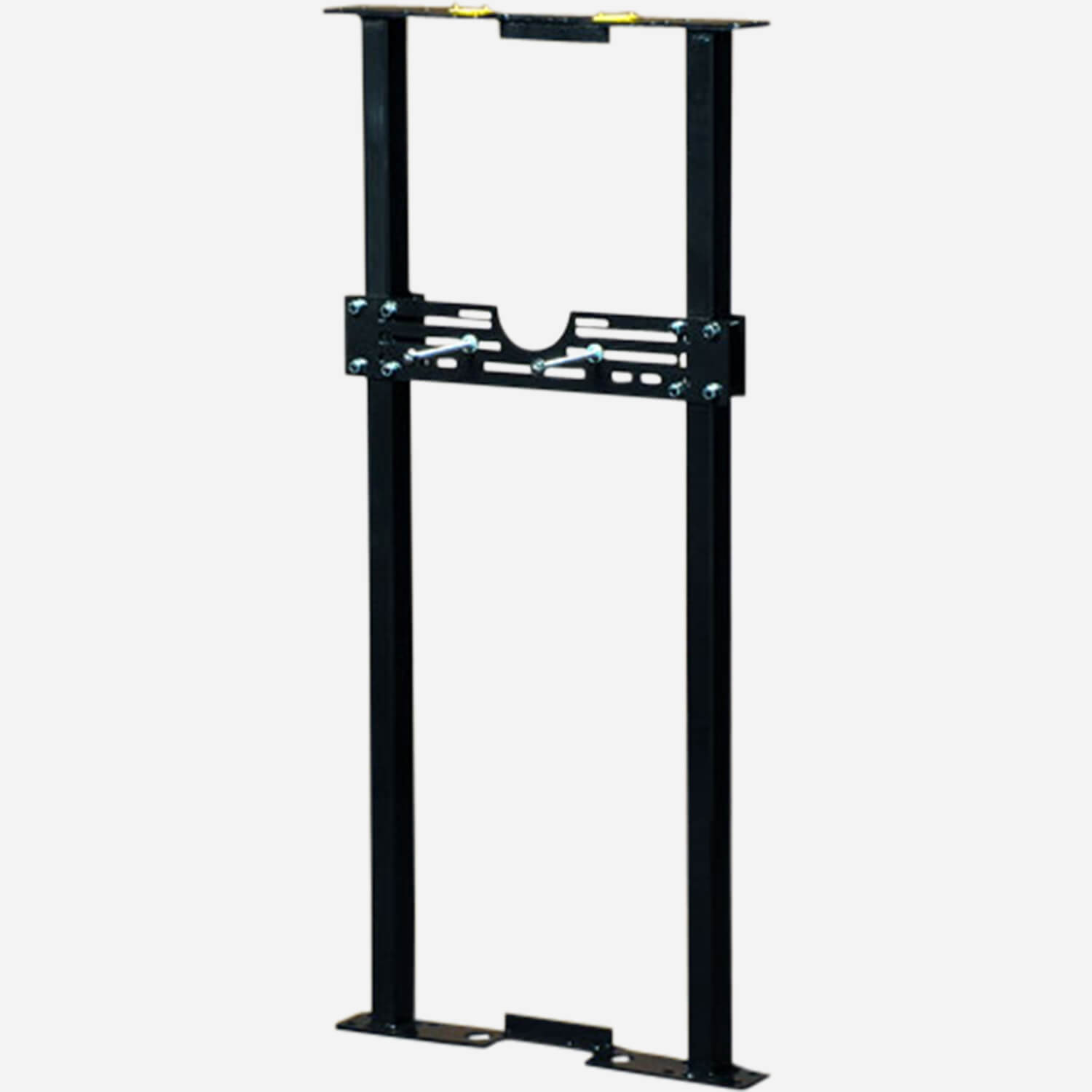

0801Labor Saver® Upright for High Back Lavatories with Concealed Wall Hanger - Floor Mounted

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

The rigid, unitized frame of our Labor Saver® floor mounted supports for high back lavatories drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. The uprights are furnished with a heavy gauge backing plate that is pre punched to accept fasteners, anchors, supply and drainage lines.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
  • Patent
    6,360,381
  • Benefit
    Labor Saving
