Figure Number: 5515-R
Contact a Representative

5515-RGuardian Plus Dual Check Hydrant Box for 6" Diameter Cored Hole in Concrete Exterior Wall

Guardian plus dual check 1/4 turn non-freeze hydrant with automatic draining integral vacuum breaker, integral service shut-off valve and dial check valve. The hydrant is designed for a 6" (150 mm) diameter hole in a concrete exterior wall.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Adjustable Wall Clamp -WC, 1"(25) Hose Connection -HC1, 1"(25) Male NPT Inlet Connection -IC1, Mild Climate -SAP, (2) 3/8” (10) Tappings -TAP, "Water" on Cover -W
  • Compliance/Certifications
    ANSI A112.21.3M, ASSE 1019-B, ASSE 1052, ASSE 1053
  • Patent
    8,973,599
  • Product Type
    Hydrant
SubmittalSubmittal 5515-R Hydrant (pdf)
View
Technical Drawings

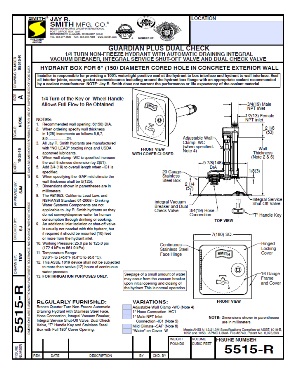

5515-R Hydrant CAD DrawingGuardian Plus Dual Check Hydrant Box for 6" (152 mm) Diameter Cored Hole in Concrete Exterior WallDWG776 KB
Literature / Videos
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Value Added Hydrants Brochure (pdf)Value Added Hydrants BrochurePDF847 KB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Guardian Dual Check® Hydrant Flyer (pdf)Flyer for Guardian Dual Check® HydrantPDF765 KB

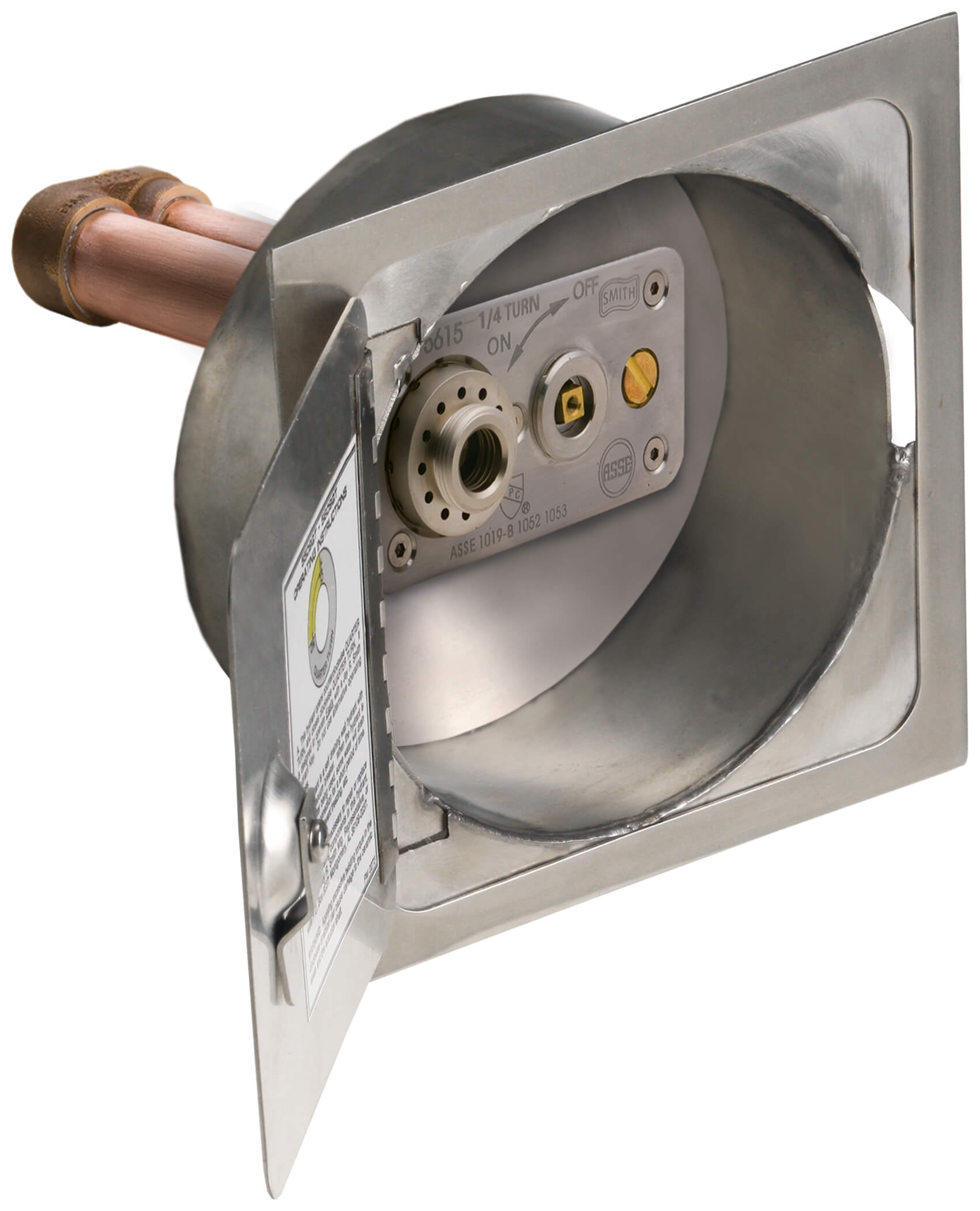

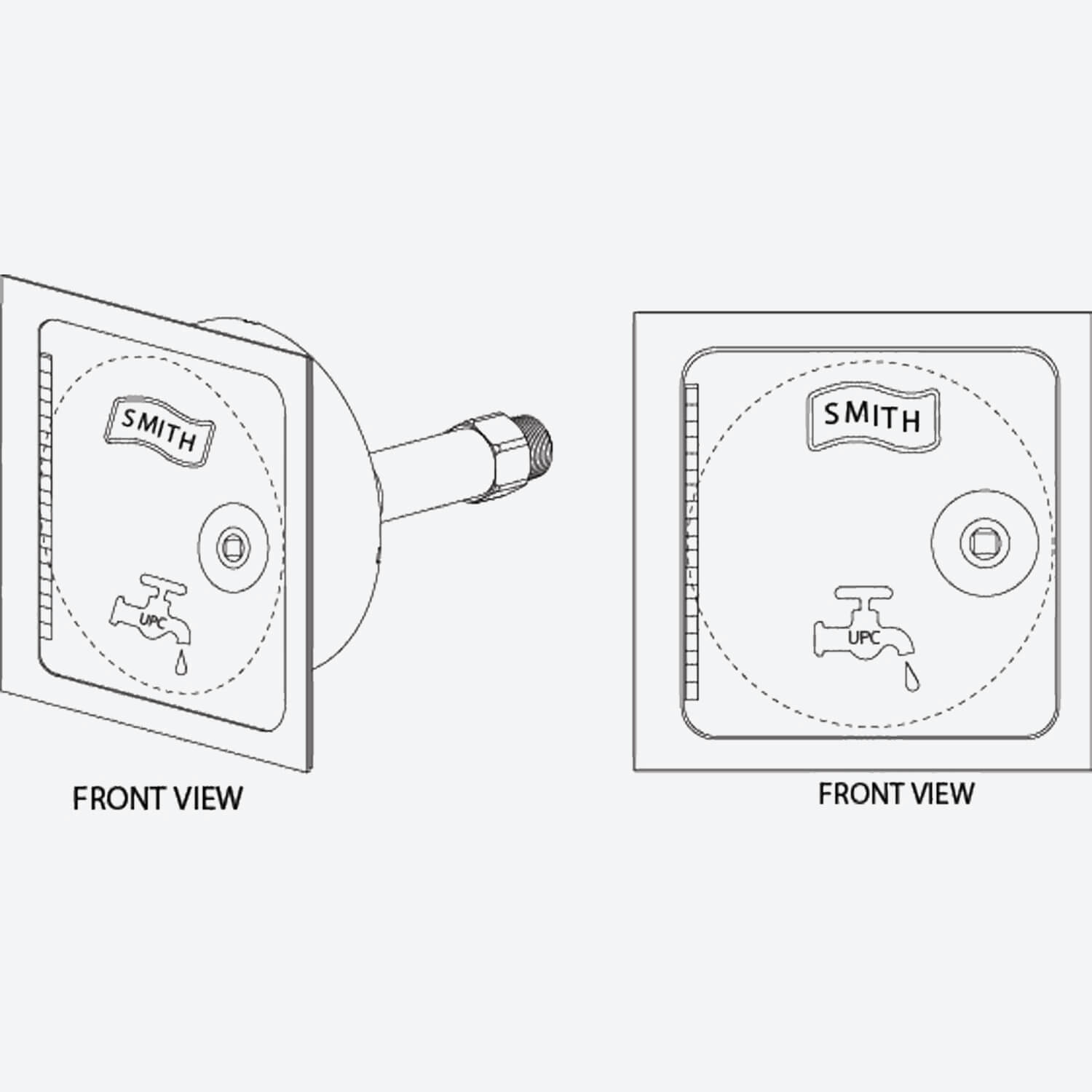

5515-R Hydrant (hi res jpg)Guardian Plus Dual Check Hydrant Box for 6" Dia. Cored Hole in Concrete Exterior WallJPG136 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Smith Hydrant Overview Chris Rylant (video)Overview of Smith HydrantVideo
Can't find what you are looking for? Get in touch
