Figure Number: 5675
Contact a Representative

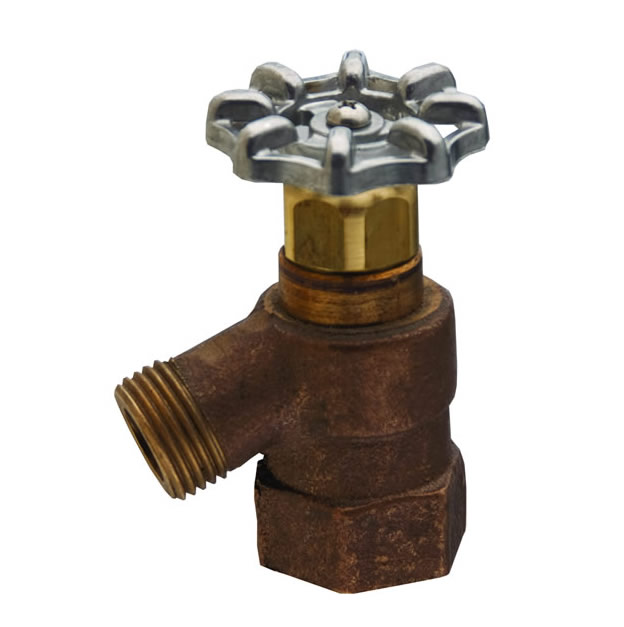

5675Bent Nose Hose Valves

The Smith Series 5675 Bent Nose Hose Valve is intended for warm climate installation on supply pipes between 6 and 36 inches tall. This lead-free, corrosion-resistant brass valve is fitted with a replaceable cartridge containing all wearing parts guaranteeing easy serviceability. For tamper resistance, the cartridge is installed under a lock shield bonnet and the wheel handle is removable. An ASSE 1011 compliant vacuum breaker version (fig. 5675-H) is available to prevent contamination of potable water.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Optional Materials
    Polished Chrome Plated -CP, Rough Chrome Plated -CR
  • Product Type
    Hydrant
  • Lead-Free
    Yes
SubmittalSubmittal 5675 Hydrant (pdf)
View
Technical Drawings
5675 Hydrant (dwg)Bent Nose Hose Valve [5675 | no Vacuum Breaker; 5675-H | with ASSE 1011 Vacuum Breaker]DWG51 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5675 Hose Valve (hi res jpg)Bent Nose Hose Valve [5675 | no Vacuum Breaker]JPG34 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch

Typical models are shown below

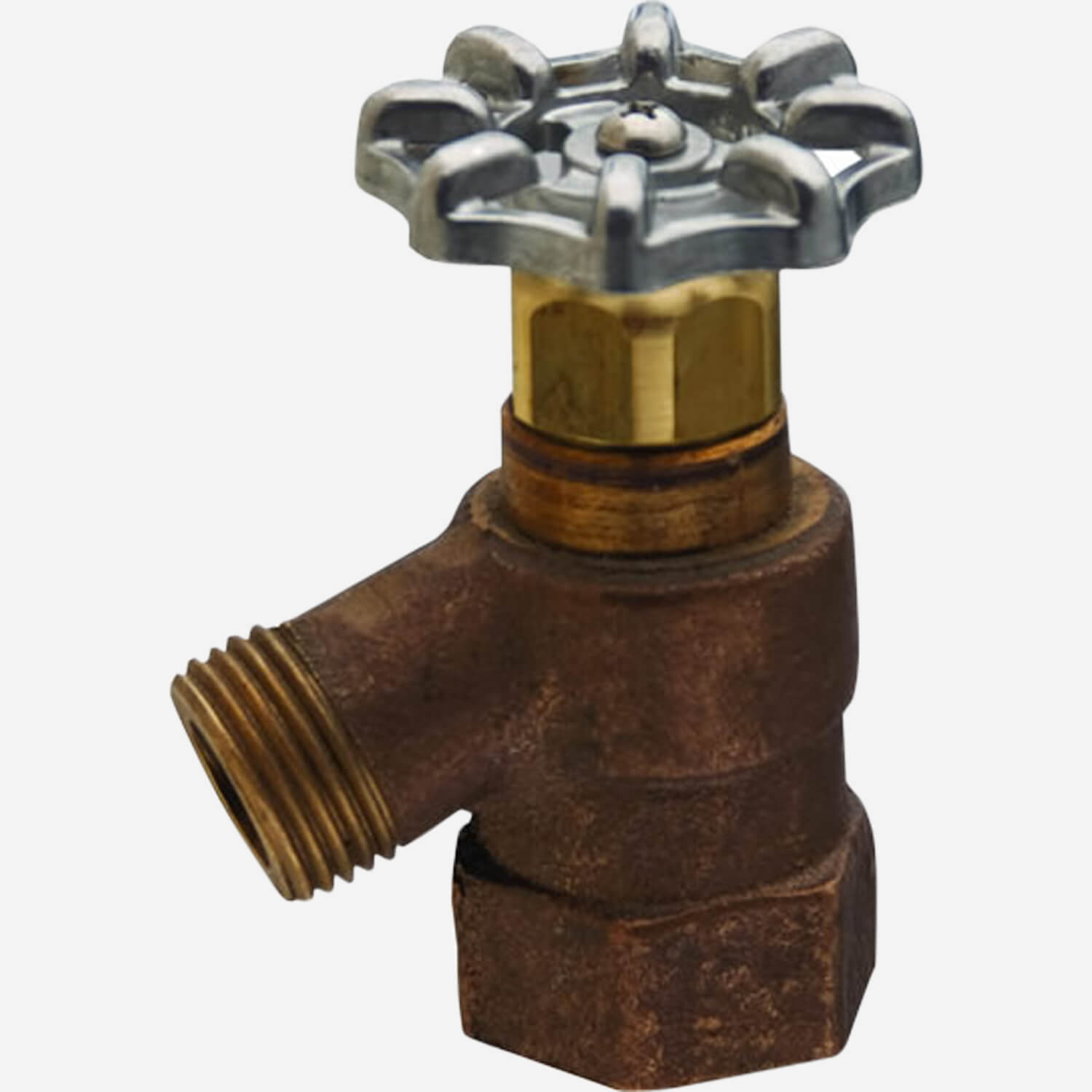

no vacuum breaker

Figure 5675
Hose Valve

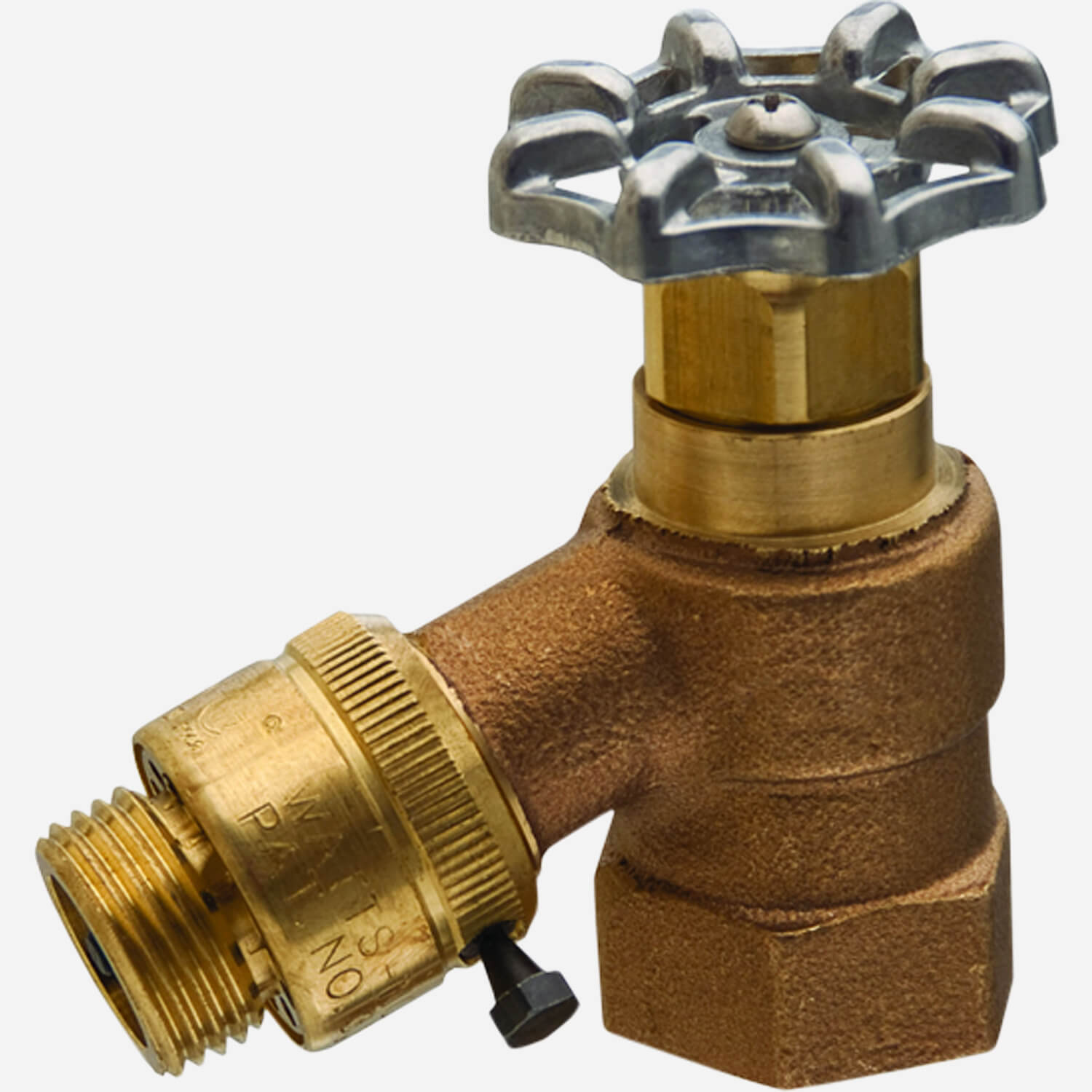

with vacuum breaker

Figure 5675-H
Hose Valve with
ASSE 1011 Vacuum Breaker

Standard finish  |  Brass, Rough Finish
-CP  |  Brass, Chrome-Plated, Polished Finish
-CR  |  Brass, Chrome-Plated, Rough Finish

  • 5675-H With Vacuum Breaker
