Figure Number: 9705

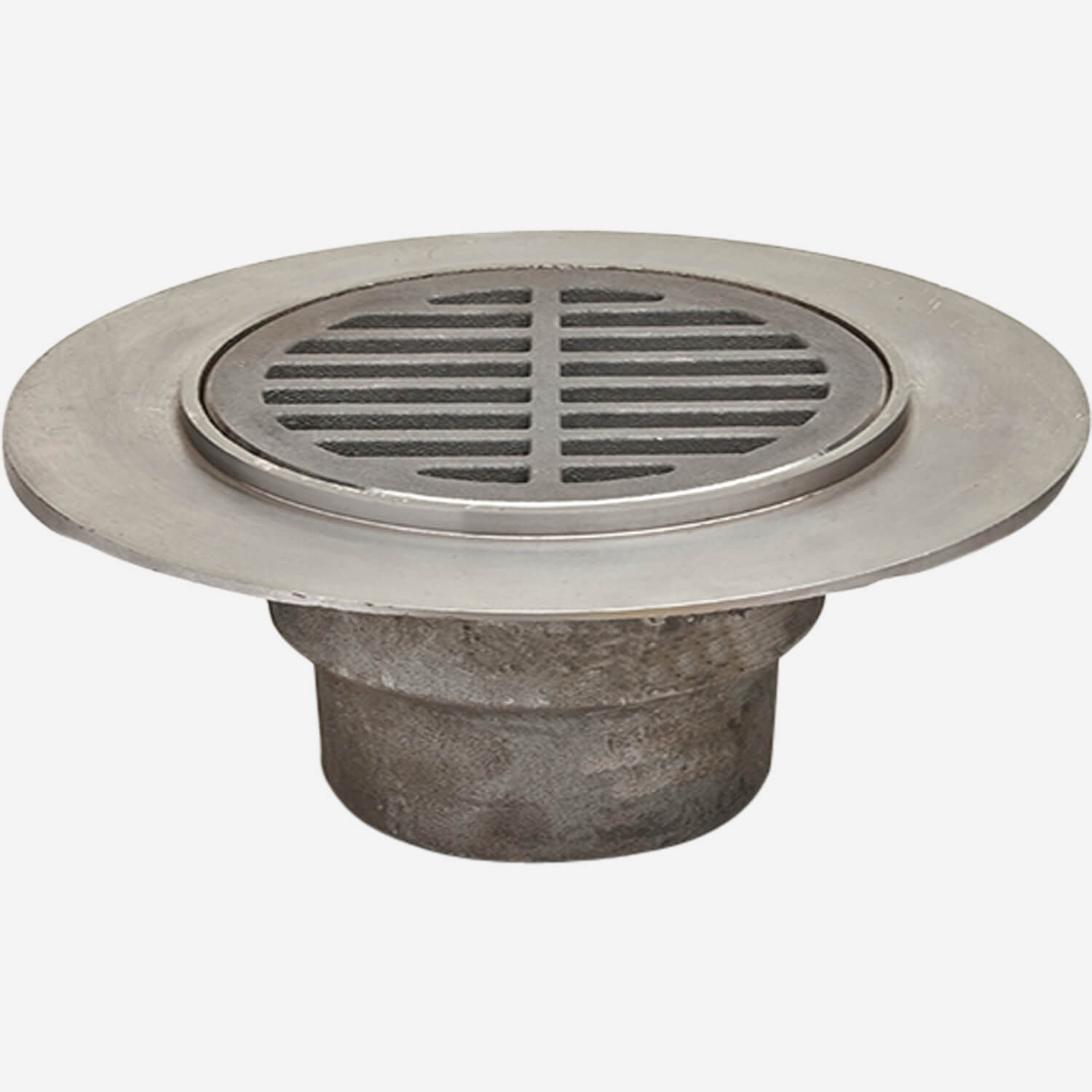

9705Floor Drains with Medium Duty Top and Extended Integral Flange

The CF8 rough finish stainless steel (equivalent to type 304) body and loose set non-tilt grate in our 9705 Medium Duty Top Floor Drain resists corrosive liquids found in chemical laboratories, dairies, breweries, and atomic energy and bottling plants while helping to maintain high sanitation standards. Its integral 12-3/4” (325) diam. integral flange is designed for welded installation on decks and provides a large surface area for bonding waterproof floor coverings onto.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), Satin Finish Top - SF, Sediment Bucket -B, Solid Scoriated Cover -S, Vandal Proof Grate - U, 90° Outlet (Specify Fig. 9759), Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, Cast Iron Grate -CIG, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Nickel Bronze Grate - NB, Polished Bronze Grate - PB
  • Product Type
    Drain
Technical Drawings
DWG 9705 DrainDWG 9705 DrainDWG31 KB
RFA 9705 Floor DrainRFA 9705 Floor DrainRFA468 KB
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
