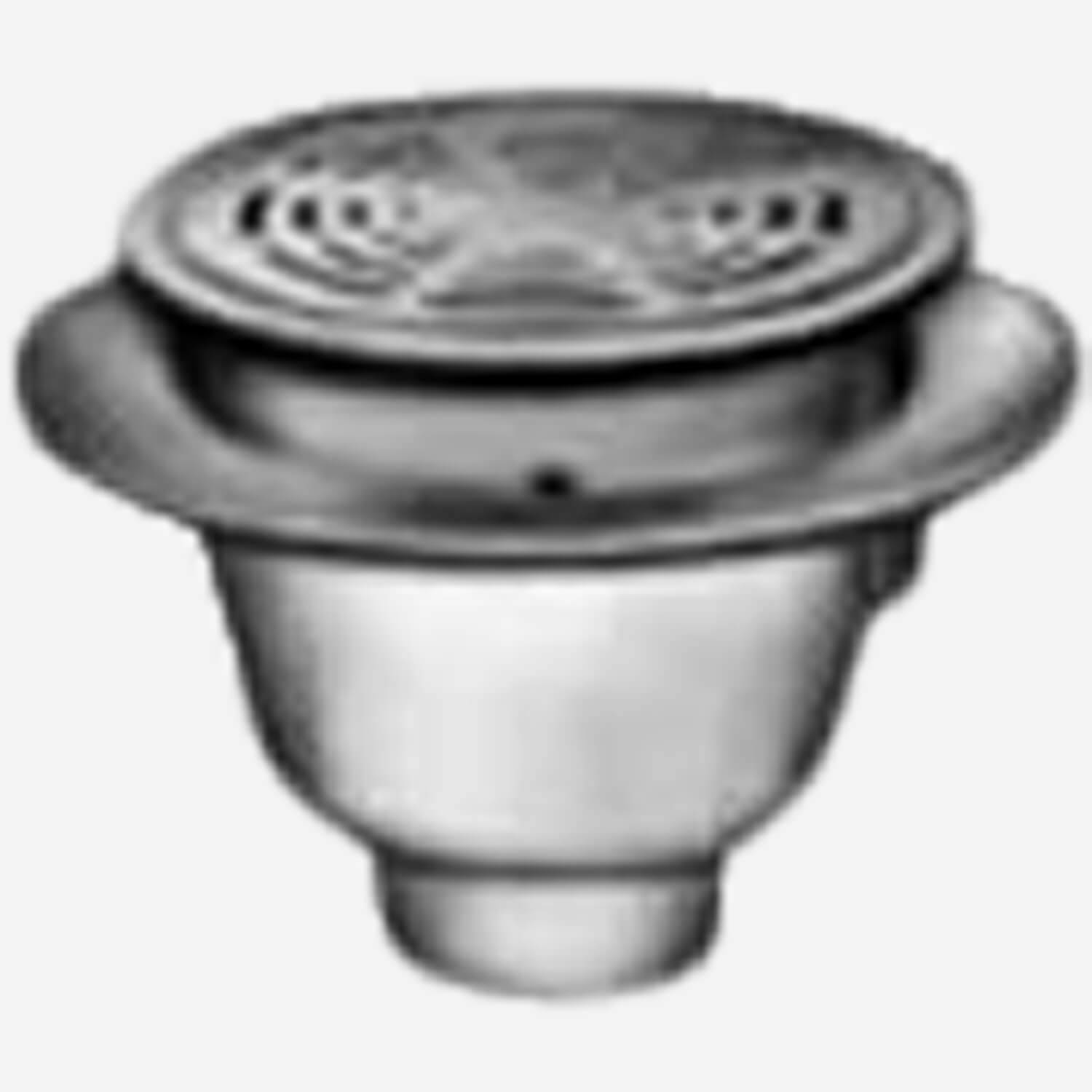

3400Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top

Engineered for long service life in food handling facilities, schools, and hospitals away from foot or other traffic, this 12” diam. Sani-ceptor® cast iron floor drain is specially coated for acid resistance where the highest standard of sanitation is required. The deep, large capacity drain body is has an integral flange which accepts an optional flashing clamp permitting it to be installed in many types of construction. This drain is covered by a loose set grate and is available with an aluminum dome bottom strainer (fig. 3400) or sediment bucket (fig. 3401) that keep drain lines debris free.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Shows specifications for standard configuration. Configuration options may change specifications.

Variations
Aluminum Flat Bottom Strainer -FBS, Flashing Clamp -C, L Speedi-Set® Service Weight, LXH Speedi-Set® Extra Heavy, Less Flange - (Specify Fig. 3405, 3406), Polished Aluminum Dome Bottom Strainer -PDBS, (2) 3/8” (10) Tappings -TAP, Drain Installation Device -DID
Optional Materials
All Duco Cast Iron Receptor and Grate -CI, All Galvanized Receptor and Grate -G
Product Type
Sanitary Floor, Area and Indirect Waste Drain

SubmittalSubmittal 3400 Waste Drain (pdf)

View

Technical Drawings

	3400 Drain CAD Drawing	Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top	DWG73 KB
	3400 Drain Revit Drawing	Sani-Ceptor® Sanitary Acid Resistant Coated Sanitary Floor and Indirect Waste Drains with Deep Receptor and ARC Round Non-Traffic Top	RFA232 KB

Literature / Videos

MasterSpec: 221319.13, Sanitary Drains (doc)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)	Floor drains, Floor sinks, Trench drains, Channel drainage systems.	PDF144 KB
Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	Article: Considerations to be Addressed When Selecting Sanitary Floor Drains	PDF270 KB
Specifications for Sanitary Floor Drains	Specifications for Sanitary Floor Drains	DOC327 KB
MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	PDF8 MB
MGI Brands Flyer (pdf)	MGI Brands Flyer (pdf)	PDF712 KB
Technical Data for Sanitary Floor Drains	Sani-Ceptor, Funnel-Ceptor, Roof-Ceptor Technical Data	PDF599 KB
Order Guidelines for Sanitary Floor Drains	Order Guidelines for Sanitary Floor Drains	PDF115 KB
Parts Order Guide for Sanitary Floor Drains		PDF2 MB

Can't find what you are looking for? Get in touch

Sani-Ceptor® Acid-Resistance Coating Floor and Indirect Waste Drains
Non-Traffic Tops, 12" (305 mm) Round Top, Deep Receptor

With Dome Strainer
3400C | Caulk Bottom Outlet
3400Y | No-Hub Bottom Outlet

With Sediment Bucket
3401C | Caulk Bottom Outlet
3401Y | No-Hub Bottom Outlet

Optional Top Grates, Funnels and Covers
Suffix -10 | Less Acid-Resistance Coating Grate
Suffix -12 | With A.R.C. 1/2 Grate
Suffix -13 | With A.R.C. 3/4 Grate
Suffix -14 | With A.R.C. Grate with 2-1/2" (64) Diameter Center Hole
Suffix -15 | With Aluminum Recessed Grate
Suffix -21 | With A.R.C. Grate and 4" (100) Diameter A.R.C. Funnel
Suffix -22 | With A.R.C. Grate and 6" (150) Diameter A.R.C. Funnel
Suffix -25 | With A.R.C. Grate and 8-1/4" (210) x 3-1/4" (83) x 4-1/2" (115) High Oval A.R.C. Funnel
Suffix -26 | With A.R.C. Grate and 6" (150) x 2-1/2" (64) x 1" (25) High Oval A.R.C. Funnel
Suffix -41 | With A.R.C. Solid Cover
Suffix -42 | With A.R.C. 1/2 Solid Cover
Suffix -43 | With A.R.C. 3/4 Solid Cover
Suffix -44 | With A.R.C. Solid Cover with 2-1/2" (64) Diameter Center Hole

-DID Variation:
FormIt® Drain Installation Device for 12" and 12-1/2" Top Size Floor Sinks, see Submittal 3039-DID
