Figure Number: 2510
Contact a Representative

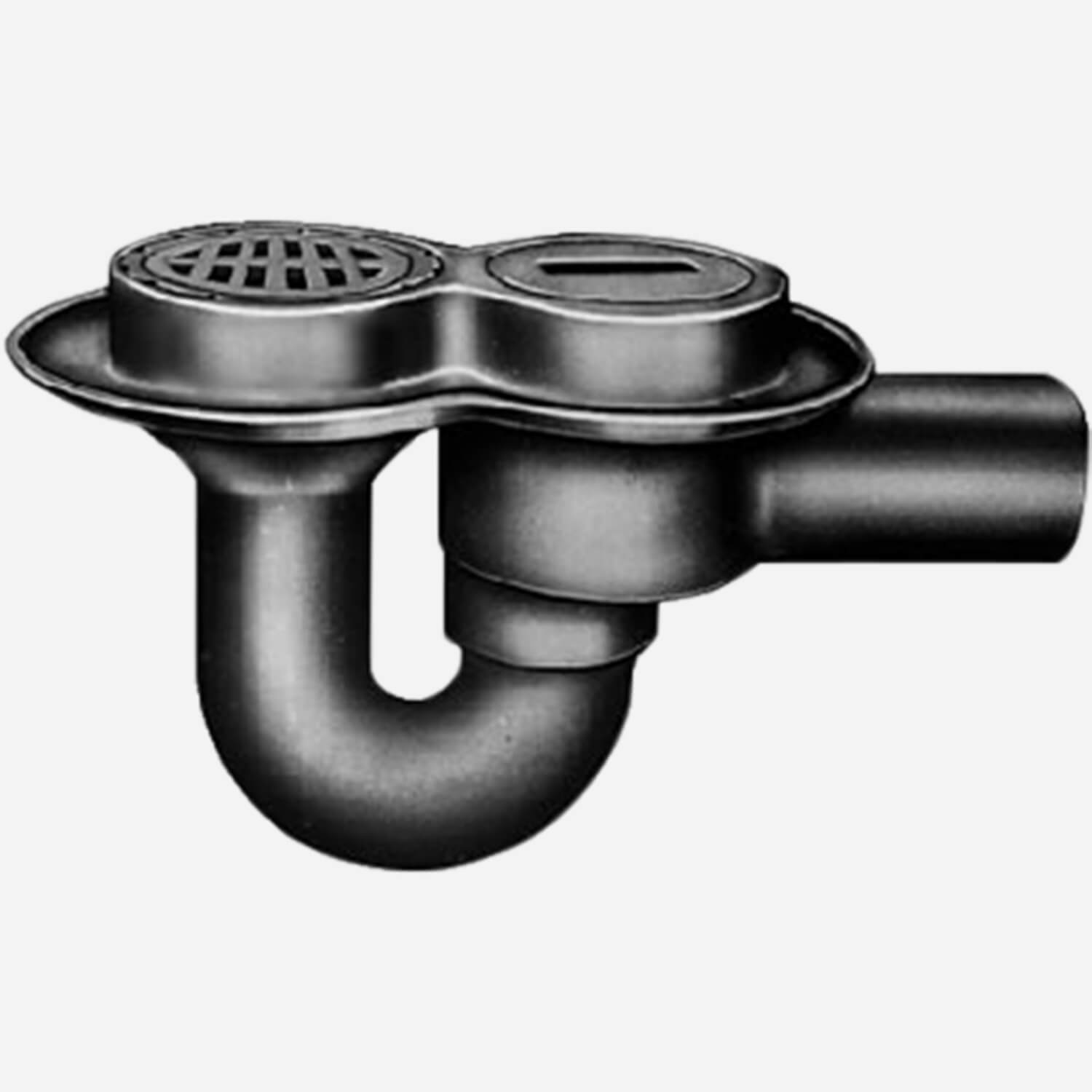

2510Integral Trap and Floor-Level Cleanout Drains

Engineered for moderate traffic, this drain provides a deep trap seal, an easily accessible floor level cleanout and a side outlet rough-in in a single compact casting for limited space installation. The grate and body are made of durable Duco coated cast iron and the cleanout plug is of corrosion resistant bronze for many years of service.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Auxiliary Inlet -N 03(75), 04"(100) Sizes only) -N15 1 1/2(38), -N2 2"(51)), Backwater Valve -V, Dome Grate -D, Flashing Clamp -C, Hinged Grate -H, Safe-Set" Sediment Bucket -B, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
SubmittalSubmittal 2510, 2515 Floor Drain (pdf)
View
Technical Drawings
2510, 2515 Floor Drain (pdf)Integral Trap and Floor-Level Cleanout Drains, Spigot Outlet [2510S | Less Flange; 2515S | With Flange]DWG89 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Trap Seal Device vs the Competition (video)Trap Seal Device vs the Competition HD Video
Can't find what you are looking for? Get in touch
  • 2515 With Flange
