Figure Number: 2490
Contact a Representative

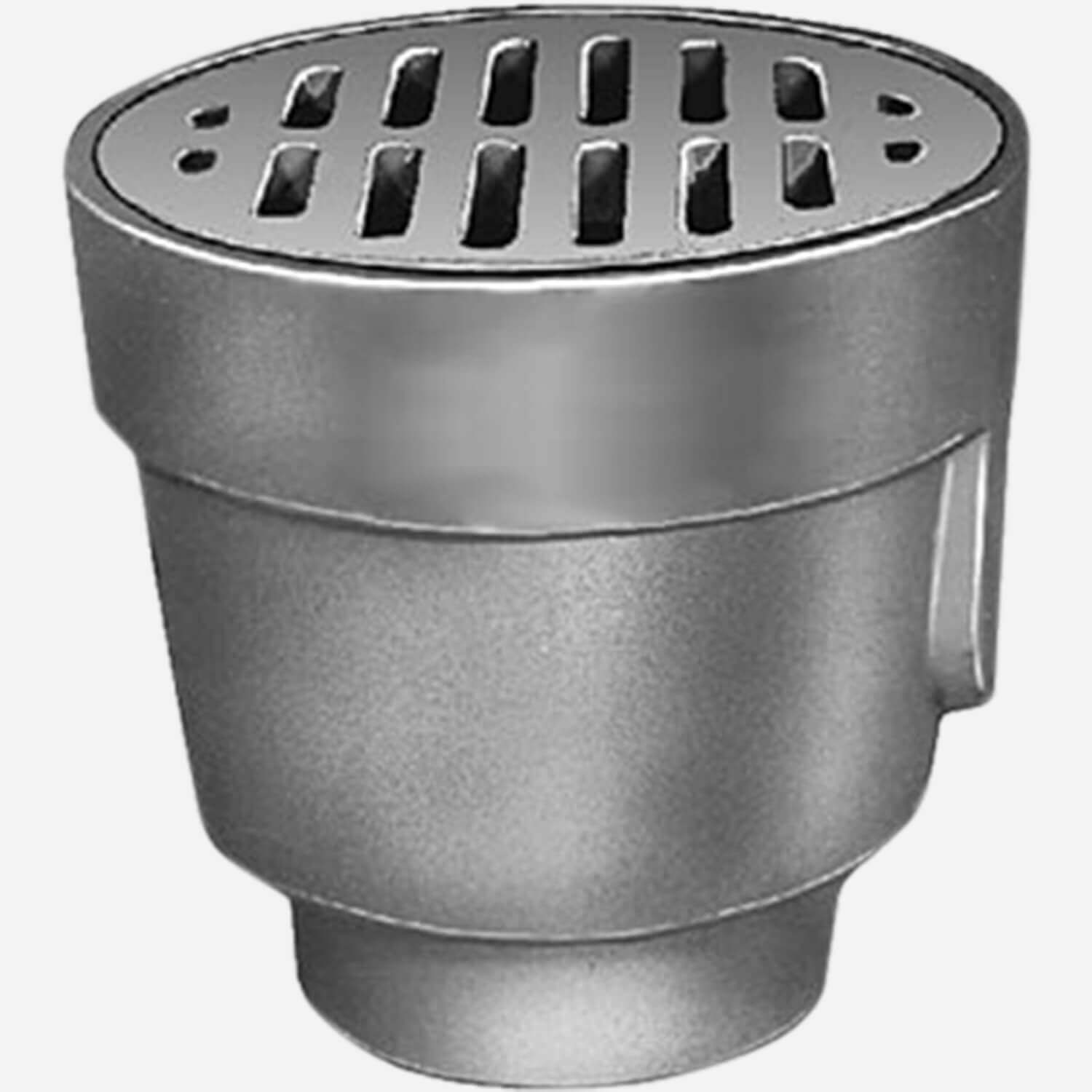

24908-1/2" Round Top Tractor Grate - Heavy Duty Deep Floor Drain Body

Figure 2490 is available in Duco-coated cast iron. This floor drain accepts 8-1/2" diameter cast iron strainers and is engineered to support heavy-duty "tractor" traffic and Safe Live Static loads between  5,000 lbs. (2,250 kg) and 7,499 lbs (3,375 kg) per ASME A112.6.3 Floor Drain Standard. For use when floor construction requires a deep drain body. Also available with a flange/collar (Figure 2495).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Floor Drain
  • Variations
    Auxiliary Inlets -N, 1-1/2" or 2" Hub Adapter on Auxiliary Inlets (specify 2645), Backwater Valve -V, Extension -E - (Specify Height), Flat Bottom Strainer -FBS, Hinged Grate -H, NO-HUB Adaptor - (Specify Fig. 2646Y), Square Top -S, Standing Slotted Bucket -B, Standing Solid Bucket -SB, Closure Plug -XP, Vandal Proof Grate - U, Quad Close Trap Seal (Specify Fig. 2692), (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top -PB
SubmittalSubmittal 2490, 2495 Floor Drain (pdf)
View
Technical Drawings

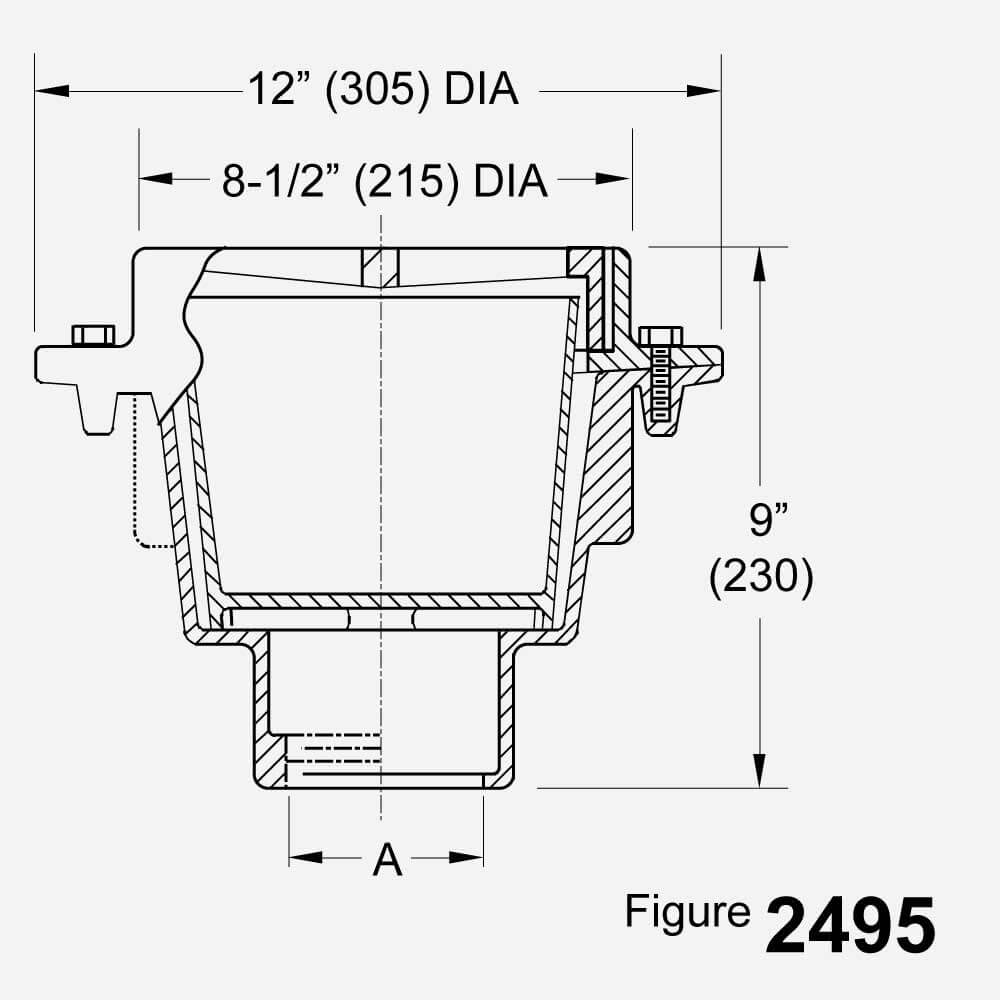

2490, 2495 Floor Drain (dwg)8-1/2" Round Top Tractor Grate - Heavy Duty Deep Drain Body [2490 | Without Flange/Collar; 2495 | With Flange/Collar]DWG119 KB
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Regular Furnished: Duco Cast Iron Body and Tractor Grate with or Less Flange and Collar as indicated by Figure Number Selected.

2490C | Caulk Outlet
2490T | Threaded Outlet
2495C | Caulk Outlet with Flange and Collar
2495T | Threaded Outlet with Flange and Collar

Specify outlet pipe size 02(50), 03(75) or 04(100)
