Figure Number: 2250

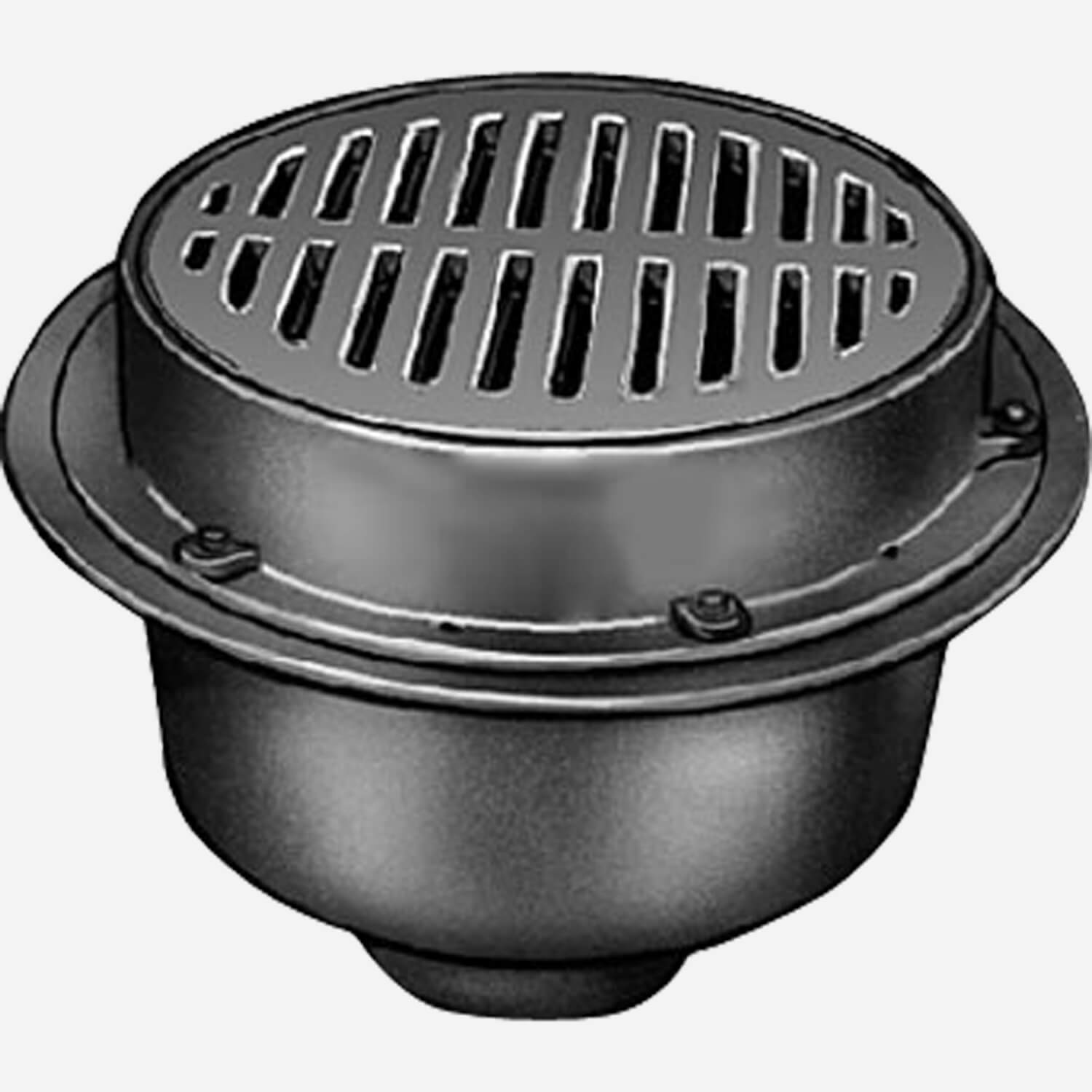

2250Heavy Duty Large Capacity Floor Drains with Sediment Bucket and Round Tractor Grate Tops

This large capacity, 15" diam. heavy duty floor drain is engineered to support static loads of up to 7,999 lbs. (3,750 kg.) in areas where high volumes of debris laden wastewater is anticipated. Provided with a sediment bucket and ADA Tractor Grate, this deep body drain will efficiently manage large wastewater volumes in playgrounds and parking areas.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Grate -D, 2"(51) High Collar -HC, Square Top -S, Vandal Proof Grate - U, L Speedi-Set® Service Weight - 3"(75), 4"(100) Sizes Only, LXH Speedi-Set® Extra Heavy - 03(75), 04"(100) Sizes Only, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze - Heel Proof -NBHP, Polished Bronze - Heel Proof -PBHP, Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
Technical Drawings
2250, 2253, 2255 Floor Drain (dwg)Large Capacity Heavy-Duty Floor Drain with Sediment Bucket [7-3/4" Deep Body [2250C | 7-3/4" Caulk Bottom Outlet; 2250T | Thread Bottom Outlet; 2250Y | No-Hub Bottom Outlet]; [2253C | 11-1/2" Deep Body Caulk Bottom Outlet]; [2255C | Caulk Side Outlet]DWG85 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Large Capacity Heavy-Duty Floor Drain with Sediment Bucket

7-3/4" Deep Body
Bottom Outlet
2250C
| Caulk Outlet
2250T | Thread Outlet
2250Y | No-Hub Outlet

11-1/2" Deep Body
Bottom Outlet
2253C
| Caulk Outlet

Side Outlet

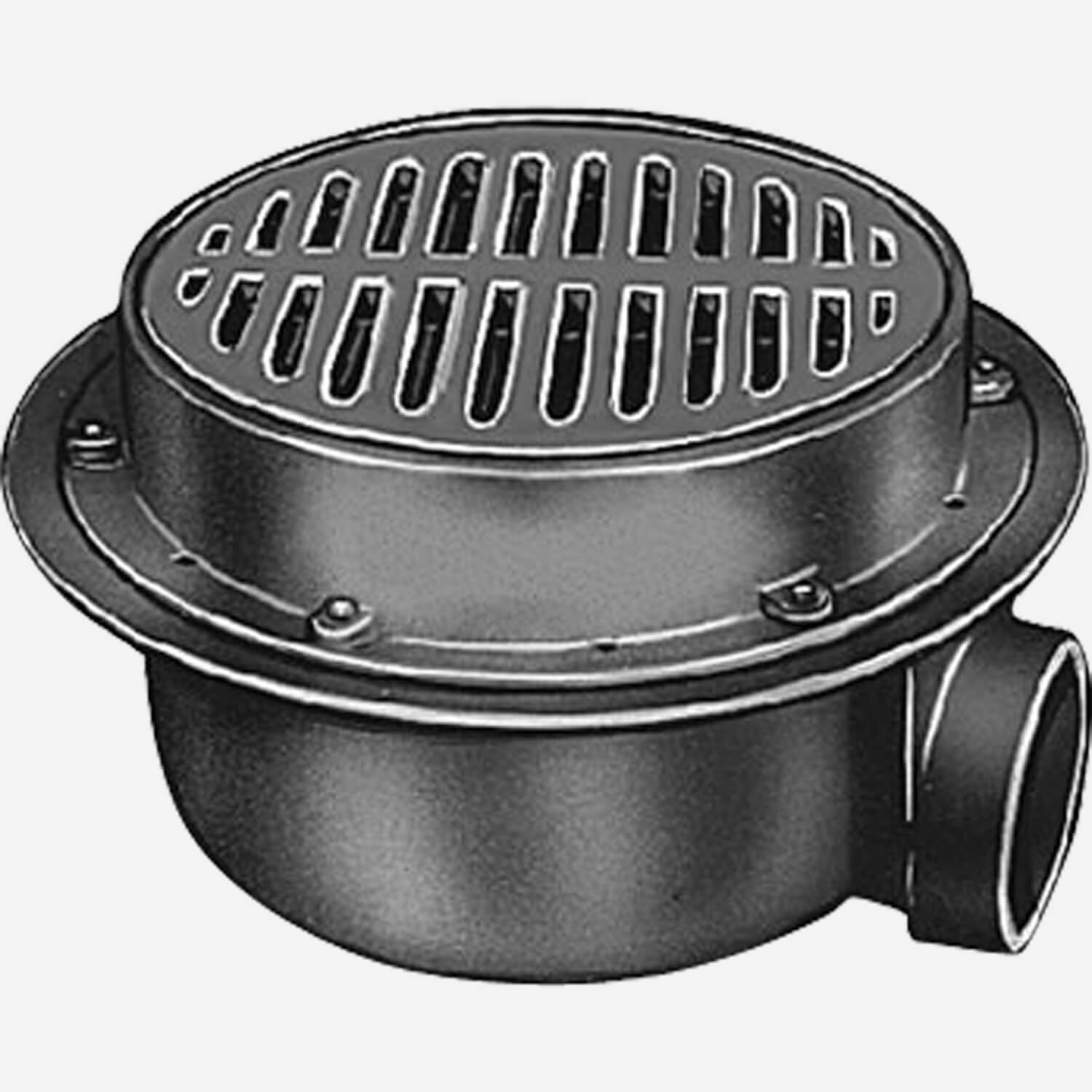

2255C
| Caulk Side Outlet


OPTIONAL STRAINER HEADS
Suffix A | Round Strain
Suffix B | Square Strainer
Suffix AV | Square Strainer which works with Flapper Backwater Valve
Suffix BS | Strainer Head with Square Hinged Cover
Suffix C | Reinforced Round Strainer
Suffix D | 7" Diameter Reinforced Tractor Round Strainer
Suffix E | 9" Diameter Reinforced Tractor Round Strainer
Suffix F | Round Tile Flange Strainer
Suffix F37 | 7" Diameter Adjustable Strainer Head
Suffix F38 | 9" Diameter Adjustable Strainer Head
Suffix G | Low Dome Strainer
Suffix H | Round Solid Hinged Cover Strainer
Suffix K | Reinforced Square Strainer
Suffix L | 4-1/2" x 8" Rectangular Strainer
Suffix M | 4" x 12" Rectangular Strainer
Suffix N | 5" x 9" Rectangular Strainer
Suffix P | 5" x 13" Rectangular Strainer
Suffix R | 6" x 10" Rectangular Strainer
Suffix T | 5" x 17" Rectangular Strainer
Suffix V | 3-1/2" x 3-1/2" x 4-1/2" Angle Strainer
Suffix W | 6-3/4" x 6-3/4" x 6-1/2" Angle Strainer
Suffix X | Extension Adaptor
Suffix Y | 2" Pipe Size Overflow with Standpipe
Suffix Z | 3" Pipe Size Overflow with Standpipe
