Figure Number: 2242

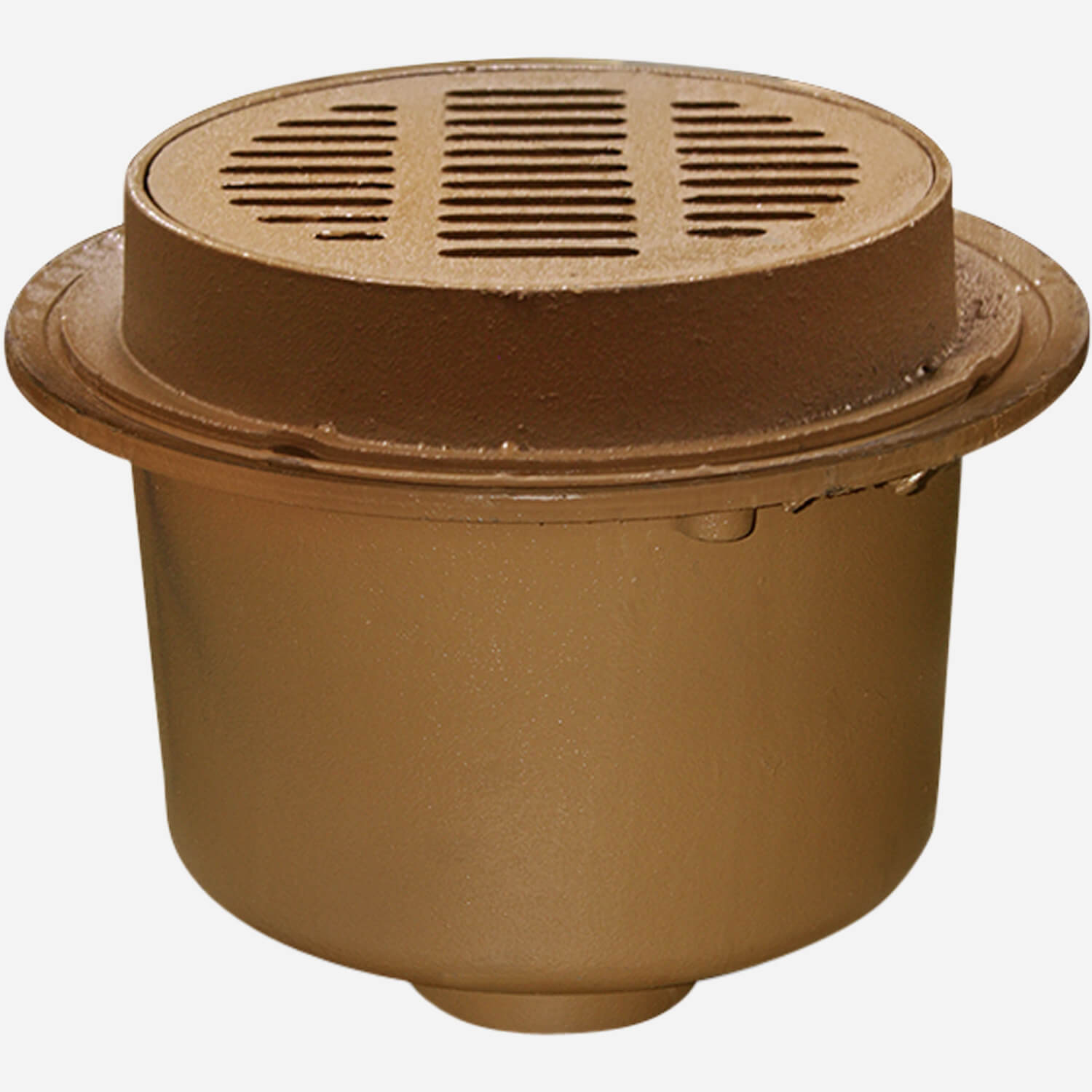

2242Deep Body Heavy Duty Floor Drains with 12" Round Tops and Tractor Grate

Engineered to guarantee proper realignment of its large sediment bucket after emptying. The Safe-Set® design of this deep-body floor drain protects drainage systems where heavy flow and considerable debris is anticipated. This heavy duty drain and tractor grate is made of Duco cast iron for static loads of up to 7,999 lbs. (3,750 kg.).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., Seepage Holes in Bucket -FP (Frost Proof), Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Vandal Proof Grate - U, Y NO-HUB - Outlet, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Ductile Iron Grate - M, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
Technical Drawings
2247, 2248 Floor Drain CAD DrawingDeep Body Heavy Duty Floor Drain with 12" Round Top and Tractor Grate, Solid Free Standing Bucket [2242|Bottom Outlet; 2247 | Side Outlet]; Suspended Slotted Bucket [2243 | Bottom Outlet; 2248 | Side Outlet]DWG118 KB
2242 Floor Draing CAD DrawingDeep Body Heavy Duty Floor Drain with 12" Round Top and Tractor Grate, Solid Free Standing Bucket [2242C | Caulked Bottom Outlet]DWG111 KB
2243 Floor Drain CAD DrawingDeep Body Heavy Duty Floor Drain with 12" Round Top and Tractor Grate, Suspended Slotted Bucket [2243C | Caulked Bottom Outlet]DWG132 KB
2242 Floor Drain Revit DrawingDeep Body Heavy Duty Floor Drain with 12" Round Top and Tractor Grate, Solid Free Standing Bucket [2242C | Caulked Bottom Outlet]RFA628 KB
2243 Floor Drain Revit DrawingDeep Body Heavy Duty Floor Drain with 12" Round Top and Tractor Grate, Suspended Slotted Bucket [2243C | Caulked Bottom Outlet]RFA2 MB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
