Figure Number: 2240 and 2245

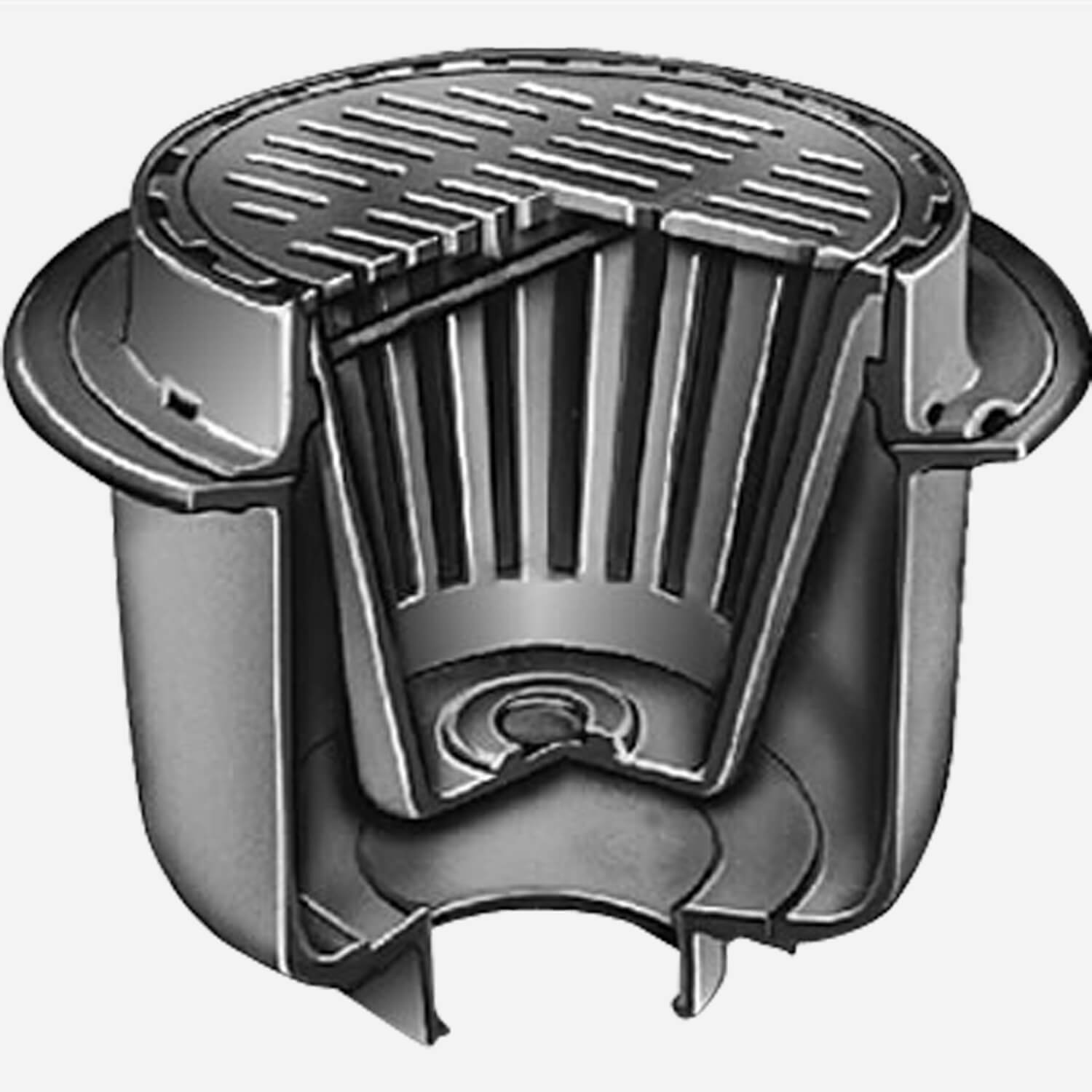

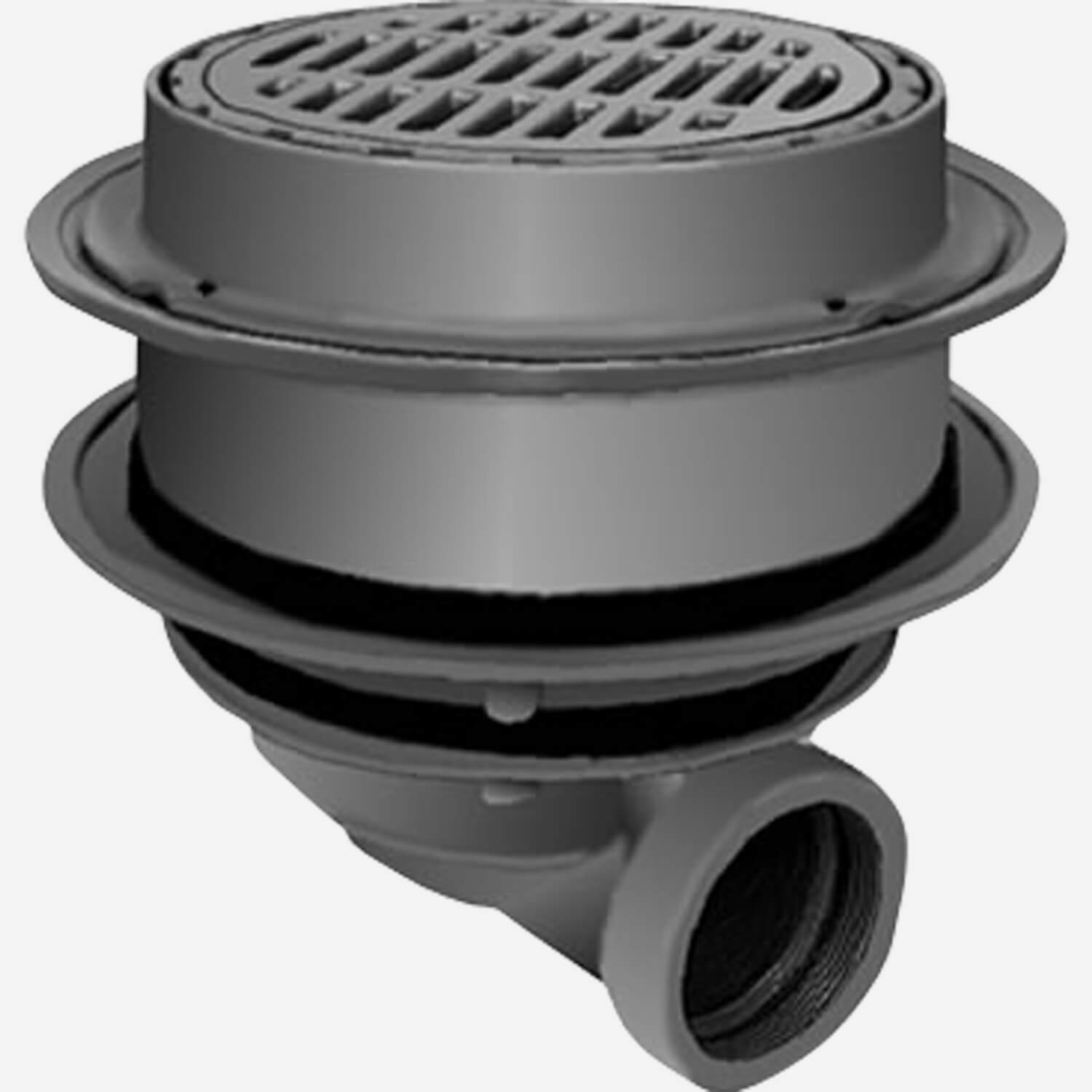

2240 and 2245Deep Body Medium Duty Floor Drains with 12" Round Tops and Sediment Bucket

Engineered to guarantee proper realignment of its large sediment bucket after emptying, the Safe-Set® design of this deep-body floor drain protects drainage systems where heavy flow and considerable debris is anticipated. This medium duty floor drain and grate is made of Duco cast iron for static loads up to 4,999 lbs. (2,2500 kg.).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Hinged Grate -H, Solid Free Standing Bucket -B, Square Top -S, Vandal Proof Grate - U, L Speedi-Set® Service Weight - 02(50), 03(75), 04"(100) Sizes Only, LXH Speedi-Set® Extra Heavy., (2) 3/8” (10) Tappings -TAP, Stainless Steel Mesh Lined Bucket -BS
  • Optional Materials
    Ductile Iron Grate & Bucket -MGB, Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB
  • Product Type
    Floor Drain
Technical Drawings
2245 Floor Drain CAD DrawingDeep Body Medium Duty Floor Drains with 12" Round Tops and Sediment Bucket [2245 | Side Outlet; 2240 | Bottom Outlet]DWG123 KB
2240 Floor Drain CAD DrawingDeep Body Medium Duty Floor Drains with 12" Round Tops and Sediment Bucket [2240 | Bottom Outlet]DWG222 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
