9710 & 9715Medium Duty Top Floor Drain

The CF8 rough finish stainless steel (equivalent to type 304) bodies and loose set non-tilt grates in our 9710 and 9715 Medium Duty Top Floor Drains resist corrosive liquids found in chemical laboratories, dairies, breweries, and atomic energy and bottling plants while helping to maintain high sanitation standards. CF8 Stainless Steel also accommodates machining for threaded outlets, tops, flashing clamps, plugs, and strainers that are offered as options with these drains. A solid top variation that allows placement of drains for future use is also available.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4"(100) Extension -E04, 4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), Closure Plug and Gasket Available in Stainless Steel -XPSS or Plastic -XPP, Closure Plug with 3/4"(19) Test Plug -TP (Specify Material), Flashing Clamp with Seepage Holes - C, Flat Bottom Strainer -FBS, Satin Finish Top - SF, Sediment Bucket -B, Seepage Holes -WSH, Solid Scoriated Cover -SC, Vandal Proof Grate - U, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, Cast Iron Grate -CIG, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B, Nickel Bronze Grate - NB, Polished Bronze Grate - PB
  • Product Type
    Drain
Technical Drawings
9710, 9715 Drain CAD DrawingFloor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top [Figure 9710 | Bottom Outlet; 9715 | Side Outlet;]DWG71 KB
9710 Drain Revit DrawingFloor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom OutletRFA332 KB
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB

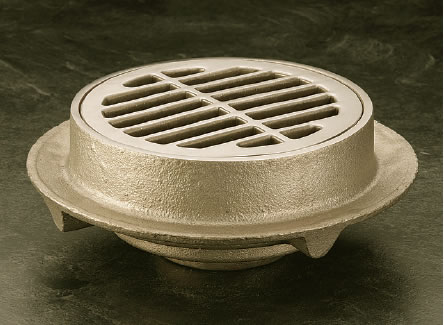

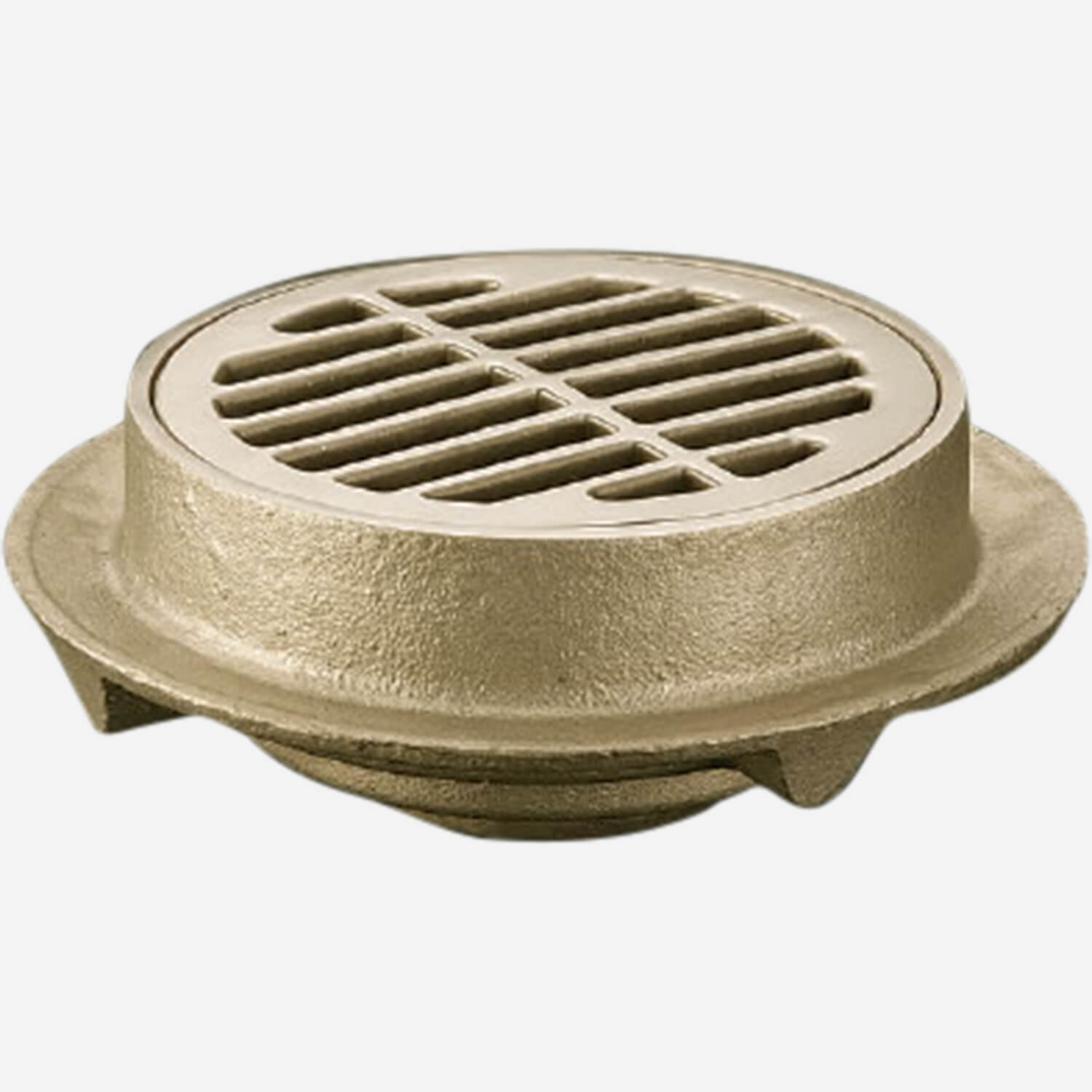

9710 drain (hi res jpg)Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom Outlet -- image is drain onlyJPG35 KB

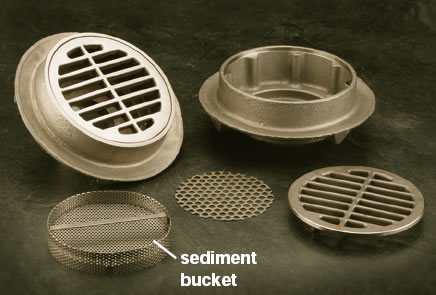

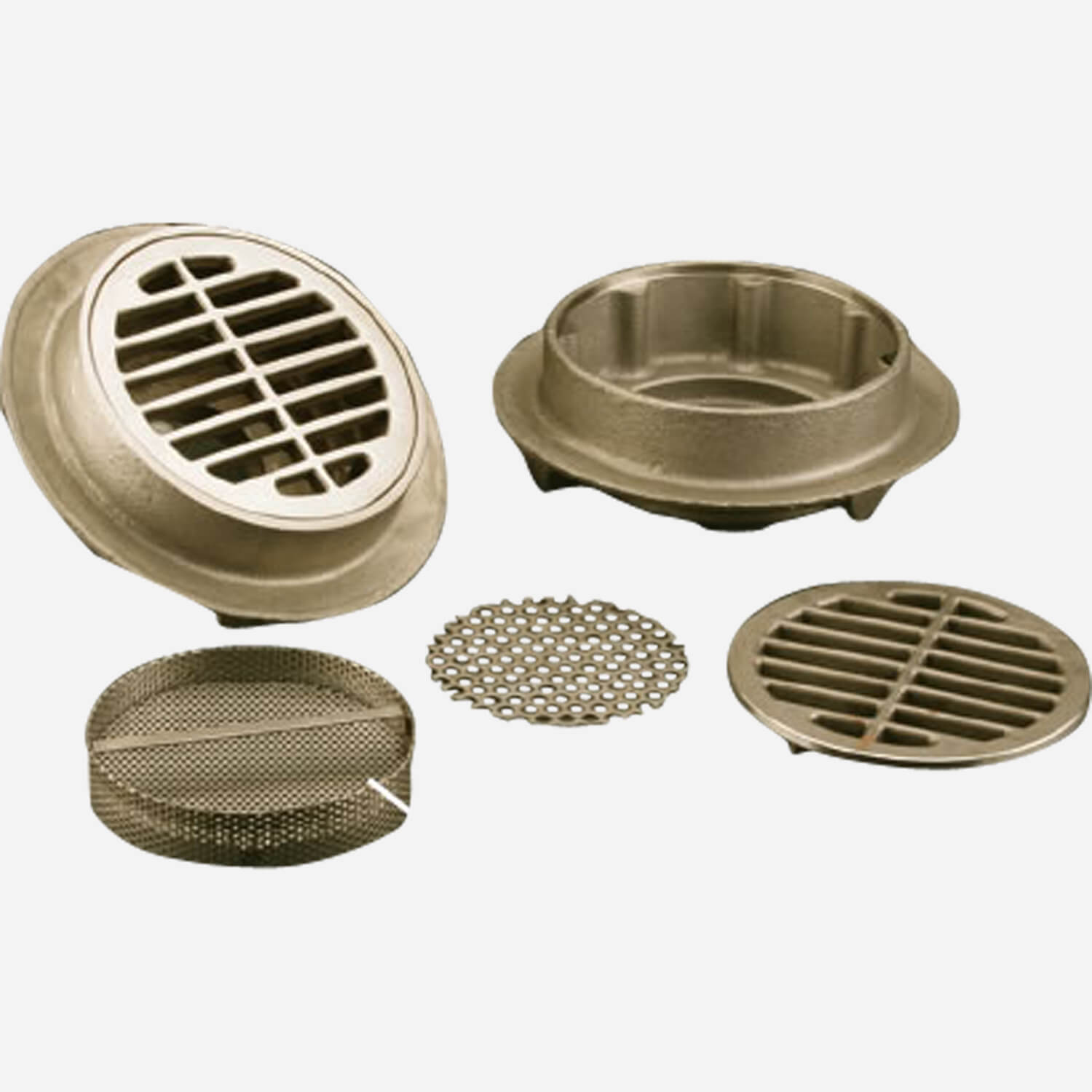

9710 with options (hi res jpg)Floor Drains - Stainless Steel (CF8/Type 304) - 8-1/2" (215 mm) Round Medium Duty Top Bottom Outlet -- shown with optional accessoriesJPG28 KB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
