Finished Floor Cleanouts with Round Nickel Bronze Tops

Name: Finished Floor Cleanouts with Round Nickel Bronze Tops
Brand: Jay R. Smith Mfg. Co.
SKU: 4020-4034

Find A Representative

Figure 4020-4034

Submittal

9 available

Model 4020-4034

Finished Floor Cleanouts with Round Nickel Bronze Tops

Versatility in Adjustment Before and After the Pour

This labor saving cleanout uses our Twis-to-Floor® adjustment technology to level the top with adjacent surfaces after the floor is poured and floor coverings are installed. It is constructed of Duco coated cast iron with a secured 5-3/4” (145) diam. nickel bronze top for finished floors bearing foot and medium load wheeled traffic.

Pro-Tip: Never under estimate the importance of aesthetics to your client. Our cleanouts allow you to exchange our factory covers with scoriatedtile or terrazzo covers.

Concrete pours are not a precise science. Once the surface is dry, you often find your cleanouts need adjusting—a fraction lower here, a fraction higher over there. Our Twis-to-Floor cleanouts allow you to make that adjustment with a simple twist.

Labor Saving Features:

All strainer heads and cleanout tops shipped individually are shrink wrapped in plastic before leaving the factory.
The cover protects the drain/cleanout top during shipping, warehousing and on the job site.
Each protective cover is clearlymarked with the product number and the Smith logo.
The cover protects the drain/cleanout top during the pour preserving the finish.
Thicker finished floor cover reinforced with support ribs for strength and durability
Smooth outside surface of the top assembly and thread protector Styrofoam ring maximize adjustment during and after the finished floor concrete pour
Top assembly offers easy attachment to ferrule
Easy to install clamping device on ferrule
Cast iron clamping device on ferrule providing maximum clamping force to the membrane

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Drawings	4020 Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S \| Gasket Seal - ABS Plug]	76 KB
Drawings	4020-X Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S-X \| Gasket Seal - ABS Plug]	107 KB
Drawings	4020-Y Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - No Hub Outlet [Figure 4020S-Y \| Gasket Seal - ABS Plug]	140 KB
Drawings	4025 Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Inside Caulk Outlet [Figure 4025C \| Gasket Seal - ABS Plug ]	90 KB
Drawings	4025-X Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Inside Caulk Outlet [Figure 4025C-X \| Gasket Seal - ABS Plug]	121 KB
Drawings	4025-Y Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Inside Caulk Outlet [Figure 4025C-Y \| Gasket Seal - ABS Plug]	153 KB
Drawings	4031 Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L \| Gasket Seal - ABS Plug]	108 KB
Drawings	4031-X Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Clamping Frame - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L-X \| Gasket Seal - ABS Plug]	140 KB
Drawings	4031-Y Cleanout (dwg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top and Carpet Marker - Round Nickel Bronze Top - Speedi-Set® Outlet [Figure 4031L-Y \| Gasket Seal - ABS Plug]	172 KB

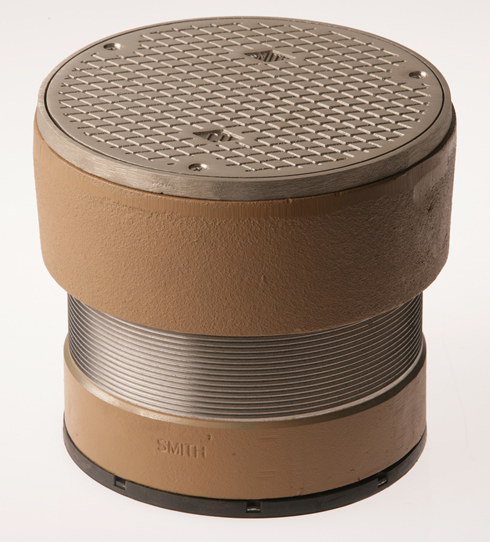

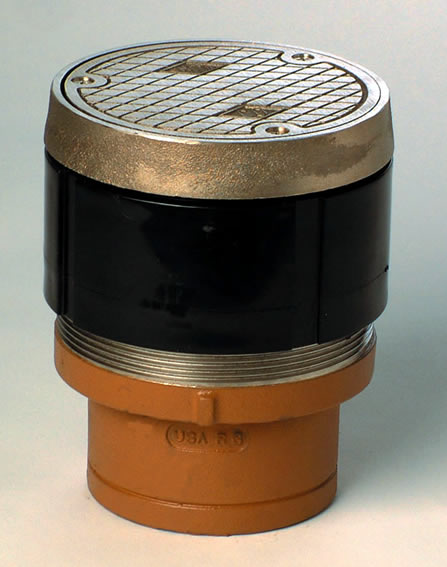

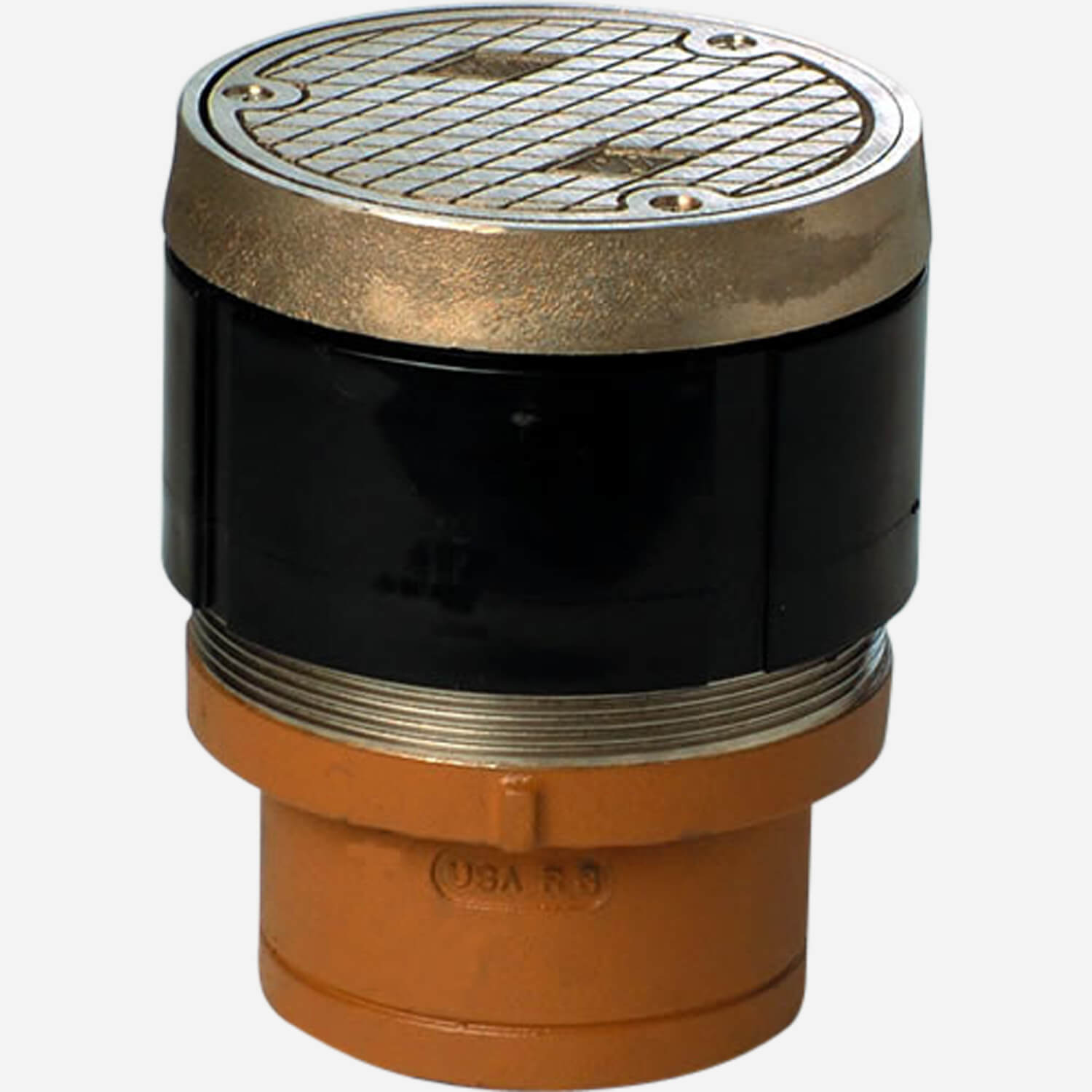

Images	4020 Cleanout (hi res jpg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top - No Hub Outlet - Gasket Seal - ABS Plug	40 KB

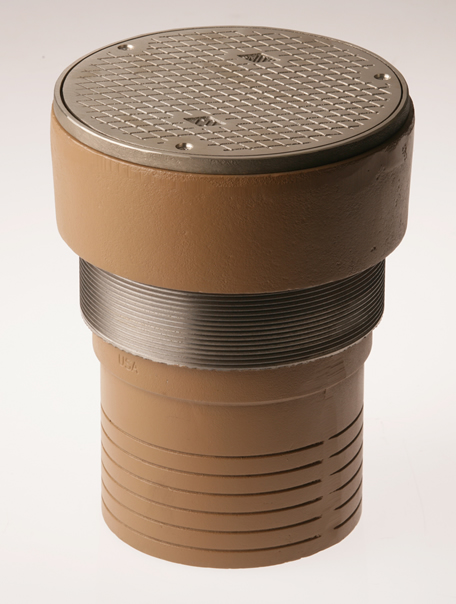

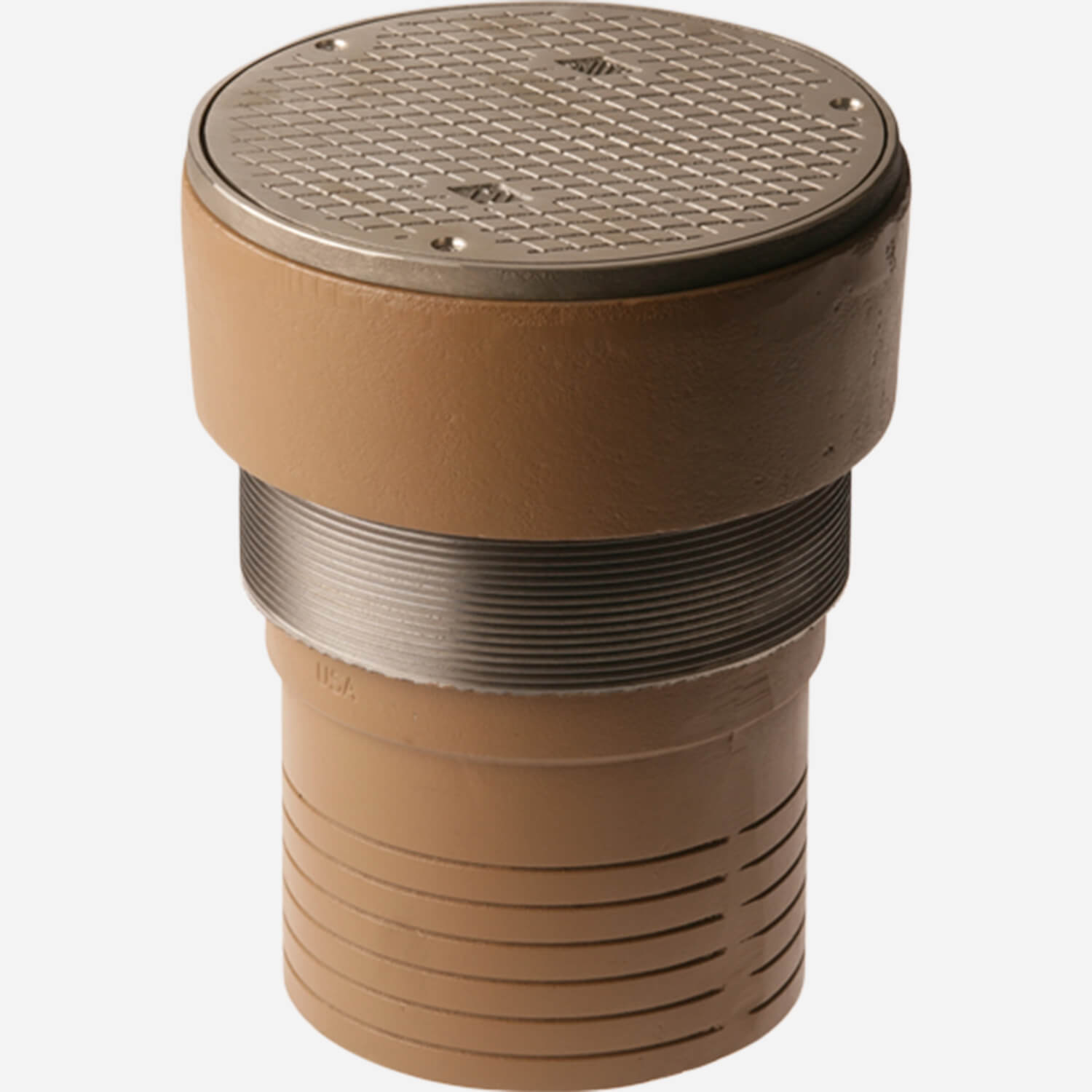

Images	4023 Cleanout (hi res jpg)	Finished Floor Cleanouts with "Twis-To-Floor® Adjustable Top - Round Nickel Bronze Top; Taper Thread Bronze Plug - No Hub Outlet or Spigot Outlet	143 KB
