Figure Number: 270FM
Contact a Representative

270FMElectronic Trap Primer in Flush Mount Enclosure

Electronic Trap Primers deliver a timed discharge of water to the floor drain P-trap to ensure the traps maintain a water seal. Flush Mount or recessed Electronic Trap Primer mount flush with the finished wall.

Flush Mount (Recessed) Trap Primers feature:

  • A multi-port outlet assembly primes 4 to 36 traps.
  • A factory pre-set timer is programmed to discharge water to the trap every 24 hours.
  • The steel recessed mounting enclosure fits between studs, 16-inches (40.64 cm) on center.
  • An optional cover or hinged access door is available.
  • Compatible with Building Management System (BMS)
  • Consists of shut-off valve, solenoid valve, control box, atmospheric vacuum breaker and copper manifold
  • ASSE, IAPMO (UPC), and IAPMO EGS (UL 1951) Listed
  • Available in 270FM, 271FM, 272FM configurations (see figure list below)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof Screws -U, Hinged Access Door with Allen Key Lock -AKL, Hinged Access Door with Cylinder Lock -CL, Solid Stainless Steel Cover -SSC, Hindged Access Door with Screwdriver Latch -SL, (2) 3/8” (10) Tappings -TAP
  • Compliance/Certifications
    IAPMO NRTL EGS
Installation InstructionsInstall/Operate Guide 270, 271, 272 Trap Primer (pdf)
View
SubmittalSubmittal 270FM Trap Primer (pdf)
View
Technical Drawings
RFA 270FM Trap PrimerElectronic Trap Primer in Flush Mount Enclosure - Single Manifold with 8 OutletsRFA2 MB
RFA 271FM Trap PrimerElectronic Trap Primer in Flush Mount Enclosure - 3 Manifolds each with 8 outletsRFA2 MB
RFA 272FM Trap PrimerElectronic Trap Primer in Flush Mount Enclosure - 4 Manifolds each with 8 OutletsRFA4 MB
Literature / Videos
Submittal 271FM Trap Primer (pdf)Electronic Trap Primer in Flush Mount Enclosure - 3 Manifolds each with 8 outletsPDF2 MB
Submittal 272FM Trap Primer (pdf)Electronic Trap Primer in Flush Mount Enclosure - 4 Manifolds each with 8 OutletsPDF3 MB
MasterSpec: 221119, Domestic Water Piping Specialties (doc)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsDOC262 KB
MasterSpec: 221119, Domestic Water Piping Specialties (pdf)Vacuum breakers, Backflow preventers, Water pressure-reducing valves, Automatic water shutoff valve systems, Balancing valves, Temperature-actuated, water mixing valves, Strainers for domestic water piping, Outlet boxes, Hose stations, Hose bibbsPDF208 KB
Kwik Ship® Brands: Smith Fluid Controls (pdf)Kwik Ship® Brands: Smith Fluid Controls (pdf)PDF780 KB
Kwik Ship® Brands: Brochure (pdf)Kwik Ship Brands are a new way to order products. These standardized items are stocked locally, replenished weekly, and available for quick delivery, ensuring you get what you need with minimal delay.PDF9 MB
Kwik Ship® Brands: Commercial Engineering Approval FormKwik Ship® Brands: Commercial Engineering Approval FormPDF3 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Trap Primers Overview with Chris LevinsFluid Controls Trap Primers Overview with Chris LevinsVideo
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch

Figure Number 270FM Series [submittal]
Multi-port outlet assembly designed to prime 4 to 16 floor drain P-traps. Designed to inferface with Building Management System (BMS). Hardwire electrical connections provided.

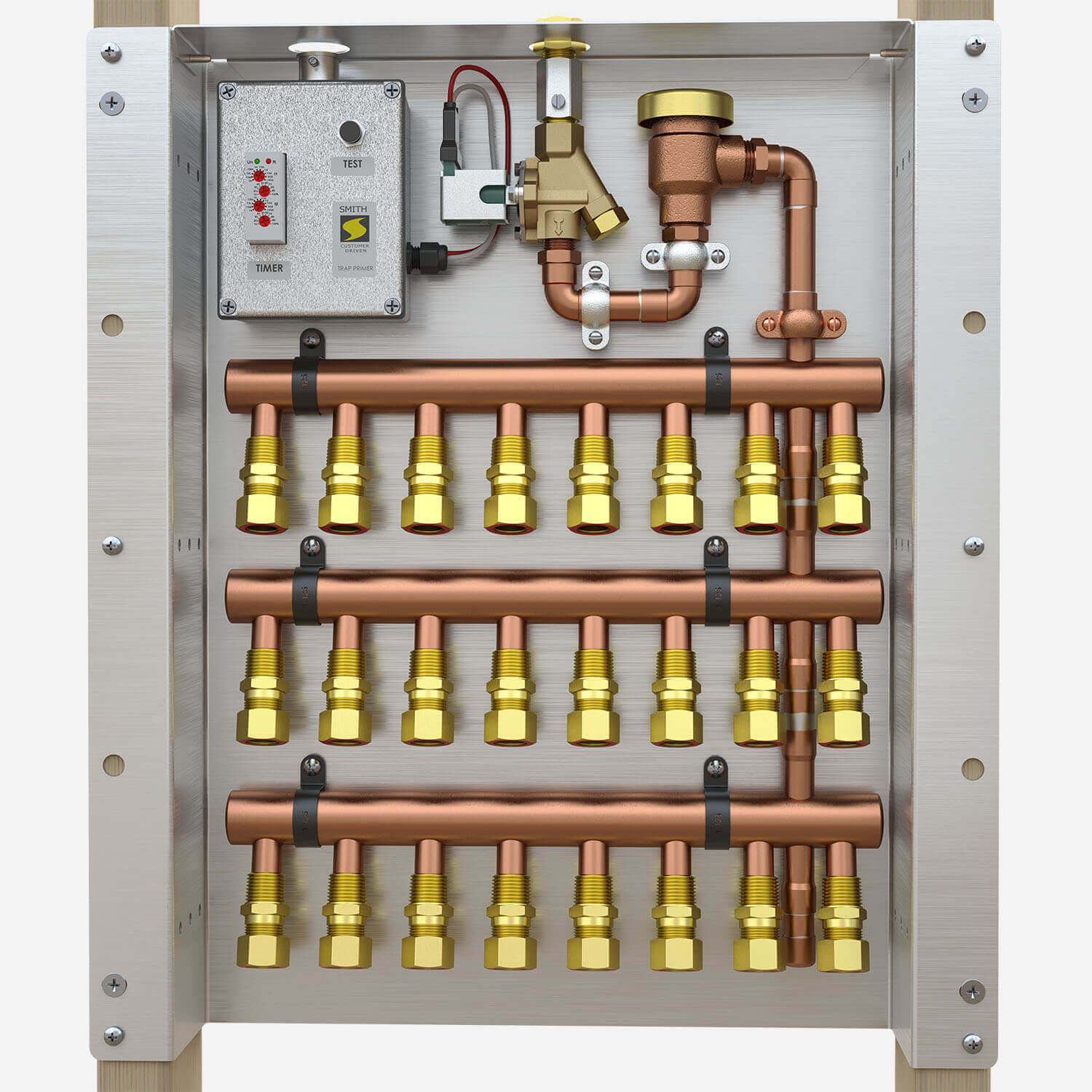

Figure Number 271FM Series [submittal]
Multi-port outlet assembly designed to prime 16 to 24 floor drain P-traps. Designed to inferface with BMS. Hardwire electrical connections provided.

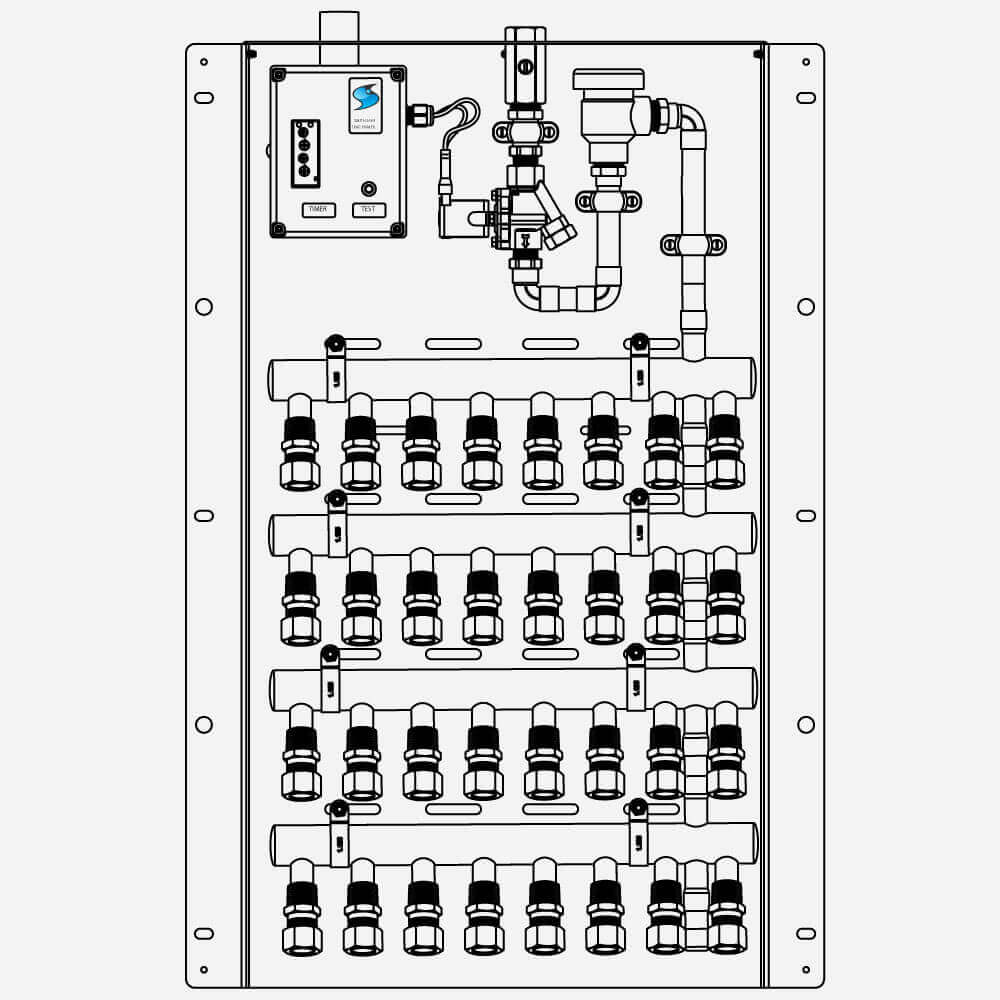

Figure Number 272FM Series [submittal]
Multi-port outlet assembly designed to prime 24 to 32 floor drain P-traps. Designed to inferface with BMS. Hardwire electrical connections provided.
