Figure Number: 1010DEK
Contact a Representative

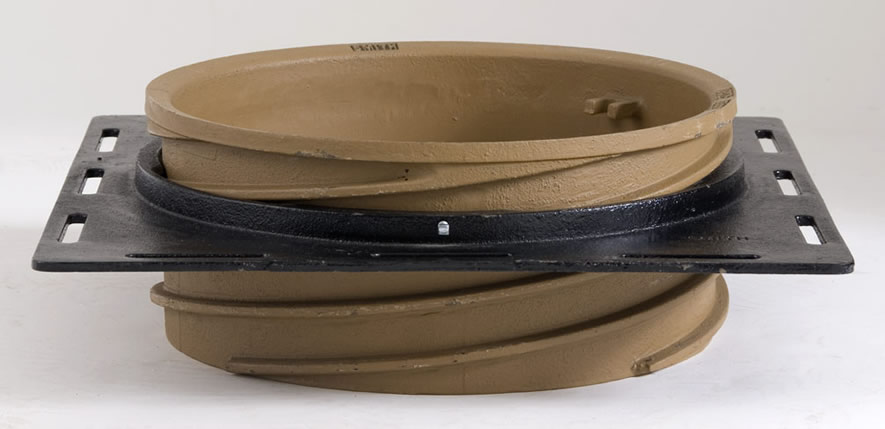

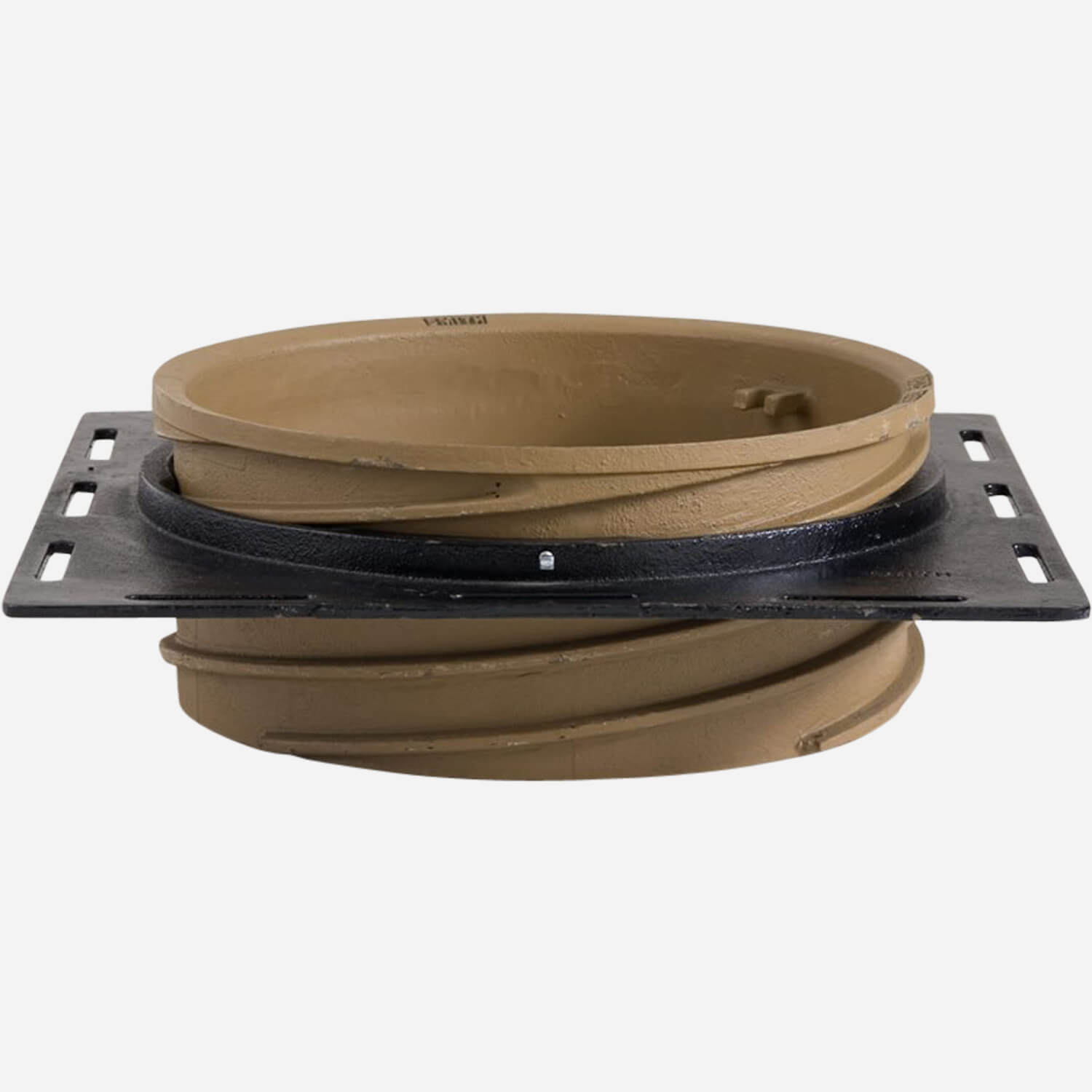

1010DEKTop Mount Drain Elevator

These drain elevators are designed to raise 1005, 1010, 1070 and 1080 type roof drains as much as 6-3/4” above the roof deck to compensate for insulation thickness. Constructed of Duco coated cast iron and set into a top mount reversible collar, they eliminate the need for conventional extensions, underdeck clamps and sump receivers.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Roof Drain
SubmittalSubmittal 1010DEK Sleeve and Plate (pdf)
View
Technical Drawings
1010DEK Sleeve and Plate (dwg)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]DWG484 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
1010DEK Sleeve and Plate (hi res jpg)Top Mount Drain Elevator Sleeve and Deck Plate for Large General-Purpose Roof Drain; Used to elevate the Figure 1010 type roof drains on top side of roof deck to compensate for insulation thickness [1010DEK | Cast Iron Sleeve and Deck Plate]JPG46 KB
