Figure Number: 2694DA
Contact a Representative

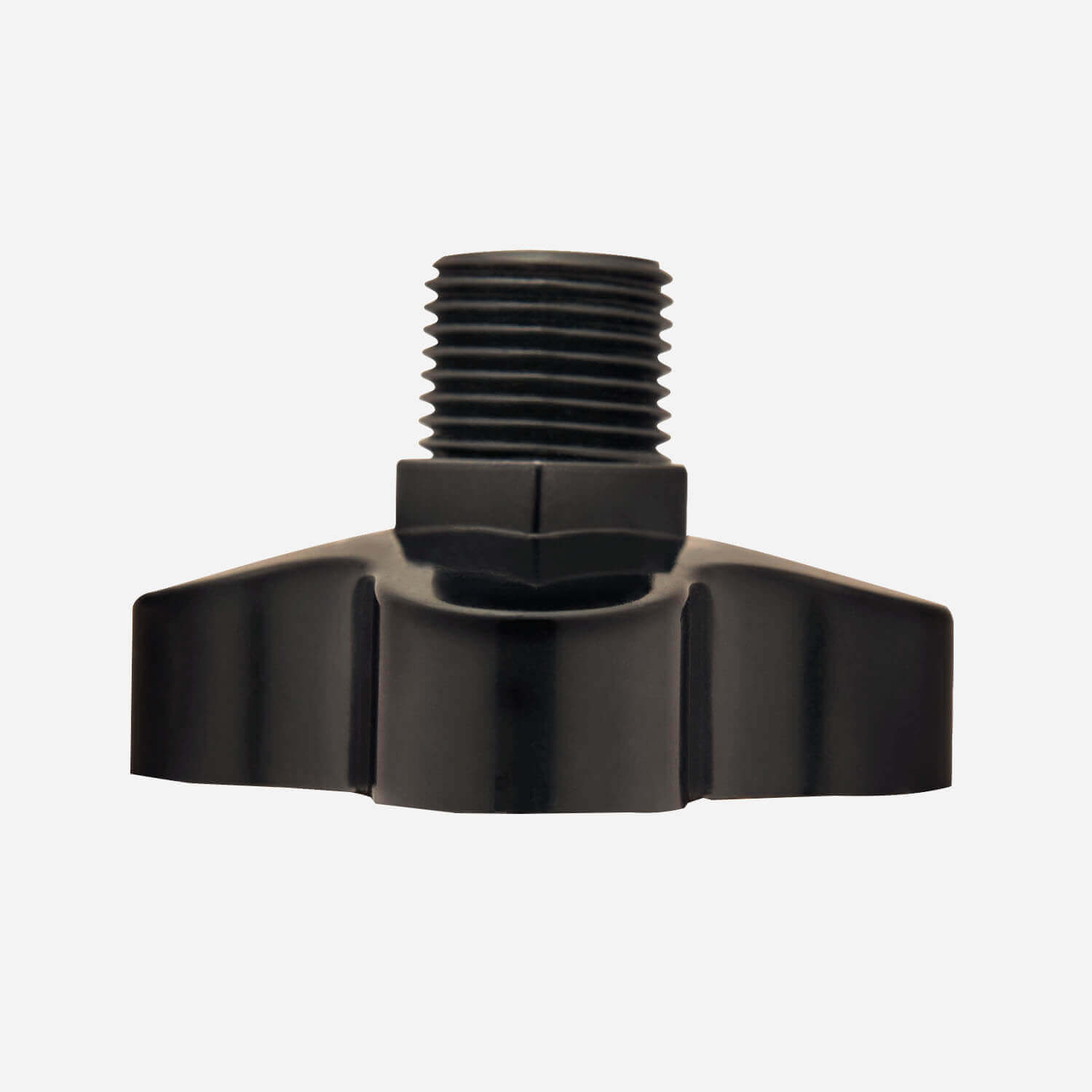

2694DACloverleaf Style Trap Priming Distribution Unit

Distribution units connect to trap primers and divide the flow of water evenly in order to prime up to four traps with one trap primer. The Trap Priming Distribution Unit simply and effectively primes up to four floor drains with only one Trap Priming Valve. Unit must be installed level. This distribution is a Cloverleaf Style. It is available in lead-free cast brass or ABS.

The Cloverleaf Style Distribution Unit features:

  • Cast lead-free brass or ABS
  • Connects to 2 to 4 trapped drains

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Compliance/Certifications
    cUPC, Lead Plumbing Law certified by IAPMO R & T, IAPMO IGC 178
SubmittalSubmittal 2694DA Distribution Unit
View
Technical Drawings
DWG 2694DA Distribution UnitCloverleaf Style Trap Priming Distribution UnitDWG347 KB
RFA 2694DA Distribution UnitRFA576 KB
Literature / Videos
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Distribution Units Overview with Chris LevinsFluid Controls Distribution Units Overview with Chris Levins Video
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch
DescriptionLead-Free Cast Brass Body Figure No.ABS Body Figure No.

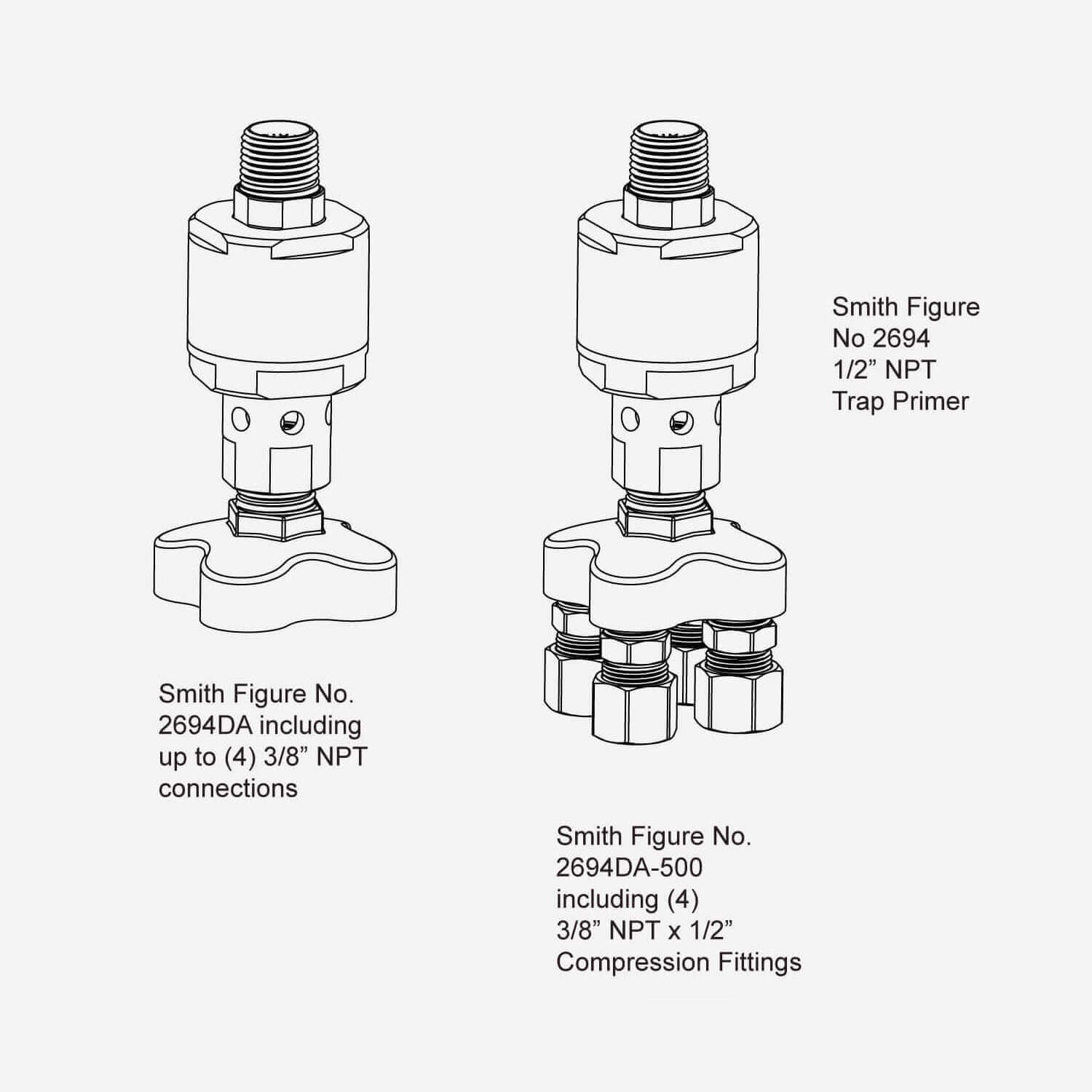

(4) 3/8" Female Connections with (2) Plugs 2694DA 2694DA-ABS

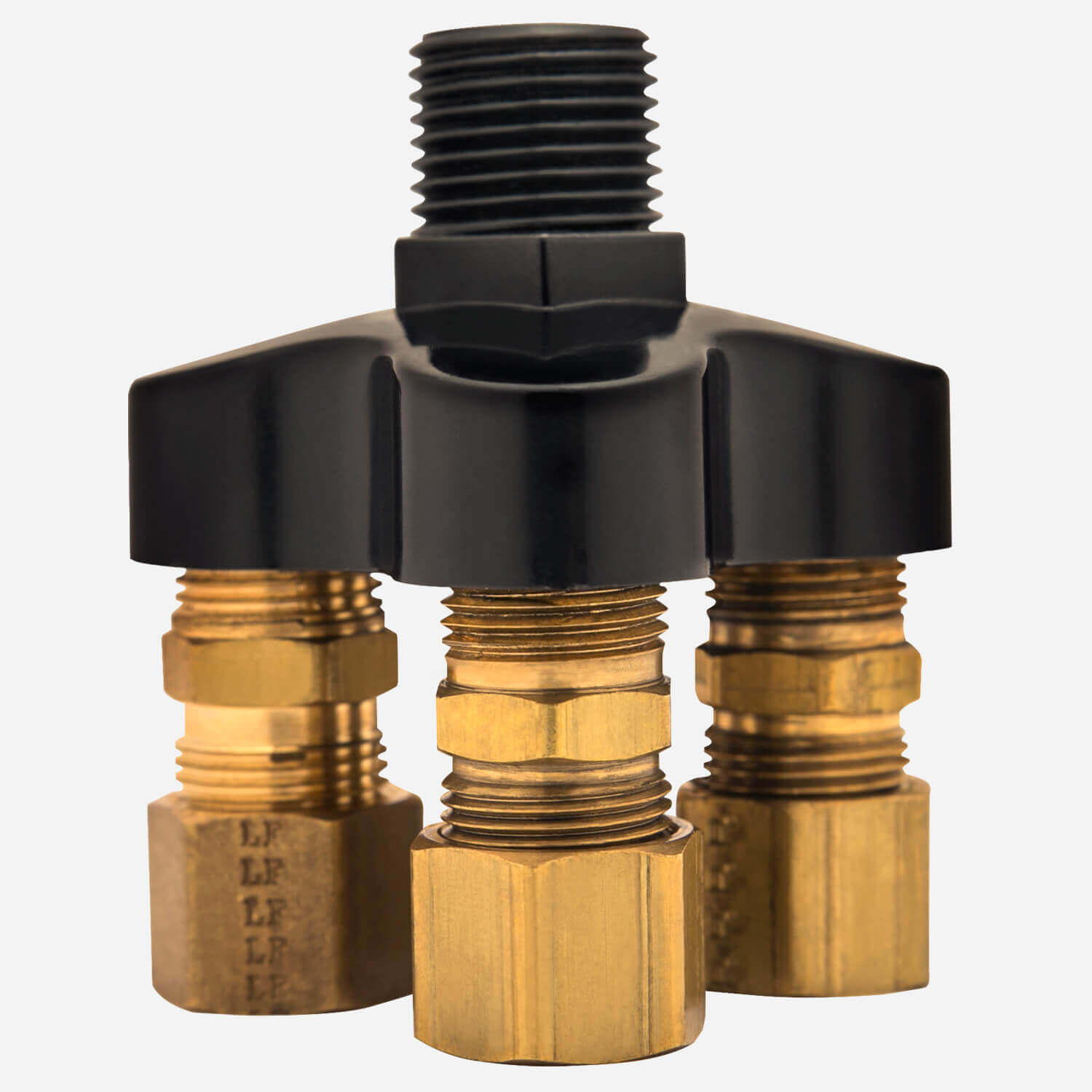

(4) 3/8" NPT x 1/2"(13) O.D. Compression Fitting 2694DA-500 2694DA-ABS-500
(4) 3/8" NPT x 5/8"(16) O.D. Compression Fitting 2694DA-625 2694DA-ABS-625
