Figure Number: 2683
Contact a Representative

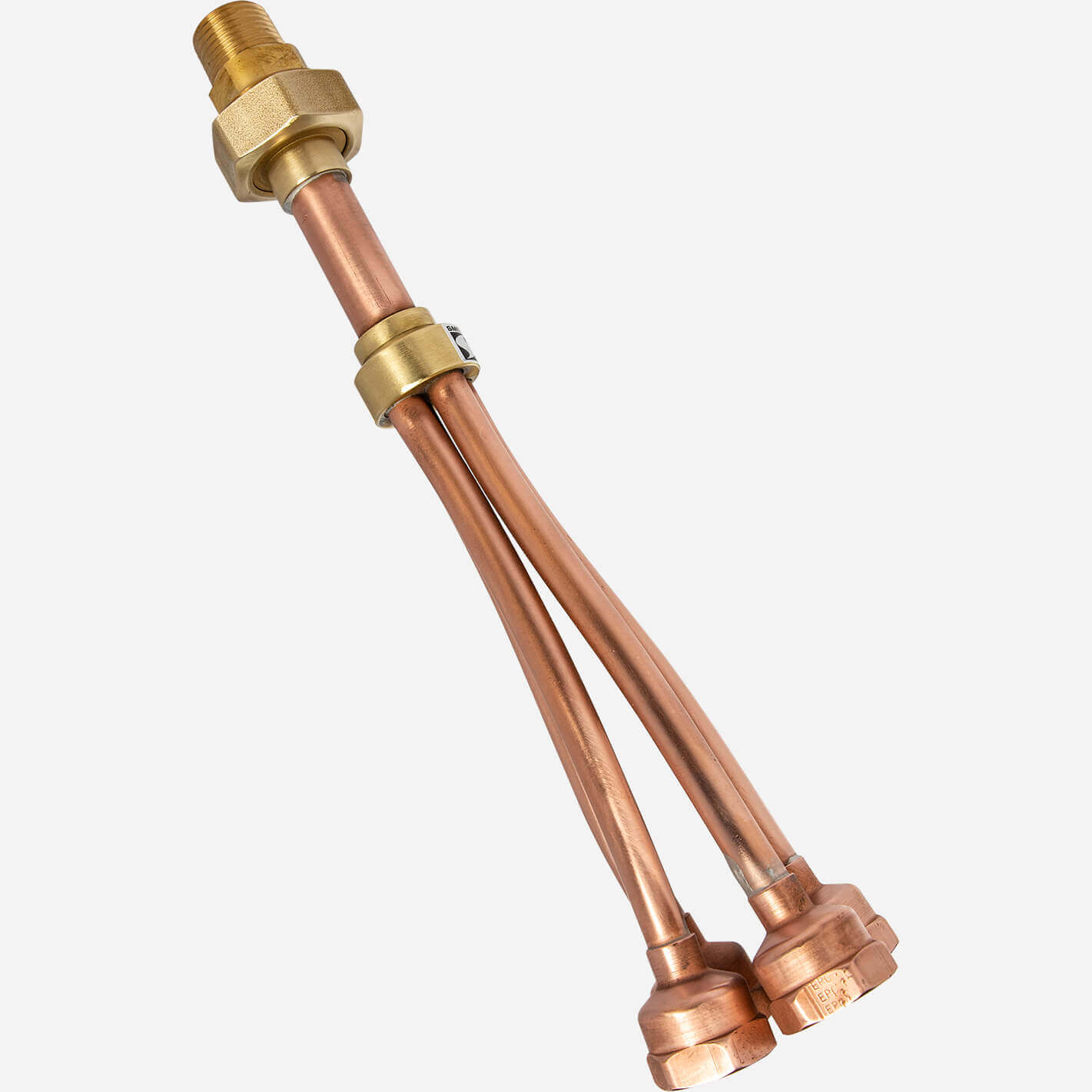

2683Branch Style Trap Priming Distribution Unit

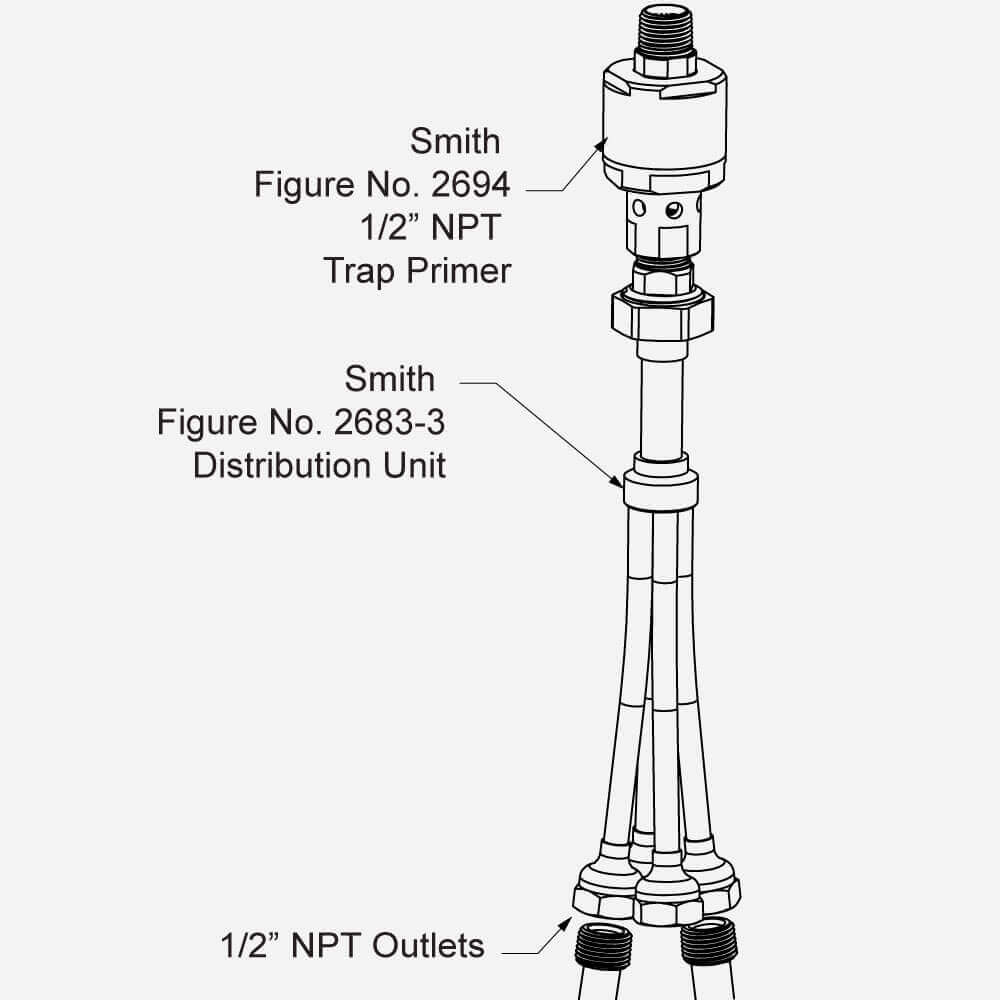

The distribution unit simply and effectively primes up to four floor drain traps with one trap primer. The distribution unit connnects with the trap primer and can be provided with various outlet connections.

Branch Distribution Unit feature:

  • Branches are flexible for ease of connection
  • Water leaving the trap primer is distributed evenly between branches
  • A variety of connection types are available

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Compliance/Certifications
    cUPC, IAPMO IGC 178
SubmittalSubmittal 2683 Series Distribution Unit
View
Technical Drawings
DWG 2683 Series Distribution UnitBranch Style Trap Priming Distribution UnitsDWG422 KB
Literature / Videos
Smith Fluid Controls Brochure (pdf)Brochure - Trap Primers, Distribution Units and other AccessoriesPDF3 MB
Smith Fluid Controls FlyerFlyer - Trap Primer, Distribution Units and other AccessoriesPDF2 MB
Fluid Controls with Chris RylantFluid Controls with Chris RylantVideo
Fluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringFluid Controls Product Line Overview with Jerry McDanal, VP of EngineeringVideo
Fluid Controls Distribution Units Overview with Chris LevinsFluid Controls Distribution Units Overview with Chris Levins Video
Fluid Controls - Trap Primers & Distribution Units with Chris LevinsFluid Controls - Trap Primers & Distribution Units with Chris LevinsVideo
Can't find what you are looking for? Get in touch

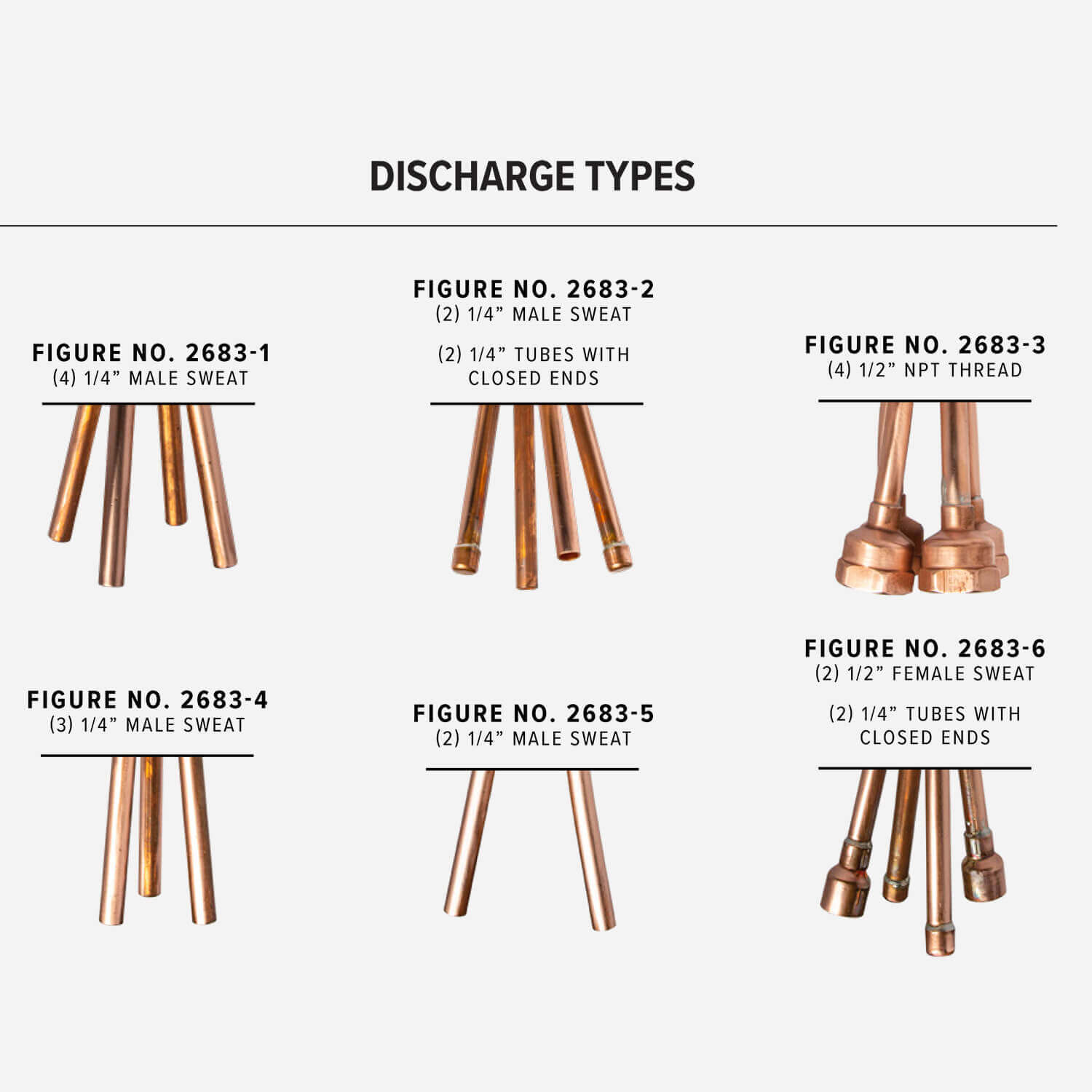

2683-1 | (4) 1/4" Male Sweat End Outlets
2683-2 | (4) 1/4" Sweat Plain Ends (2) Closed Ends
2683-3 | (4) 1/2" NPT Outlets
2683-4 | (3) 1/4" Male Sweat End Outlets
2683-5 | (2) 1/4" Male Sweat End Outlets
2683-6 | (2) 1/2" Female Sweat Outlets (2) Closed Ends
