Figure Number: 0211Y-M58-M54 Series

0211Y-M58-M54 SeriesAdjustable Support for Siphon Jet Water Closets - Horizontal Fittings with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring

0211Y-M58-M54 Series is an adjustable support specifically for Siphon Jet Water Closets. The supports designed for a No-Hub horizontal fittings. Barrels are available in 14" (355 mm) short dimension (0211) and 36" (915 mm) long dimension (0221). They are available in single left-hand orientation, single right-hand orientation or double (back-to-back.

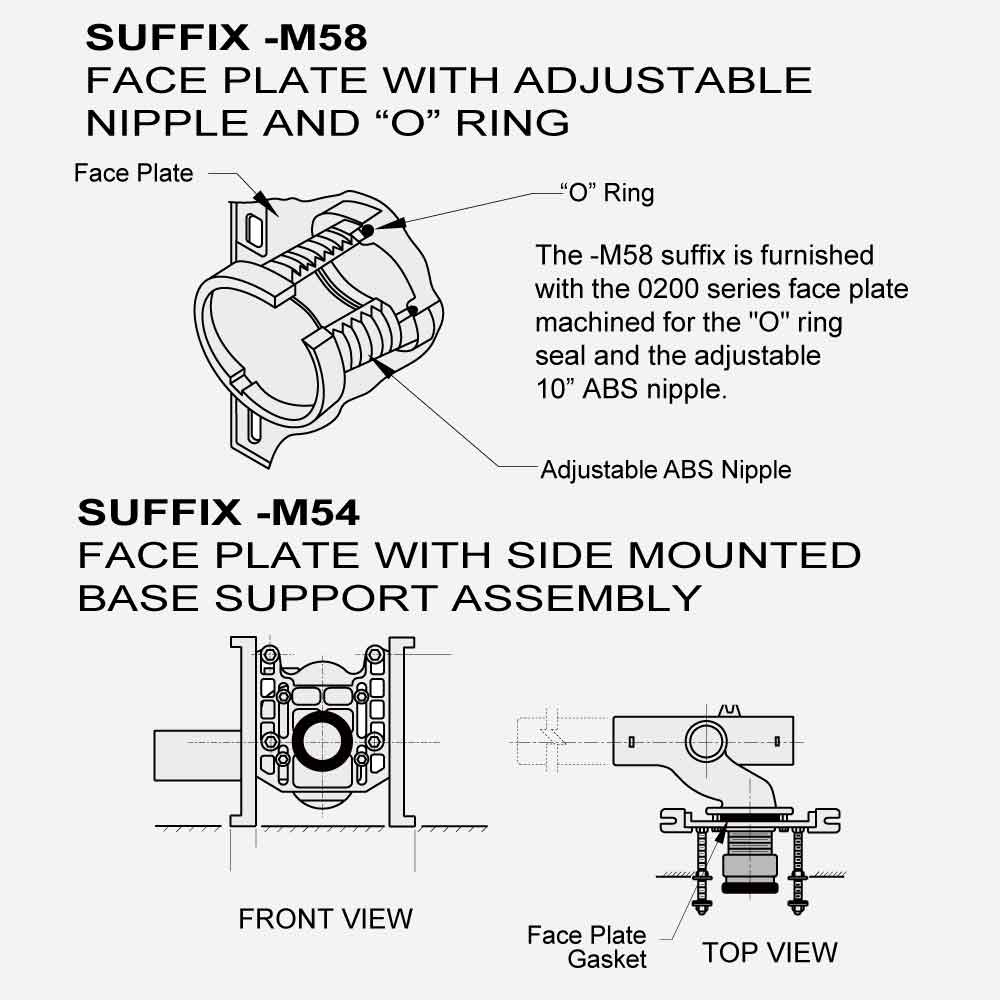

Additionally, the support features Face Plate, Side Mounted Base Support Assembly (Suffix -M54) and Adjustable Nipple, O-Ring (Suffix -M58).

Easy to Build, Quick to Assemble, Adjustable, Smaller Chase Space

The Quarterback Water Closet Support from Jay R. Smith Mfg. Co. is designed for a better fit in less chase area. Newly designed legs provide easy access to the securing bolts of the faceplate allowing for height adjustment even with adjacent wall framing. The legs also have four additional securing slots, which can accommodate accessories to aid in installation, especially for pre-fabrication.

Pro Tip: The legs on this support provide numerous options to secure and transport a battery and/or mount or affix the supply line for the flush valve.

Note: if heavy duty supports are necessary see Figures 0211Y-M54-XX Series (750 lbs rating) or 0211Y-M54-XK Series (Bariatric 1,000 lbs rating).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Water Closet Support
  • Benefit
    Labor Saving
  • Compliance/Certifications
    ASME A112.6.1M up to a 500 lbs static load rating
Technical Drawings
Lav Support, Support, Roof Drain, Floor Drain, Water Hammer Arrestor (itm)0208LY-M54 thru 0250DY4-M58-M54; 0636 and 0637; 0700 thru 0800D; 0800; 0800D; 1015Y; 1045Y; 2005Y-B; 2141Y; 3041ZIP8 MB
Literature / Videos
Technical Data for Water Closet Supports (pdf)Technical Data for Water Closet SupportsPDF3 MB
Article: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsArticle: C.J. Erickson Anticipates Needs of Future Scientists with Smith Specialty ProductsPDF419 KB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
Specifications for Water Closet SupportsSpecifications for Water Closet SupportsDOC113 KB
Value Added Fixture Supports Brochure (pdf)Value Added Fixture Supports Brochure (pdf)PDF2 MB
Article: F. W. Spencer & Son Meets Levi’s Stadium’s Tight Deadline Thanks to Jay R. Smith Prefab Ready Products (pdf)EMC Sees 30-Percent Labor Savings with Victaulic 3D Renderings and Installation-Ready CouplingsPDF2 MB
Parts Order Guide for Water Closet SupportsParts Order Guide for Water Closet SupportsPDF4 MB
Order Guidelines for Water Closet SupportsOrder Guidelines for Water Closet SupportsPDF169 KB
Presentation Water Closet SupportsSales Presentation: Water Closet SupportsPPT10 MB
Water Closet Supports (video)Video Water Closet SupportsVideo
Can't find what you are looking for? Get in touch

Adjustable Support for Siphon Jet Water Closets - No-Hub Horizontal Fittings
with Face Plate, Side Mounted Base Support Assembly, Adjustable Nipple, O-Ring
0211LY-M54-M58 | Left Hand, 14" Barrel
0211RY-M54-M58 | Right Hand, 14" Barrel
0211DY-M54-M58 | Double (back-to-back), 14" Barrel
0221LY-M54-M58 | Left Hand, 36" Barrel
0221RY-M54-M58 | Right Hand, 36" Barrel
0221DY-M54-M58 | Double (back-to-back), 36" Barrel

See here for 0211Y and 0211Y-M54
