2270Small Area Floor Drains with 8-1/2" Round Tops with Bar Grate

2270, 2275

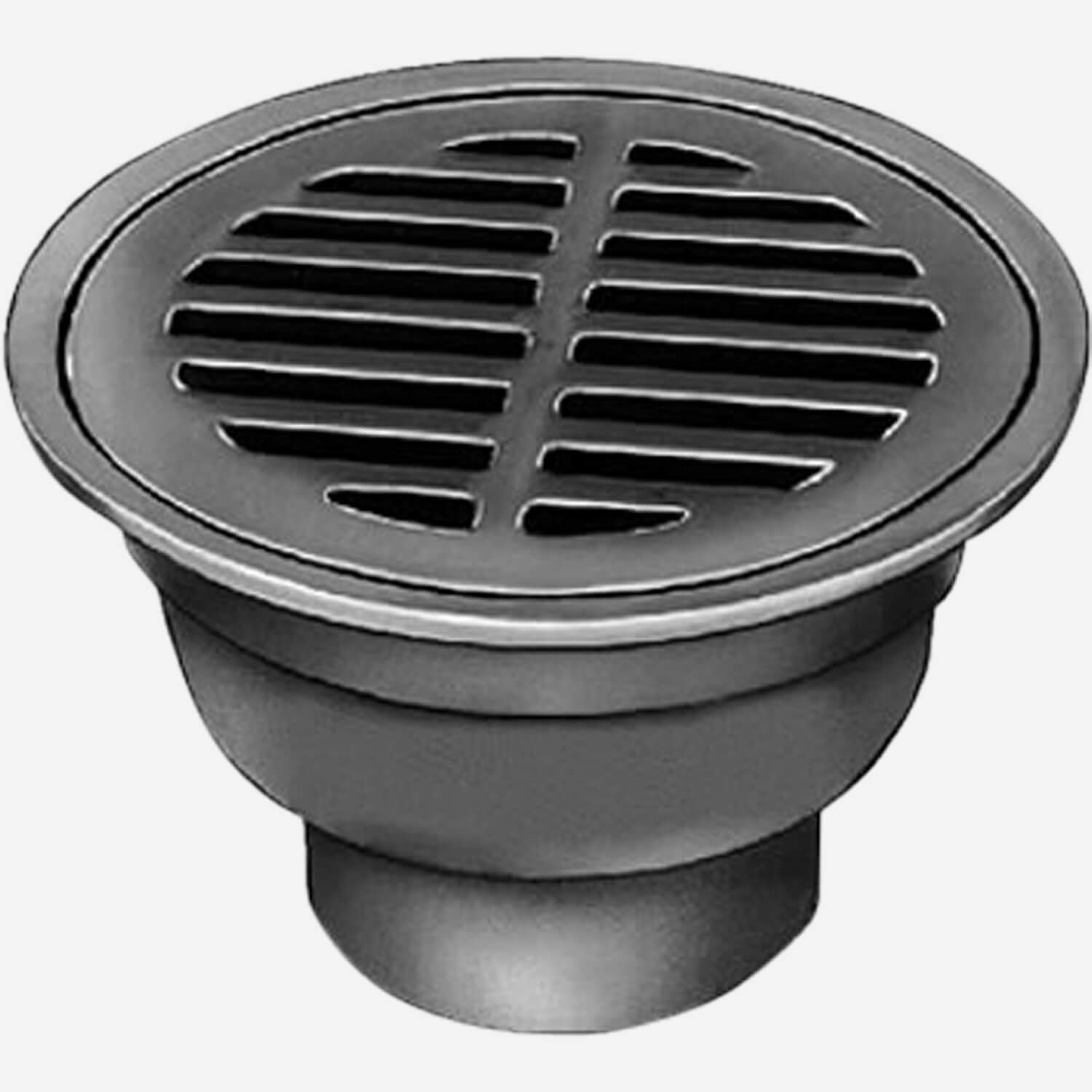

Available with down or side outlets, this 8-1/2" (216 mm) diameter., durable, Duco coated cast iron floor drain is fitted with a loose set ductile iron grate for easy access. Capable of supporting medium traffic and loads up to 4,999 lbs. (2,250 kg), this shallow body drain is designed for "on grade" installation in areas where wastewater is free of sediment and debris.

2271, 2276

Heavy duty capacity drains are also available.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Dome Grate -D, Flat Bottom Strainer -FBS, Hinged Grate -H, L Speedi-Set® Service Weight, LXH Speedi-Set® Extra Heavy, NO-HUB Adaptor, Sediment Bucket -B, Vandal Proof Grate - U, T Threaded Outlet, (2) 3/8” (10) Tappings -TAP, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19)
  • Optional Materials
    Ductile Iron Grate - M, Galvanized -G - Body, Nickel Bronze Strainer -NB, Polished Bronze -PB - Strainer
  • Product Type
    Floor Drain
SubmittalSubmittal 2270 Floor Drain (pdf)
View
Technical Drawings
2270 Floor Drain (dwg)Floor Drains - Small Area Medium Duty [Figure 2270C | Bottom Caulk Outlet; Figure 2270Y | Bottom No-Hub Outlet; Figure 2275C | Side Caulk Outlet; Figure 2275T | Side Threaded Outlet]DWG37 KB
2271 Floor Drain (dwg)Floor Drains - Small Area Heavy Duty [Figure 2271C | Bottom Caulk Outlet; Figure 2271Y | Bottom No-Hub Outlet; Figure 2271T | Bottom Threaded Outlet; Figure 2276C | Side Caulk Outlet; Figure 2276T | Side Threaded Outlet]DWG30 KB
Literature / Videos
Submittal 2271 Floor Drain (pdf)Floor Drains - Small Area Heavy Duty [Figure 2271C | Bottom Caulk Outlet; Figure 2271Y | Bottom No-Hub Outlet; Figure 2271T | Bottom Threaded Outlet; Figure 2276C | Side Caulk Outlet; Figure 2276T | Side Threaded Outlet]PDF393 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Specifications for Floor DrainsSpecifications for Floor DrainsDOC220 KB
Technical Data for Floor DrainsTechnical Data for Floor DrainsPDF636 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Floor Drains - Small Area Medium Duty

  • Figure 2270C | Bottom Caulk Outlet
  • Figure 2270Y | Bottom No-Hub Outlet
  • Figure 2275C | Side Caulk Outlet
  • Figure 2275T | Side Threaded Outlet


Floor Drains - Small Area Heavy Duty

  • Figure 2271C | Bottom Caulk Outlet
  • Figure 2271Y | Bottom No-Hub Outlet
  • Figure 2271T | Bottom Threaded Outlet
  • Figure 2276C | Side Caulk Outlet
  • Figure 2276T | Side Threaded Outlet
