Figure Number: 0761
Contact a Representative

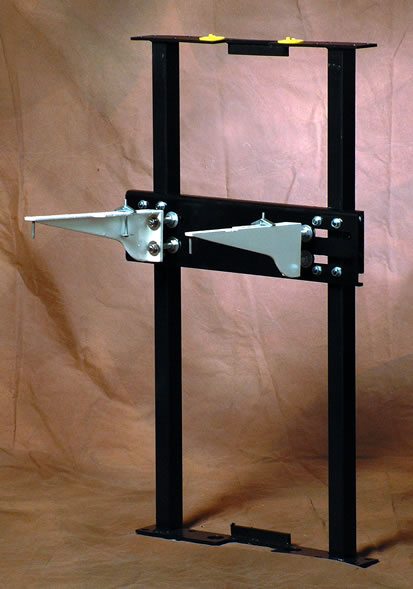

0761Labor Saver® Upright with Acid Resistant Coated Arms for Flat Slab and High Back Lavatories - Floor Mounted

Pre-assembled, Easy to Adjust, Good for Narrow Wall and Metal Stud Configurations.

The welded, unitized frame of our Labor Saver® floor mounted lavatory support drastically speeds and simplifies installation. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. A vertically and horizontally adjustable steel plate clamps on to the frame’s uprights when height specifications are met. Support arms coated for acid resistance are bolted to the plate and remain visible under the lavatory upon installation. Leveling screws can be easily adjusted from underneath the arms to ensure a precise installation. Toggle bolts secure the lavatory to the support arms.

Pro Tip: The unitized structure makes installation much simpler and faster when compared with installing and getting two individual uprights plumb. Also, the adjustment brackets provide the opportunity to change rough-in dimensions, should the fixture be changed at the last minute.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
  • Patent
    6,360,381
  • Benefit
    Labor Saving
SubmittalSubmittal 0760 Support
View
Literature / Videos
Submittal 0760D SupportSubmittal 0760D SupportPDF227 KB
Submittal 0761 SupportSubmittal 0761 SupportPDF211 KB
Submittal 0761D SupportSubmittal 0761D SupportPDF216 KB
Article: Labor Saver®Article: Labor Saver®PDF141 KB
Specifications for Lavatory SupportsSpecifications for Lavatory SupportsDOC141 KB
Lavatory Support Flyer (pdf)Flyer Lavatory SupportPDF3 MB
Jay R. Smith Contractor Labor Savings and Prefabrication BrochureContractor Labor Saving Products Brochure (pdf)Contractor Labor Saving Products Brochure (pdf)PDF6 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Case Study Federal Building Installation Labor Saver®Case Study Federal Building Installation Labor Saver®PDF58 KB
Case Study Lourdes Hospital Labor Saver®Case Study Lourdes Hospital Labor Saver®PDF153 KB
Case Study Pre-Fabrication Battery Installation Labor Saver®Case Study Pre-Fabrication Battery Installation Labor Saver®PDF51 KB
0760 - Labor Saver Upright with Acid Resistant Coated Arms for Flat Slab and High Back Lavatories (hi res jpg)JPG39 KB
Technical Data for Lavatory SupportsTechnical Data for Lavatory SupportsPDF493 KB
Quote Worksheet Smith Drainage SystemsQuote Worksheet Smith Drainage SystemsPDF36 KB
Order Guidelines for Lavatory SupportsOrder Guidelines for Lavatory SupportsPDF120 KB
Parts Order Guide for Lavatory SupportsParts Order Guide for Lavatory SupportsPDF748 KB
Labor Saver® (video)Video Labor Saver®Video
Can't find what you are looking for? Get in touch
  • 0760D For Back-to-Back Lavatories
  • 0761 For High Back Lavatories with Extended Lugs
  • 0761D Back-to-Back Lavatories
