Figure Number: 0710-M24

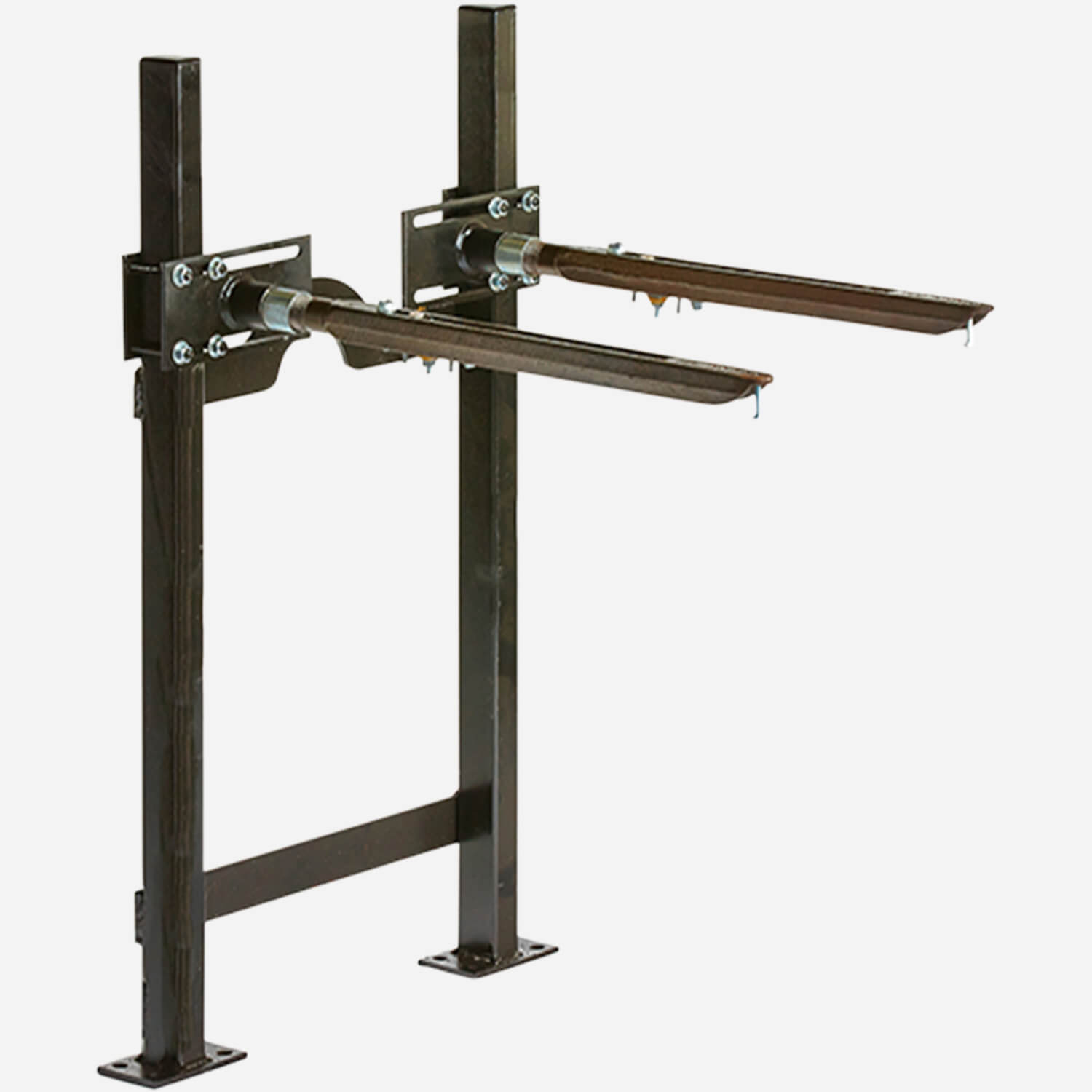

0710-M24Labor Saver® Upright Support - Floor Mounted

The rigid, one-piece frame of our Labor Saver® floor mounted support with arm extensions drastically speed and simplify installation in thick walls. Fabricated of epoxy coated heavy gauge steel, they are built to fit in narrow wall cavities. Adjustable steel sleeves are clamped to the frame’s uprights when height specifications are met. The sleeves are internally threaded to accept horizontal adjustment of the threaded arms, locknuts and arm extensions. To ensure that the lavatory is solidly affixed to the concealed support arms, our Sure-set locking device easily adjusts from underneath the lavatory to firmly grip its inner wall while leveling screws ensure a precise installation.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Product Type
    Lavatory and Sink Support
Technical Drawings
DWG 0710-M24 SupportDWG 0710-M24 SupportDWG94 KB
DWG 0710-M34 SupportDWG 0710-M34 SupportDWG144 KB
Literature / Videos
Submittal 0710-M34 SupportSubmittal 0710-M34 SupportPDF223 KB
Article: Labor Saver®Article: Labor Saver®PDF141 KB
Specifications for Lavatory SupportsSpecifications for Lavatory SupportsDOC141 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Value Added Fixture Supports Brochure (pdf)Value Added Fixture Supports Brochure (pdf)PDF2 MB
Lavatory Support Flyer (pdf)Flyer Lavatory SupportPDF3 MB
Case Study Federal Building Installation Labor Saver®Case Study Federal Building Installation Labor Saver®PDF58 KB
Case Study Lourdes Hospital Labor Saver®Case Study Lourdes Hospital Labor Saver®PDF153 KB
Case Study Pre-Fabrication Battery Installation Labor Saver®Case Study Pre-Fabrication Battery Installation Labor Saver®PDF51 KB
Cross Ref Standard Fixture Support vs LaborSaver®Cross Ref Standard to Labor Saver Fixture SupportPDF241 KB
Technical Data for Lavatory SupportsTechnical Data for Lavatory SupportsPDF493 KB
Parts Order Guide for Lavatory SupportsParts Order Guide for Lavatory SupportsPDF748 KB
Order Guidelines for Lavatory SupportsOrder Guidelines for Lavatory SupportsPDF120 KB
Labor Saver® (video)Video Labor Saver®Video
