Figure Number: 2320 and 2325
Contact a Representative

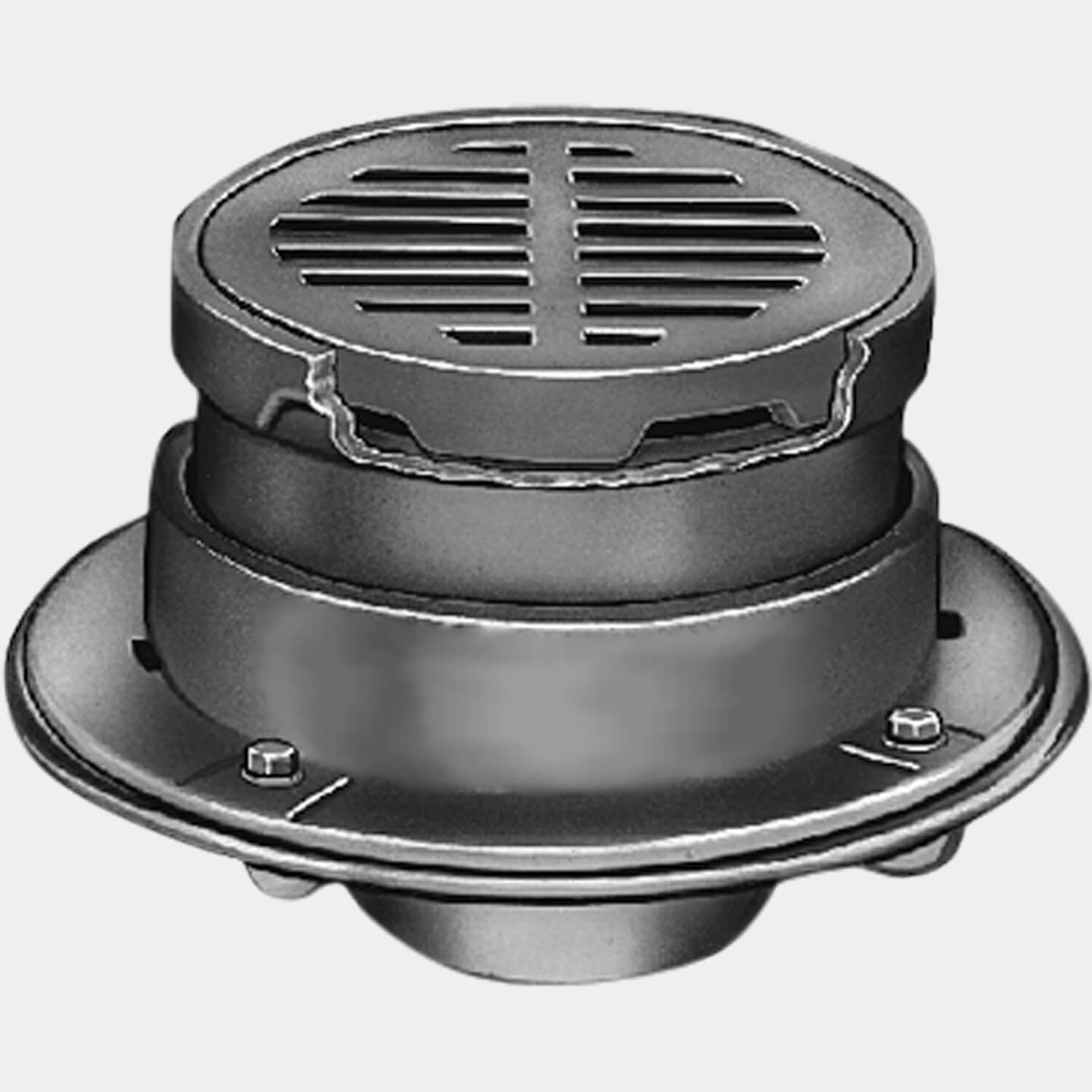

2320 and 2325Medium Duty Drain with Tractor Grate

The adjustable 8.5" tractor grate of this medium duty Duco cast iron drain will support loads up to 4,999 lbs. (2,250 kg.). The grate is also adjustable and can be easily and accurately leveled with adjacent flooring to prevent tripping hazards.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Vandal Proof Grate - U, Extension -E - (Specify Height), T Threaded Outlet, Square Top -S, Trap Primer Connection -P050 1/2" (13), -P075 3/4" (19), Flat Bottom Strainer -FBS (Fig. 2320 only), L Speedi-Set Service Weight (Fig. 2320 only), LXH Speedi-Set Extra Heavy (Fig. 2320 only), NO-HUB Adaptor (Specify Fig. 2646Y) (Fig. 2325 only), Bucket -B, Closure Plug -XP (Fig. 2320 only), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Galvanized Cast Iron -G, Nickel Bronze Top - NB, Polished Bronze Top - PB, Ductile Iron Grate - M
SubmittalSubmittal 2320, 2325 Floor Drain (pdf)
View
Literature / Videos
MasterSpec: 221319.13, Sanitary Drains (doc)Floor drains, Floor sinks, Trench drains, Channel drainage systems. DOC98 KB
MasterSpec: 221319.13, Sanitary Drains (pdf)Floor drains, Floor sinks, Trench drains, Channel drainage systems. PDF144 KB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Order Guidelines for Floor DrainsOrder Guidelines for Floor DrainsPDF120 KB
Parts Order Guide for Floor DrainsParts Order Guide for Floor DrainsPDF7 MB
Can't find what you are looking for? Get in touch

Duco Cast Iron Body and Flashing Collar with Adjustable Top and ADA Tractor Grate

Bottom Outlet
2320C | Caulk Outlet
2320T | Threaded Outlet
2320Y | No-Hub Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100), 05"(125), 06"(150)

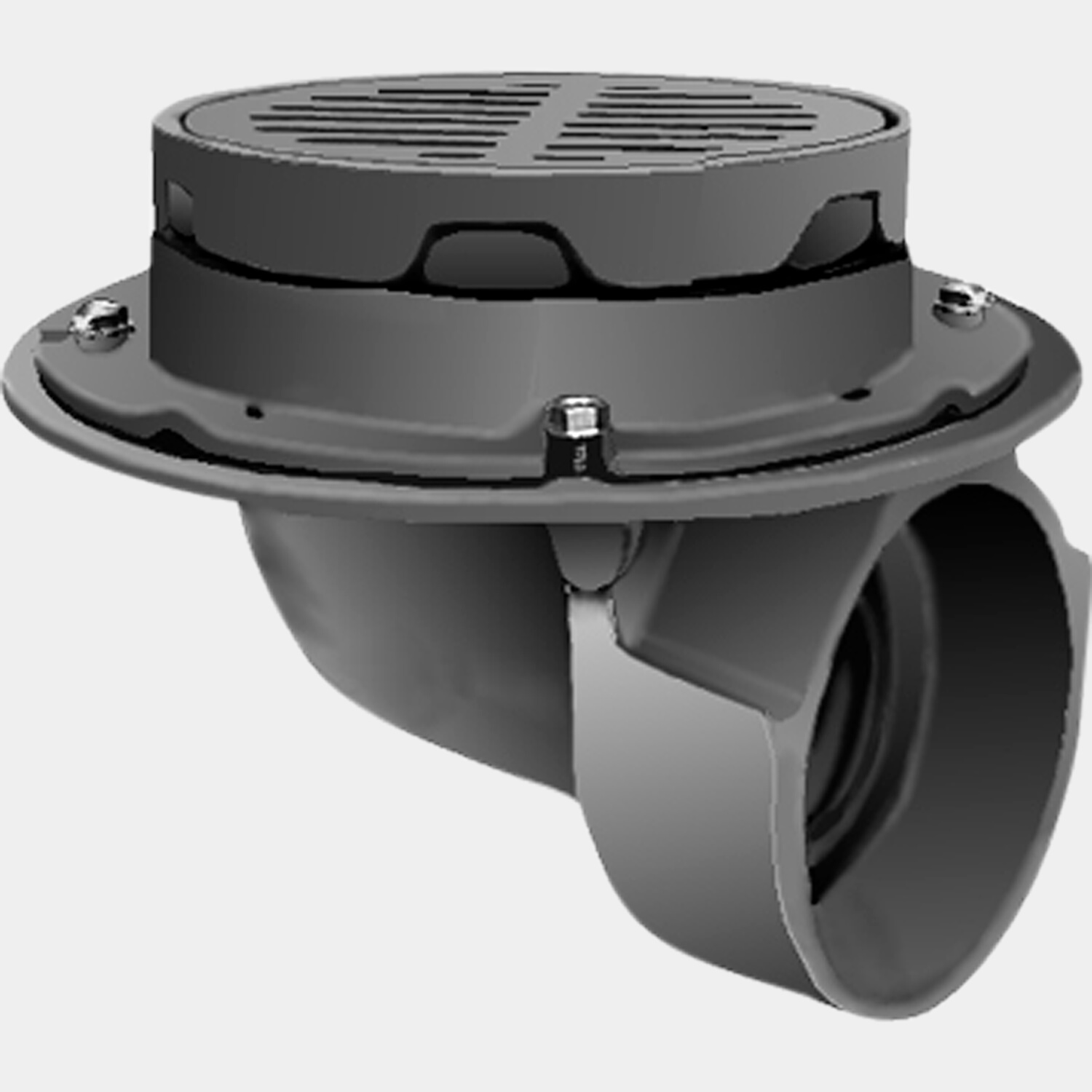

Side Outlet
2325C | Caulk Outlet
2325T | Threaded Outlet
Specify outlet pipe size 02"(50), 03"(75), 04"(100)
