Figure Number: 9755
Contact a Representative

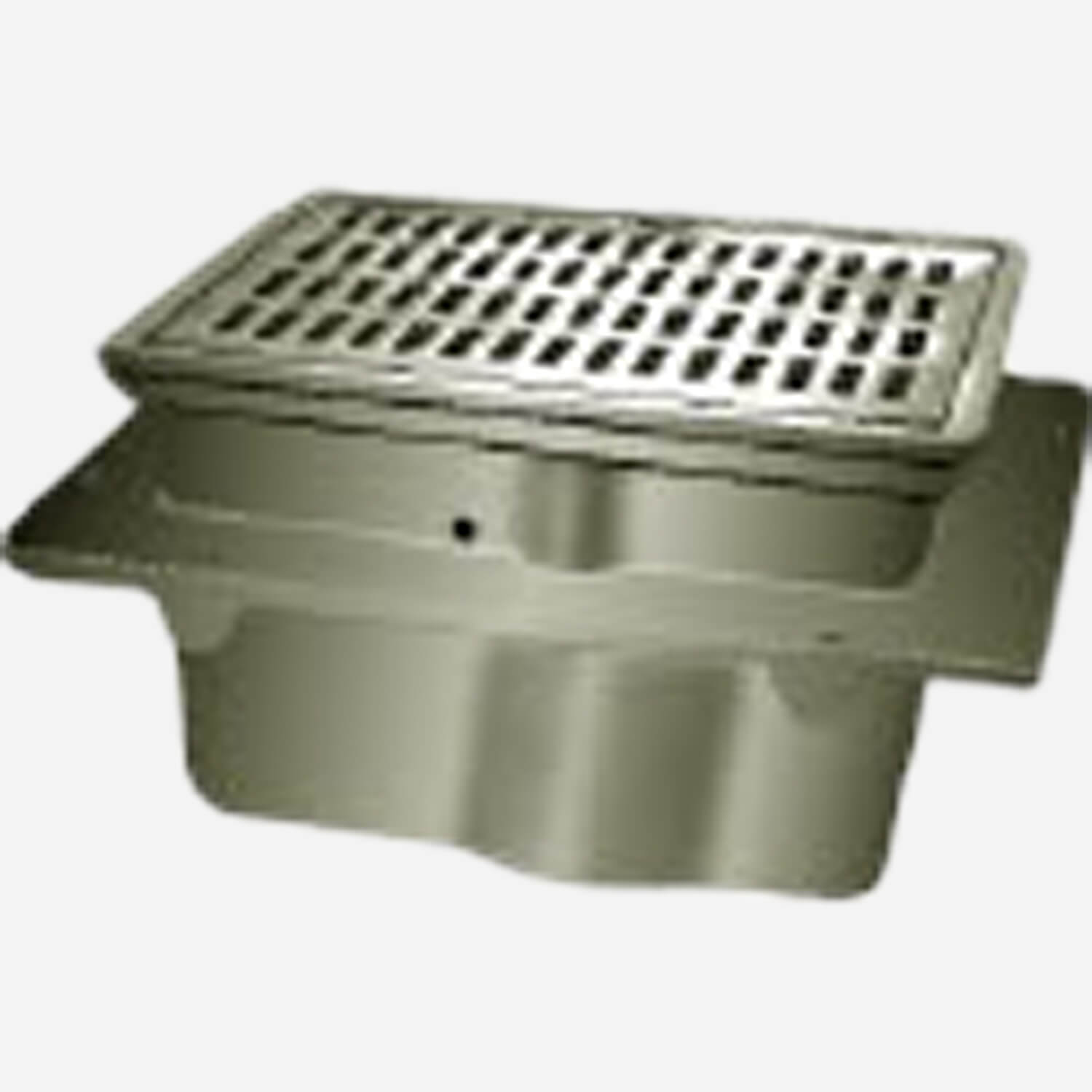

975513" x 10-3/4" Heavy Duty Stainless Steel Drain

Figure 9975 is heavy duty drain body fabricated of Type 304 rough finish stainless steel. The body supports a tough, loose set bronze grate that withstands heavy static loads while permitting easy access to the stainless sediment bucket underneath. This corrosion-resistant drain is fabricated for long service life in buildings that process corrosive liquids (ie. chemical laboratories, dairies, breweries, and atomic energy and bottling plants and others). It features an offset outlet for installations that require them. The size is 10-3/4"(273 mm) x 13" (330 mm).

The drain body can be fabricated of A-27 Carbon Steel when specified with suffix -A27. The bottom outlet can be specified with Butt Weld (BW) or No-Hub (Y).

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    4(100) or 6"(150) Dia. Funnel (Specify Fig. 9703), 8 3/4(220) x 3 3/4"(95) Funnel (Specify Fig. 9704), 90° Side Outlet (Specify Fig. 9759), Flashing Clamp with Seepage Holes - C, Seepage Holes -WSH, Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, CF8 (Equivalent to Type 304) Stainless Steel Grate -SSG, CF8M (Equivalent to Type 316) Stainless Steel - Grate -316, Nickel Bronze Grate - NB, Stainless Steel Satin Finished Grate -SFG
  • Product Type
    Drain
SubmittalSubmittal 9755 Drain (pdf)
View
Literature / Videos
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
Can't find what you are looking for? Get in touch
9755BW | Butt Weld Bottom Outlet
9755Y | No-Hub Bottom Outlet

Available Finish
Suffix -A27 | A-27 Carbon Steel
The grate is available in various optional finishes, see submittal
