Figure Number: 9745
Contact a Representative

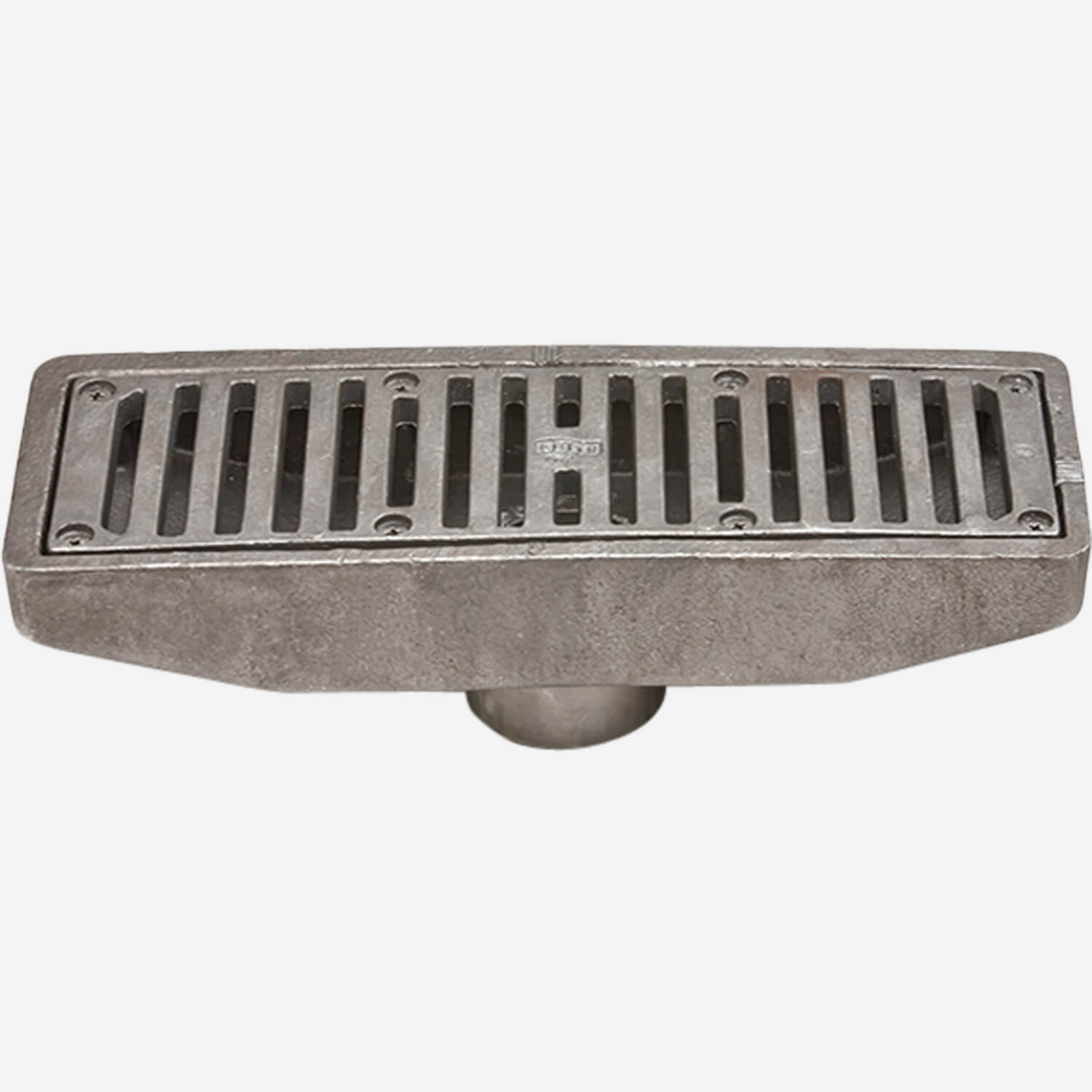

9745Gutter Drain

The CF8 rough finish stainless steel (equivalent to type 304) body and grate in this gutter drain resist corrosive liquids and offer long service life. Its 12" (305) x 4" (100) rectangular dimension permits it to fit in gutters and other areas where a narrow drain capable of medium drainage flow or a rectangular top is preferred.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    Buttweld Outlet -BW (Specify Schedule -S05, -S10, -S40, -S80), (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    A-27 Carbon Steel Body - A27B, CF8M (Equivalent to Type 316) Stainless Steel - Body -316B
  • Product Type
    Drain
SubmittalSubmittal 9745 Drain (pdf)
View
Technical Drawings
9745 Drain (dwg)Gutter Drain [9745BW | Butt Weld Outlet; 9745T | Threaded Outlet]DWG20 KB
Literature / Videos
Stainless Steel Drainage Products Brochure (pdf)Stainless Steel Drainage ProductsPDF4 MB
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Order Guidelines for SpecialtiesOrder Guidelines for SpecialtiesPDF268 KB
Can't find what you are looking for? Get in touch

Avaialabe in the following outlet styles

9745BW | Butt Weld Outlet
9745T | Threaded Outlet
