Figure Number: 5810F
Contact a Representative

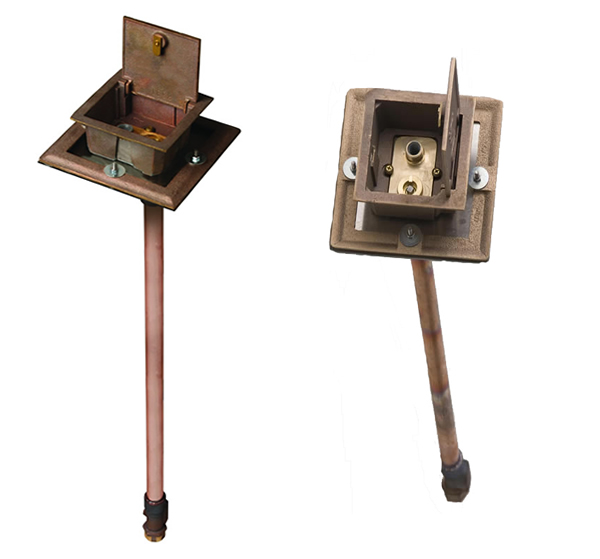

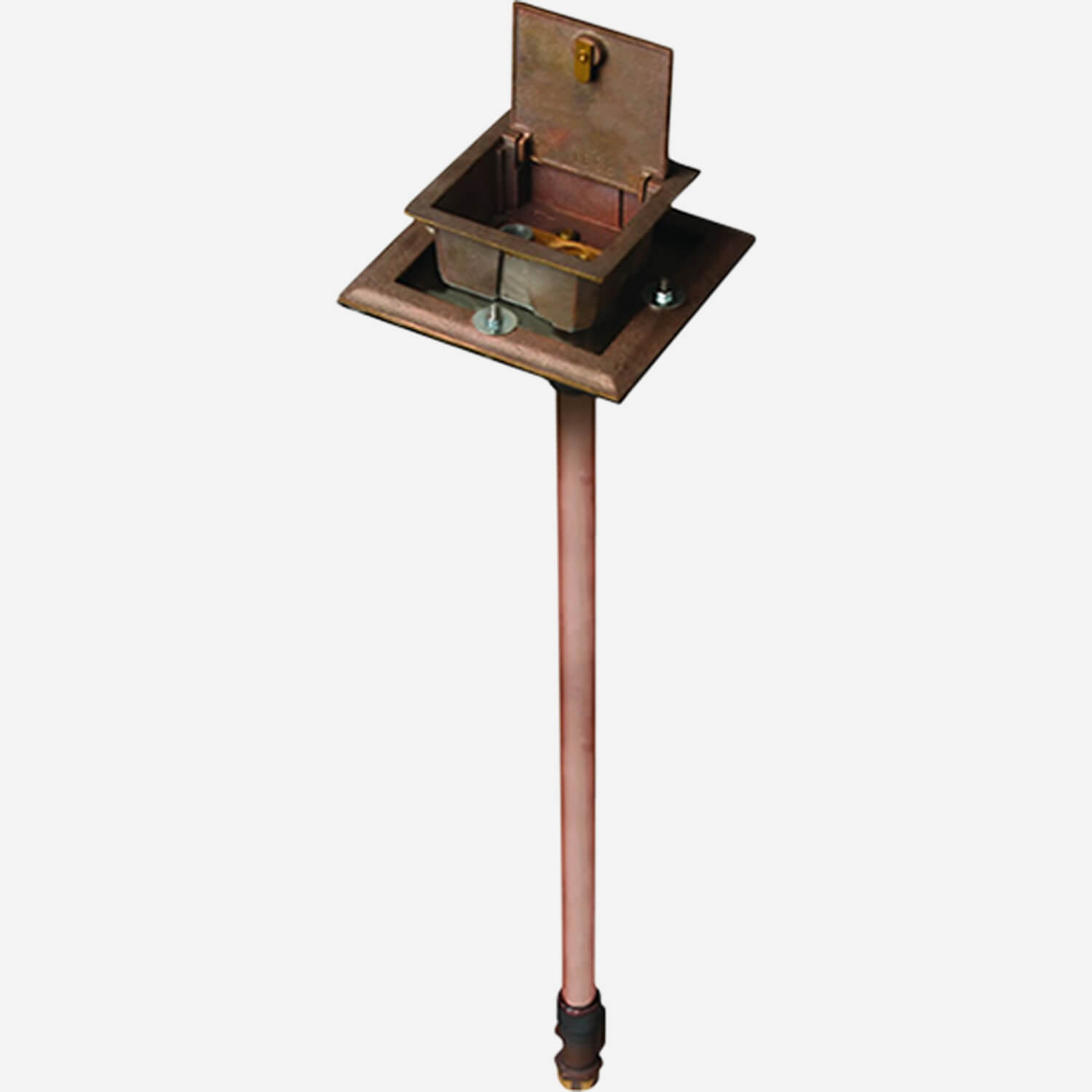

5810FNon-Freeze Boxed Ground Hydrants with Integral Flashing Flange and Clamp

Corrosion and tamper resistant, the 3/4" hose connection and faucet control of this hydrant are protected inside a hinged bronze lockbox. Designed with an integral flashing flange and clamp for attachment to waterproof floor coverings, its valve and water inlet extend below the frost line where a small hole in the valve housing allows any residual water to drain once the valve is closed, preventing rupture of the housing due to freezing conditions. This hydrant is operated by a removable "T" handle key stopping unauthorized use.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Variations
    1"(25) Hose Connection Adaptor -HC2, Less Drain Hole -LD, 1/8"(3) NPT Drain Hole -NV - in Box, 1/8"(3) NPT Drain Hole -NV - in Valve Housing, Mild Climate -SAP, Less Flashing Clamp -LFC, Cover Cast with Words "Water" -W, (2) 3/8” (10) Tappings -TAP
  • Optional Materials
    Nickel Bronze -NB - Box, Polished Bronze -PB - Box
  • Product Type
    Hydrant
SubmittalSubmittal 5810F, 5811F Hydrant
View
Technical Drawings
5810F, 5811F Hydrant CAD DrawingNon-Freeze Boxed Ground Hydrants with Integral Flashing Flange and Clamp [Figure 5810F | 3/4" Inlet; 5811F | 1" Inlet]DWG126 KB
Literature / Videos
MGI Corporate Brochure (pdf)Who we are, Our History, Morris Group International TodayPDF8 MB
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Hydrants For Commercial and Light Commercial Construction (pdf)Professional grade Hydrants for Commercial and light Commercial construction.PDF2 MB
Professional Grade Wall and Ground Hydrant Brochure (pdf)Brochure Professional Grade Wall and Ground HydrantPDF6 MB
Specifications for HydrantsSpecifications for HydrantsDOC178 KB
5810F, 5811F Hydrants (hi res jpg)Non-Freeze Boxed Ground Hydrants with Integral Flashing Flange and Clamp [Figure 5810F | 3/4" Inlet; 5811F | 1" Inlet]JPG69 KB
Technical Data of HydrantsTechnical Data of HydrantsPDF265 KB
Parts Order Guide for HydrantsParts Order Guide for HydrantsPDF3 MB
Order Guidelines for HydrantsOrder Guidelines for HydrantsPDF117 KB
Can't find what you are looking for? Get in touch
  • 5811F 1"(25) Inlet
